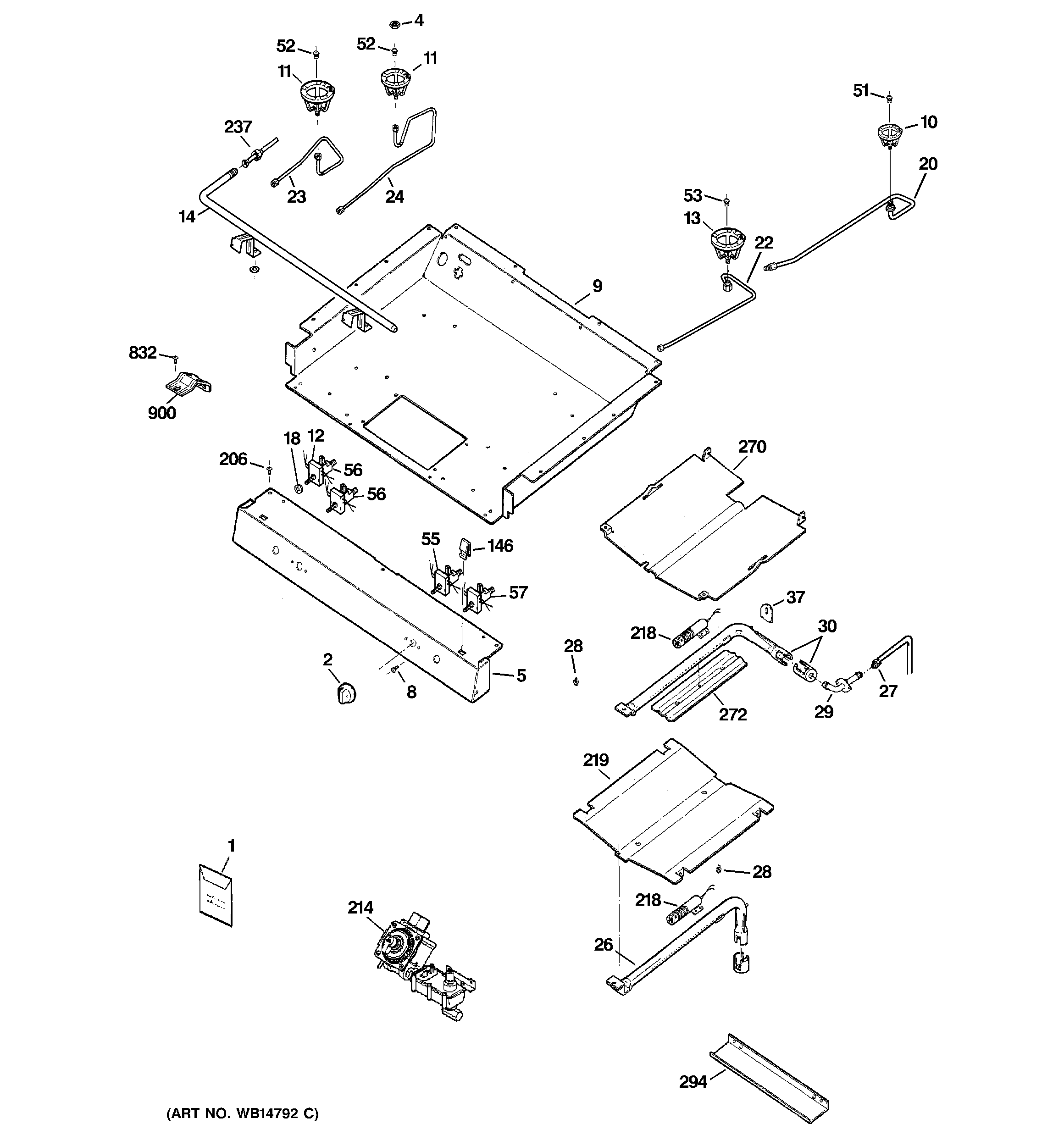

JGB290DEN3BB GAS & BURNER PARTS

JGB290DEN3BB GAS & BURNER PARTS

Written by

in

JGB290DEN3BB GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21391
1WB28K10556 GE Range Gas Valve Conversion Kit
1GEN 31-21413
1GEN 49-85165
2WB03K10218 GE Oven Control Knob
2WB03K10216 GE Oven Manifold Knob
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10714
5GEN WB36K10665
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12WB24K10042 GE Oven Rotary Switch
12GEN WB24K10037
13WB02K10362 GE Oven CKT Bracket MDM & L
14WB28K10457 GE Oven Manifold Pipe
18WB2K24 GE Oven Valve Cover
20WB28K10187 GE Oven Rear Orifice Holder
22WB28K10189 GE Oven Front Orifice Holder
23WB28K10190 GE Oven Left Front Orifice
24WB28K10188 GE Oven Rear Orifice H R 150N 9500
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10004
37WB34K14 GE Igniter Cover
51WB28K10031 GE Oven Orifice
52WB28K10032 GE Oven LP Orifice
53WB28K10023 GE Oven Orifice
55VALVE BURNER 270 RR
56VALVE BURNER 270
57WB21K10099 GE Oven Burner Valve
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10039 GE Oven Valve Control Assembly Nor. D
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X25364 GE Oven Manifold Supply Tube
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294GEN WB63K10040
832WB01K10043 GE Oven Screw
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
