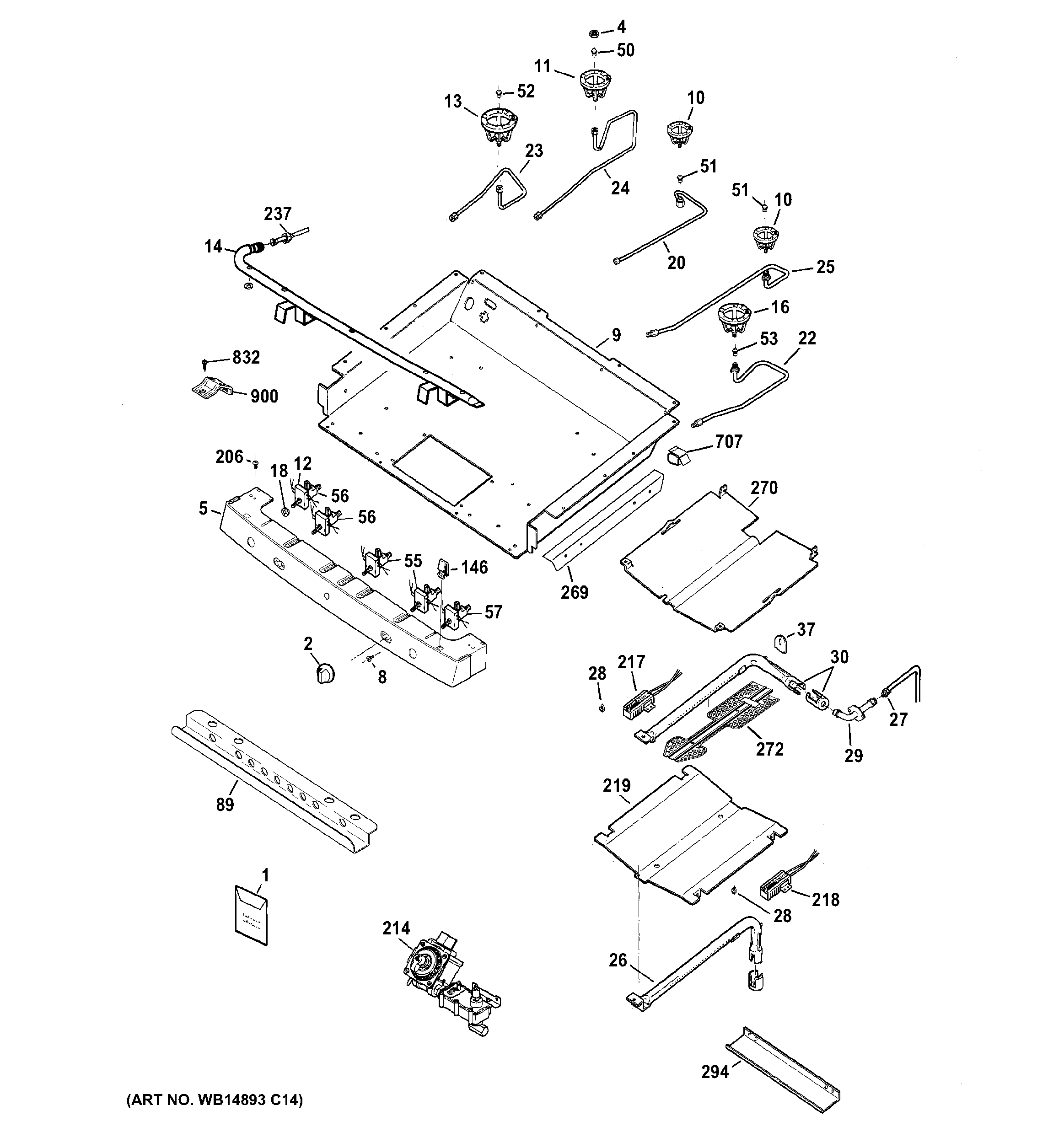

JGB296DET3WW GAS & BURNER PARTS

JGB296DET3WW GAS & BURNER PARTS

Written by

in

JGB296DET3WW GAS & BURNER PARTS

Products

PositionProduct
1GEN 49-85183-1
1GEN 31-14990-1
1GEN WB28K10823
1GEN 31-10803-1
2WB03K10216 GE Oven Manifold Knob
2WB03K10218 GE Oven Control Knob
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10953
5GEN WB36K10951
8WB01K10002 GE Oven Screw 8-32
9WB63K10190 GE Burner Box Assembly
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12SWITCHES & HARNESS
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10805
16WB02K10363 GE Oven Cooktop Bracket XL
18WB2K24 GE Oven Valve Cover
20NG ORIFICE & TUBE CNTRAL
22GEN WB28K10807
23GEN WB28K10810
24NG ORIFICE & TUBE LR
25GEN WB28K10811
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10067
37WB34K14 GE Igniter Cover
50WB28K10215 GE Oven Orifice
51WB28K10031 GE Oven Orifice
52WB28K10214 GE Oven Orifice
53GEN WB28K10839
55WB21K10113 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21K10117 GE Oven Burner Valve
89GEN WB36K10952
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10078 GE Oven Control Valve Assembly
217WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
269GEN WB35K10048
270WB49K10025 GE Range Deflector
272GEN WB49K10046
294GEN WB63K10040
707WB02K10267 GE Wire Clip
832WB01K10043 GE Oven Screw
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
