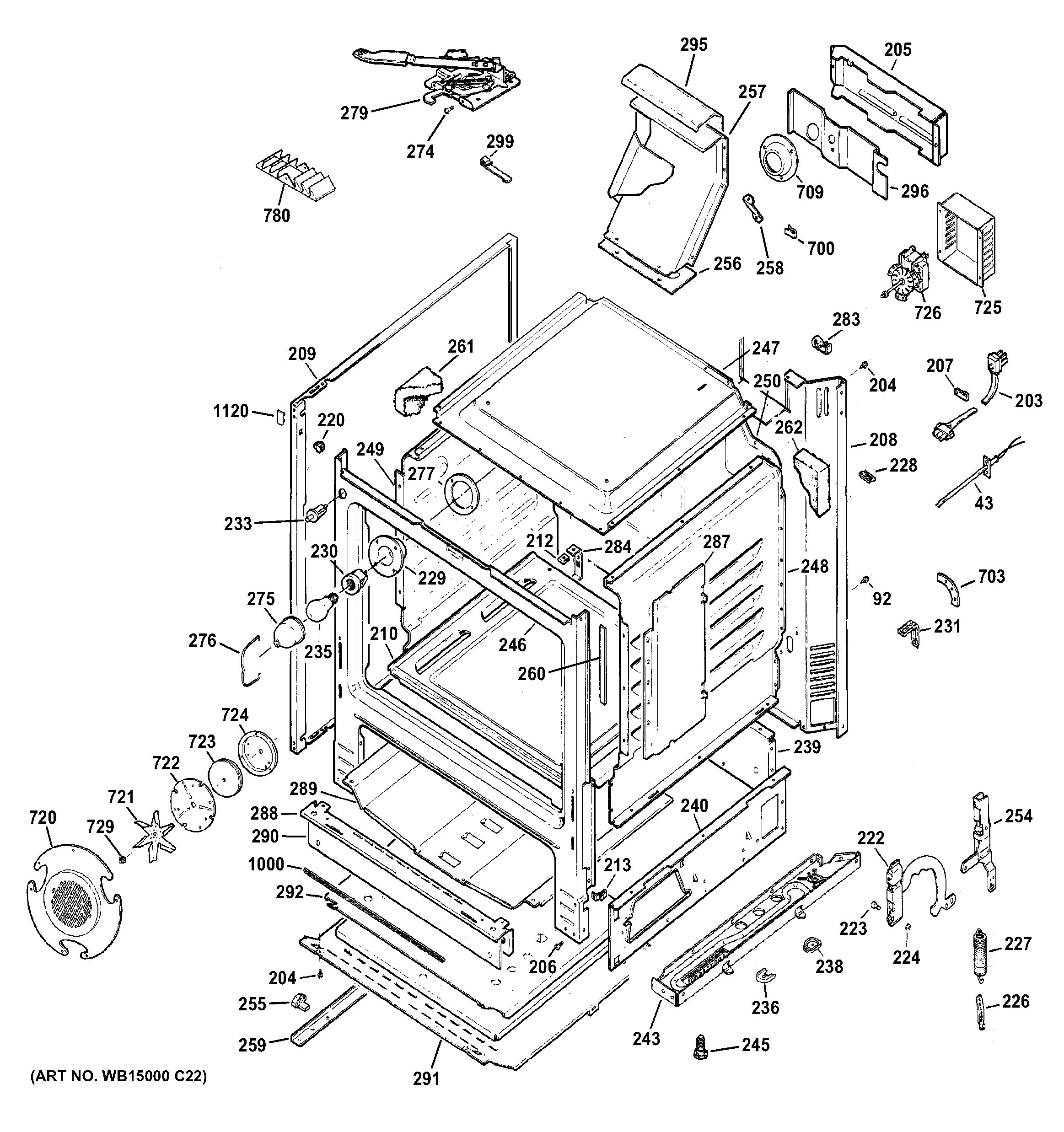

JGB296SET3SS BODY PARTS

JGB296SET3SS BODY PARTS

Written by

in

JGB296SET3SS BODY PARTS

Products

PositionProduct
43TEMPERATURE SENSOR
92WB1X1261 GE Oven Screw
203GEN WB18K10031
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
205GEN WB34K10124
206WB01K10091 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
208GEN WB63K10295
209GEN WB63K10290
209GEN WB63K10289
210WB35X37973 GE Oven Bottom and Deflector Assembly
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB02K0011
227GEN WB09K0005
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231GEN WB02K0012
233WB24K10068 GE Oven Plunger Switch
235RANGE ONLY 40W 120V APPL BULB
236WB02K10104 GE Base Spacer
238WB02K10270 GE Spacer Base
239WB63K10203 GE Oven Rear Broil Panel
240WB63K3 GE Oven Panel Side Broil
240GEN WB63K0002
243WB63K10232 GE Oven Support Base
243WB63K10233 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10191
247WB53K10015 GE Oven Top
248WB53K10034 GE Oven Right Side
249WB53K10035 GE Oven Left Side
250GEN WB53K10025
254SUPPORT ASM RIVET RT
254SUPPORT ASM RIVET LF
254GEN WB01K0053
255WB02K10163 GE Oven Drawer Support
256GEN WB32K0001
257WB38K10008 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259WB39K16 GE Oven Drawer Rail
260WB32K2 GE Oven Gasket Seal
261WB35K10210 GE Oven Insulation Wrap
262WB35K10168 GE Oven Back Insulation
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
279WB02K10136 GE Oven Motor Switch Assembly
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
287WB34K30 GE Radiation Guard
287GEN WB34K0031
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
290GEN WB34K0012
291WB63K16 GE Oven Bottom Guard
292WB63K10187 GE Bottom Inner Guard
295GEN WB35K10218
296WB34K13 GE Oven B Panel Cover
299GEN WB02K0038
700WB02K10380 GE Insulation Clip
703BRACKET OVEN
720WB34K10037 GE Oven Front Fan Cover
721WB2X8351 GE Oven Blade Fan
722WB34K10038 GE Oven Fan Cover Back
723WB35K10038 GE Fan Insulator Range
724WB02K10034 GE Range Fan Support
725GEN WB34K10125
726WB26K10003 GE Oven Convection Fan Motor
729WB02T10017 GE Oven Nut
780WB38K10022 GE Oven Diffuser Vent
1000WB04K10036 GE Oven Rubber Bumper Strip
1120WB02K10178 GE Oven Bumper
