JGB3000ER3BB CONTROL PANEL & COOKTOP

JGB3000ER3BB CONTROL PANEL & COOKTOP

Written by

in

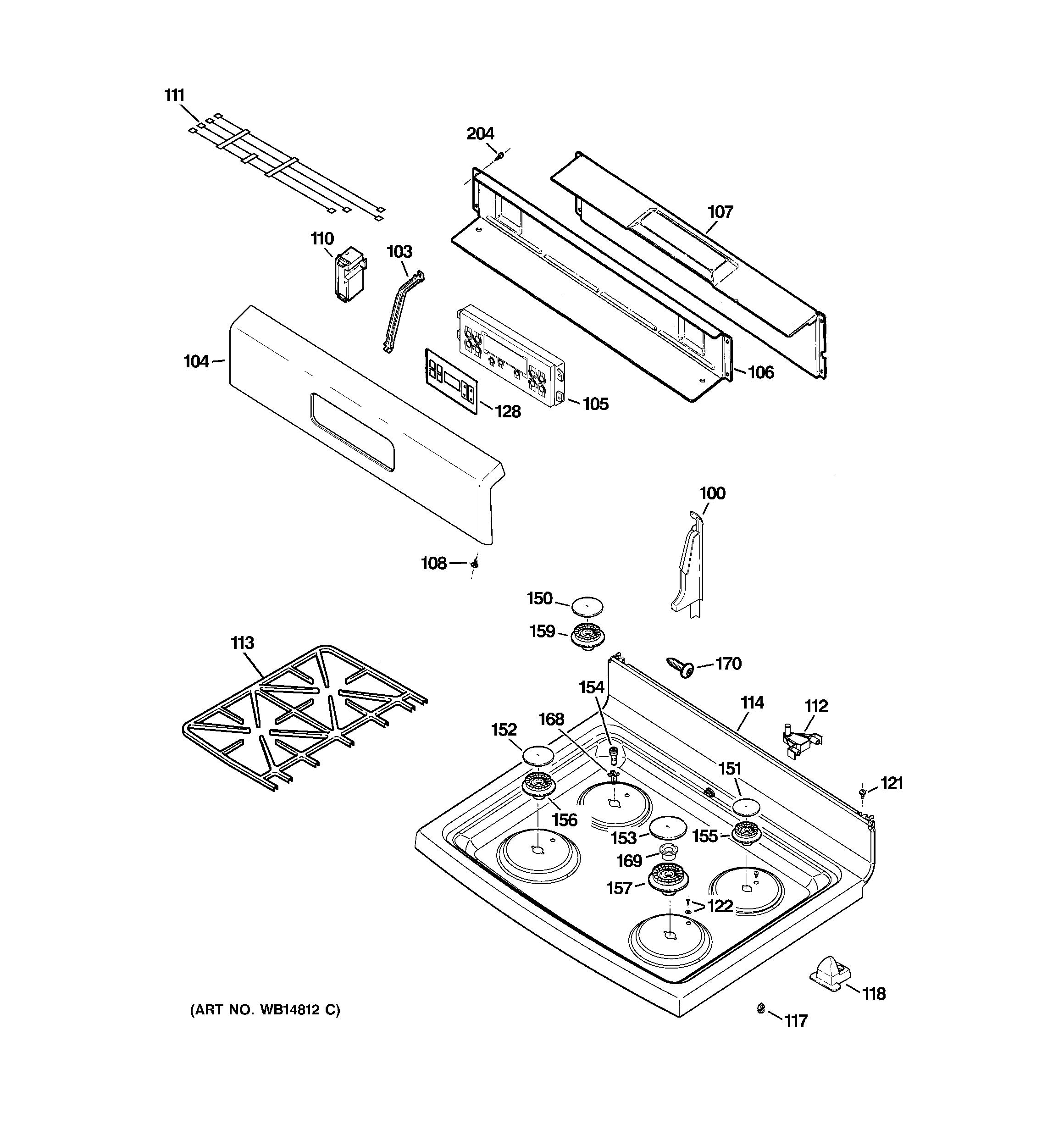

JGB3000ER3BB CONTROL PANEL & COOKTOP

Products

PositionProduct
100GEN WB07K10246
100GEN WB07K10247
103GEN WB02K10155
104GEN WB36K10651
105WB27K10355 GE Oven Electronic Control Board
105WB27K10354 GE Oven Gas Control
106GEN WB34K10092
107WB34K10129 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
110WB13K10029 GE Oven Spark Module
111GEN WB18K10039
112WB14K10003 GE Range Top Hinge
113WB31K10138 GE Oven Right Side Grate Cast
113GEN WB31K10139
114GEN WB62K10087
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
121GEN WB01K0078
121WB1K5119 GE Oven Screw
122GEN WB01K10008
128WB27K10264 GE Oven T09-B Overlay
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
154GEN WB13K10021
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10046
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
