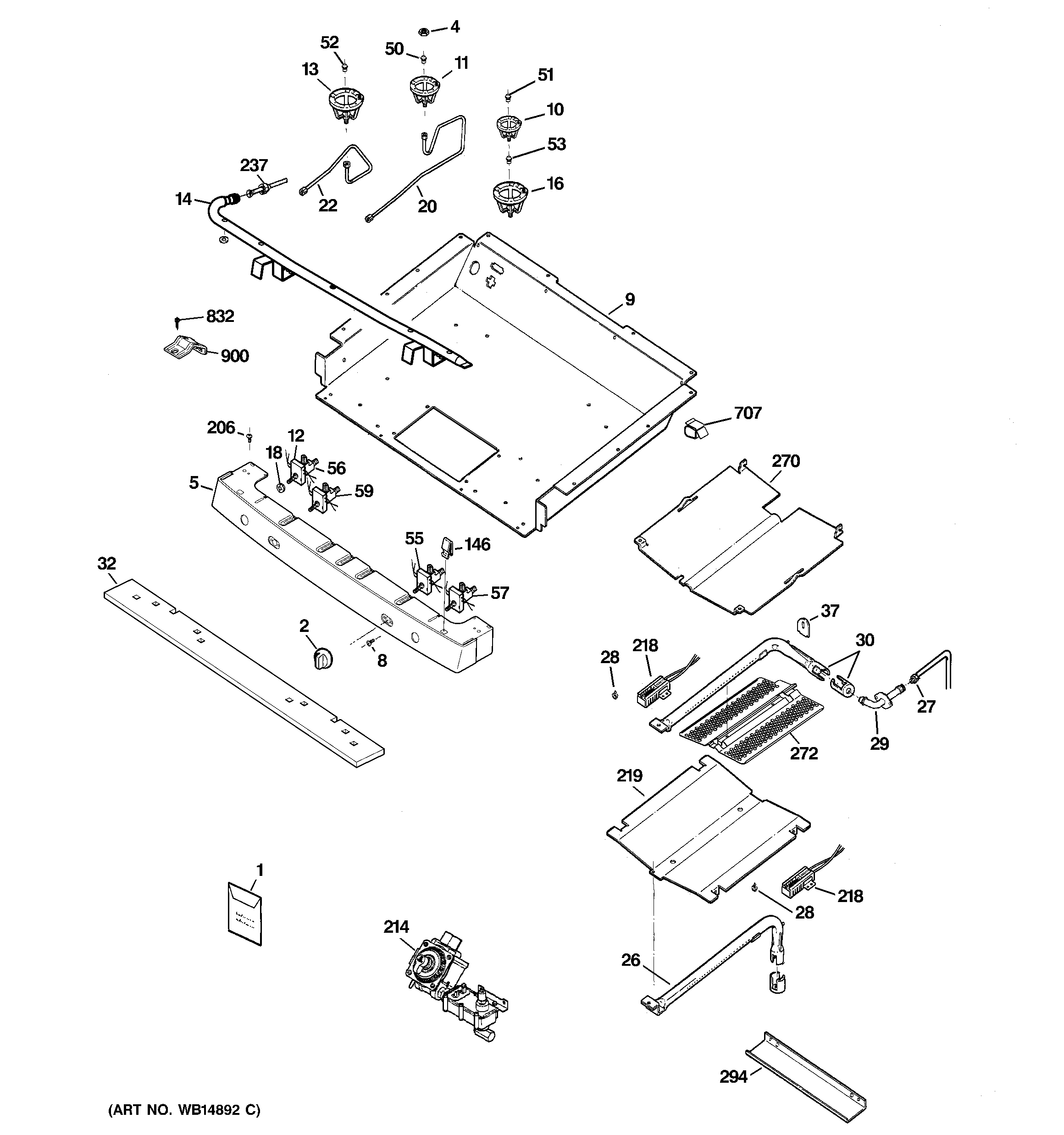

JGB300SEP2SS GAS & BURNER PARTS

Products

Position	Product
1	GEN 31-21473
1	GEN WB28K10613
1	GEN 49-85172
1	GEN 31-21452
1	WB02T10111 GE Cleaner Stainless Steel
2	WB03X43926 GE Burner Knob Kit
4	WB01K10037 GE Oven Economic Nut
5	GEN WB36K10740
8	WB01K10002 GE Oven Screw 8-32
9	WB63K10190 GE Burner Box Assembly
10	WB02K10360 GE Oven Circuit Bracket Small
11	WB02K10361 GE Oven Orifice Holder
12	GEN WB24K10074
13	WB02K10362 GE Oven CKT Bracket MDM & L
14	GEN WB28K10582
16	WB02K10082 GE Oven Bracket XL Cooktop
18	WB2K24 GE Oven Valve Cover
20	GEN WB28K10211
20	GEN WB28K10212
22	GEN WB28K10209
22	GEN WB28K10210
26	WB16K10035 GE Range Oven Burner Bar with Igniter
27	WB28K10168 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	GEN WB28K10308
30	GEN WB16K10067
32	INSULATION BURNER BOX
37	WB34K14 GE Igniter Cover
50	WB28K10215 GE Oven Orifice
51	WB28K10031 GE Oven Orifice
52	WB28K10214 GE Oven Orifice
53	ORIFICE SPUD LP RF
55	VALVE BURNER 270 RR
56	WB21K10099 GE Oven Burner Valve
57	GEN WB21K10116
59	VALVE BURNER 270
146	GEN WB02K0052
206	WB01K10091 GE Oven Screw
214	WB19K10041 GE Oven Safety Valve and Regulator Assembly
218	WB13K21 GE Oven Igniter with 7 Leads
218	WB13X25261 GE Oven Igniter Glowbar
219	OVEN DEFLECTOR
237	WB28X24772 GE Oven Gas Tube Connector
237	GEN WB28K10587
270	WB49K10025 GE Range Deflector
272	WB49K10045 GE Broil Shield
294	WB63K10054 GE Terminal Cover
707	WB02K10267 GE Wire Clip
832	WB01K10080 GE Oven Thermostat Screw
900	WB02K10297 GE Oven Valve Bracket
