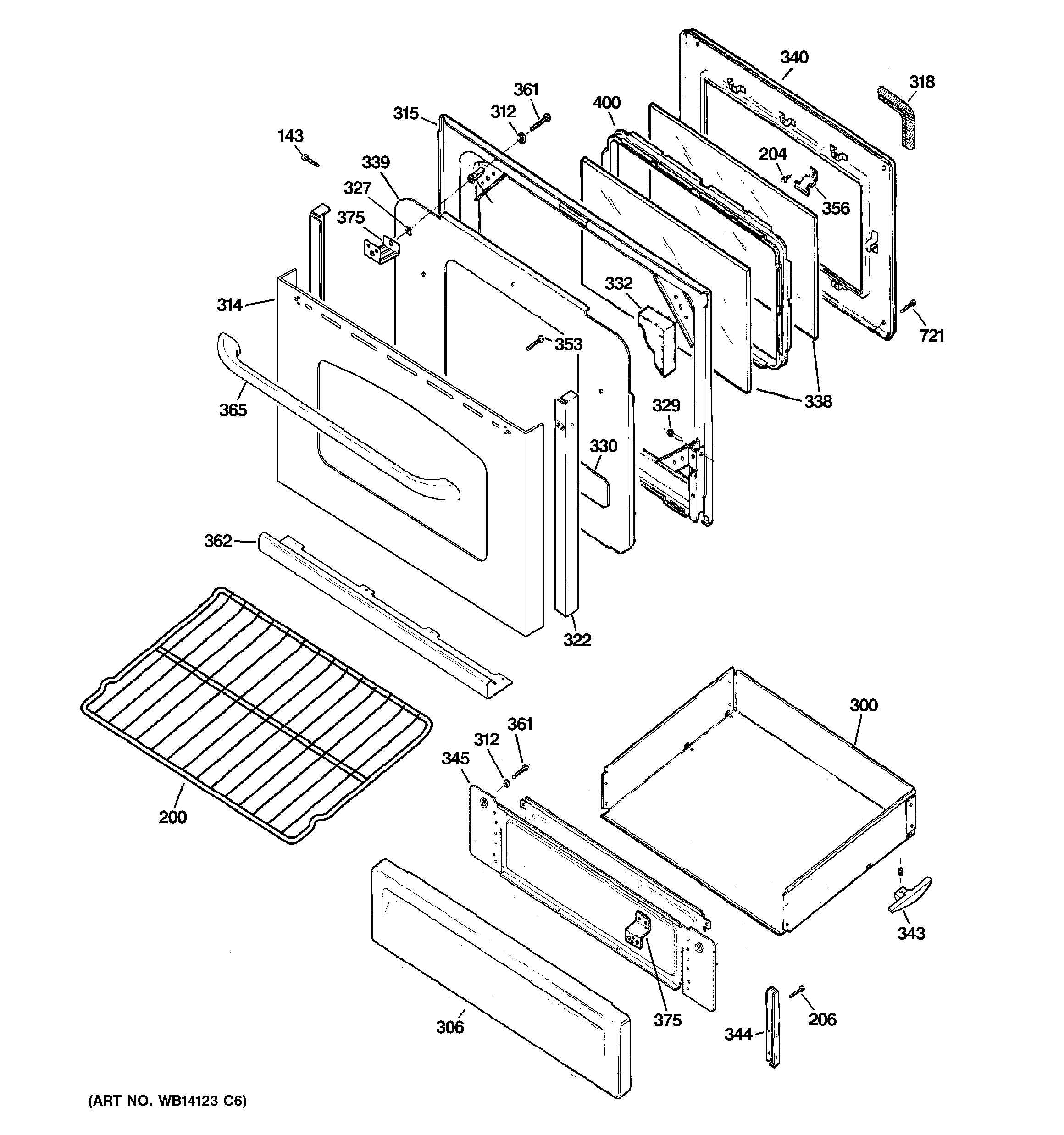

JGB300SEP5SS DOOR & DRAWER PARTS

JGB300SEP5SS DOOR & DRAWER PARTS

Written by

in

JGB300SEP5SS DOOR & DRAWER PARTS

Products

PositionProduct
143SCREW MTG END CAP
200OVEN RACK
204WB1K5062 GE Oven Screw
204GEN WB01K10111
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
300WB58K10015 GE Oven Drawer Body
300GEN WB58K10011
306WB63X21517 GE Oven Drawer Panel
312WB1X119D GE Oven Range Washer
314WB57K10109 GE Oven Glass Door
314GEN WB57K10144
315GEN WB55K10034
318WB35X29668 GE Oven Door Gasket Assembly
322GEN WB07K10016
322GEN WB07K10019
327WB01K10093 GE Oven Speednut
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332WB35K10150 GE Bottom Door Oven Insulation
332GEN WB35K10190
332WB35K10149 GE Oven Side Door Insulation
338CRYSTAL WINDOW
339WB56K10037 GE Door Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10068 GE Oven Drawer Liner
353WB01K10099 GE Screw 6-322
356GEN WB02K0056
361WB1K63 GE Oven Screw
365GEN WB15K10105
375GEN WB02K10268
400WB34K10087 GE Oven Window Spacer Assembly
721WB1X536 GE Oven Screw
