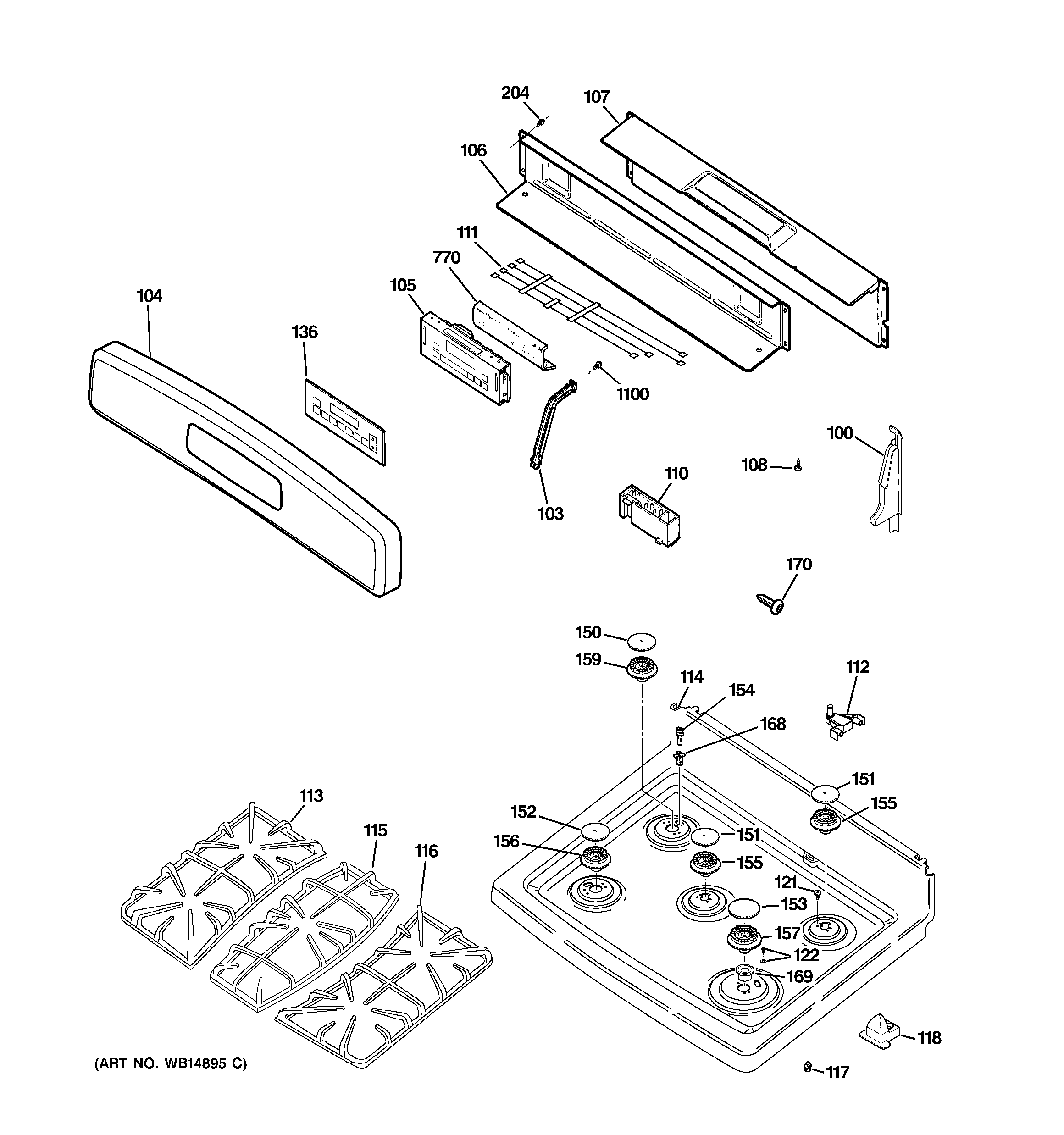

JGB400DEP2BB CONTROL PANEL & COOKTOP

JGB400DEP2BB CONTROL PANEL & COOKTOP

Written by

in

JGB400DEP2BB CONTROL PANEL & COOKTOP

Products

PositionProduct
100GEN WB07K10252
100GEN WB07K10247
100WB04K10021 GE Oven Front Frame Gasket
100GEN WB07K10246
100GEN WB07K10251
103GEN WB02K10155
104GEN WB36K10651
104GEN WB36K10653
105WB27K10354 GE Oven Gas Control
106GEN WB34K10092
107GEN WB34K10127
108WB1X5364 GE Oven Mounting Screw
110WB13X26360 GE Oven Spark Module
110WB01T10016 GE Oven Screw 8-18 AB Hex
111GEN WB18K10041
112WB14K10003 GE Range Top Hinge
112WB02K10179 GE Range Bumper
112WB02K10178 GE Oven Bumper
113GEN WB31K10231
114RANGETOP & BRKT ASM
114GEN WB62K10125
115GEN WB31K10230
116GEN WB31K10232
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
121GEN WB01K10008
122WB1K5119 GE Oven Screw
136GEN WB27K10329
136GEN WB27K10328
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
170GEN WB01X5874
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
