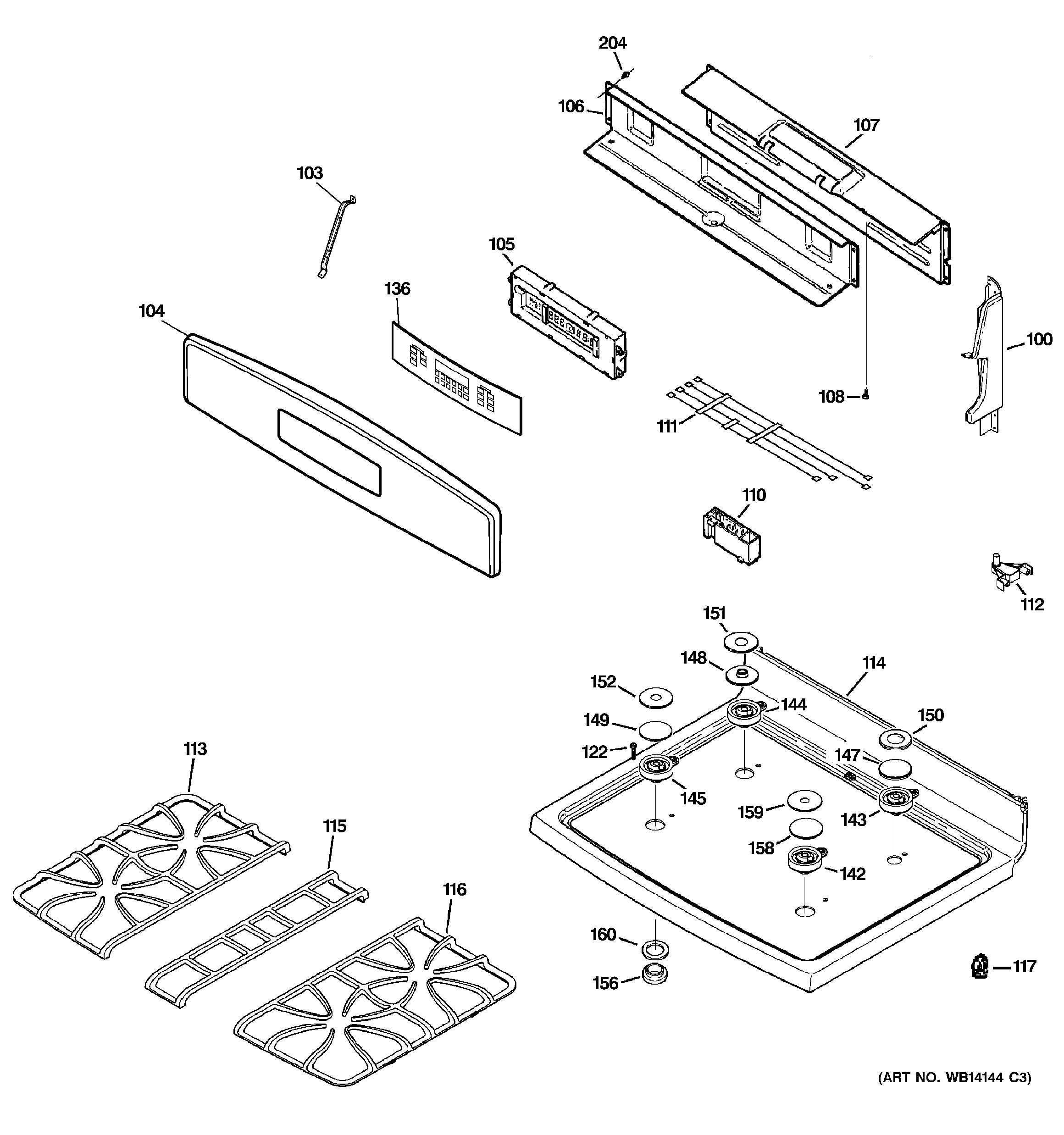

JGB428SER1SS CONTROL PANEL & COOKTOP

JGB428SER1SS CONTROL PANEL & COOKTOP

Written by

in

JGB428SER1SS CONTROL PANEL & COOKTOP

Products

PositionProduct
100GEN WB07K10247
100GEN WB07K10246
103GEN WB02K10155
104GEN WB36K10782
105WB27K10355 GE Oven Electronic Control Board
106GEN WB34K10092
107WB34K10129 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5716
110WB13K10029 GE Oven Spark Module
111GEN WB18K10039
112WB14K10003 GE Range Top Hinge
113GEN WB31K10095
114GEN WB61K10016
115GEN WB31K10094
116GEN WB31K10096
117WB14K10004 GE Oven Pin Locator
122GEN WB01K10021
136WB27K10264 GE Oven T09-B Overlay
143WB16T10031 GE Oven Small Burner Base
143SCREW MTG END CAP
144WB16T10030 GE Oven Medium Base Burner
145WB16T10033 GE Oven Large Base Burner
145WB16T10025 GE Oven Large Base Burner
147WB16K10036 GE Oven Small Burner Head
148BURNER GASKET D
148WB16T10029 GE Burner Head
149GEN WB16K10033
150GEN WB13T10034
151BURNER CAP BK MED
152GEN WB13T10036
156GEN WB04K10011
158GEN WB16K10034
159GEN WB13T10033
159WB16T10032 GE Oven Front Base Burner
160GEN WB04K10005
160GEN WB02K10063
160GEN WB02K10069
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
