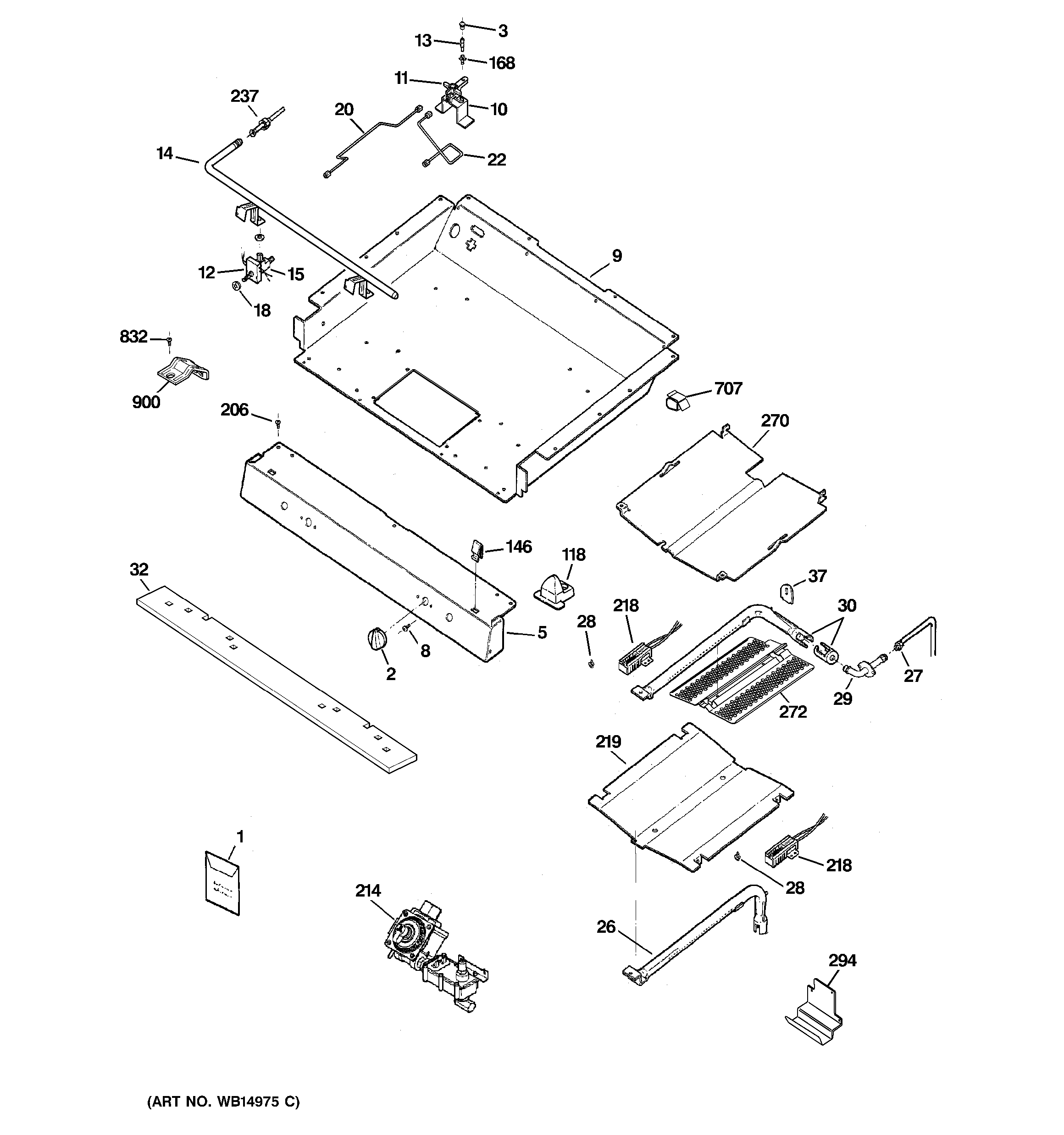

JGB428SER1SS GAS & BURNER PARTS

JGB428SER1SS GAS & BURNER PARTS

Written by

in

JGB428SER1SS GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21482
1WB02T10111 GE Cleaner Stainless Steel
1GEN 49-85179
1GEN 31-21473
1PM10X310 GE Cerama Bryte Cooktop Cleaner
2WB03X43926 GE Burner Knob Kit
3GEN WB28K10145
3GEN WB28K10146
3GEN WB28K10147
3GEN WB28K10152
3GEN WB28K10151
3GEN WB28K10150
3GEN WB28K10148
5GEN WB36K10910
8WB01K10002 GE Oven Screw 8-32
9BOX BURNER SP
10GEN WB02K10035
11GEN WB28K10142
11GEN WB28K10149
11ORIFICE HOLDER BKT LARGE
11BURNER HOLDER BKT SMALL
12GEN WB24K10074
13WB13T10073 GE Oven Igniter
14GEN WB28K10582
15VALVE BURNER 270 RR
15WB21K10099 GE Oven Burner Valve
15VALVE BURNER 270
15GEN WB21K10116
18WB2K24 GE Oven Valve Cover
20GEN WB28K10139
20GEN WB28K10140
22GEN WB28K10138
22GEN WB28K10137
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10308
30GEN WB16K10067
32INSULATION BURNER BOX
37WB34K14 GE Igniter Cover
118GEN WB14K10005
118WB02K10104 GE Base Spacer
146GEN WB02K0052
168WB01K10112 GE Range Oven Electrode Clip
206WB01K10091 GE Oven Screw
214WB19K10041 GE Oven Safety Valve and Regulator Assembly
218WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237GEN WB28K10587
237WB28X24772 GE Oven Gas Tube Connector
270WB49K10025 GE Range Deflector
272WB49K10045 GE Broil Shield
294GEN WB63K10040
707WB02K10267 GE Wire Clip
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
