JGB500DEP3WW CONTROL PANEL & COOKTOP

JGB500DEP3WW CONTROL PANEL & COOKTOP

Written by

in

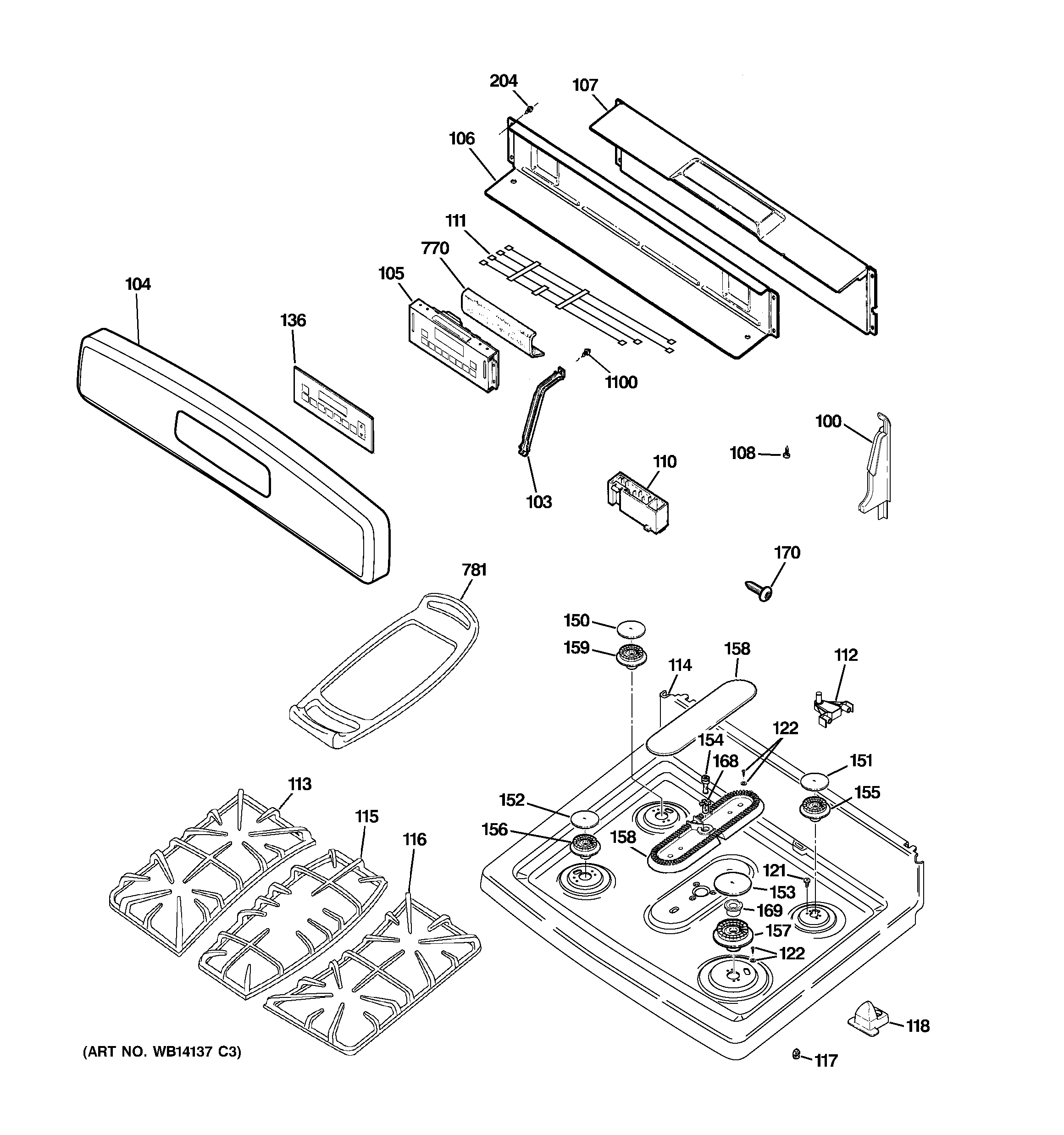

JGB500DEP3WW CONTROL PANEL & COOKTOP

Products

PositionProduct
100GEN WB07K10252
100GEN WB07K10251
103GEN WB02K10155
104GEN WB36K10653
105WB27K10355 GE Oven Electronic Control Board
106GEN WB34K10092
107WB34K10129 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
110WB13X26360 GE Oven Spark Module
111GEN WB18K10041
112WB14K10003 GE Range Top Hinge
113WB31K10187 GE Oven Cast Grate Left
114GEN WB62K10111
115GEN WB31K10189
116GEN WB31K10188
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
121GEN WB01K10008
121GEN WB01K0078
122WB1K5119 GE Oven Screw
136WB27K10265 GE Overlay T09-B
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158GEN WB16K10053
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
170GEN WB01X5874
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
781WB31K10217 GE Oven Griddle Kit
1100WB01T10016 GE Oven Screw 8-18 AB Hex
