JGB600DET2BB CONTROL PANEL & COOKTOP

JGB600DET2BB CONTROL PANEL & COOKTOP

Written by

in

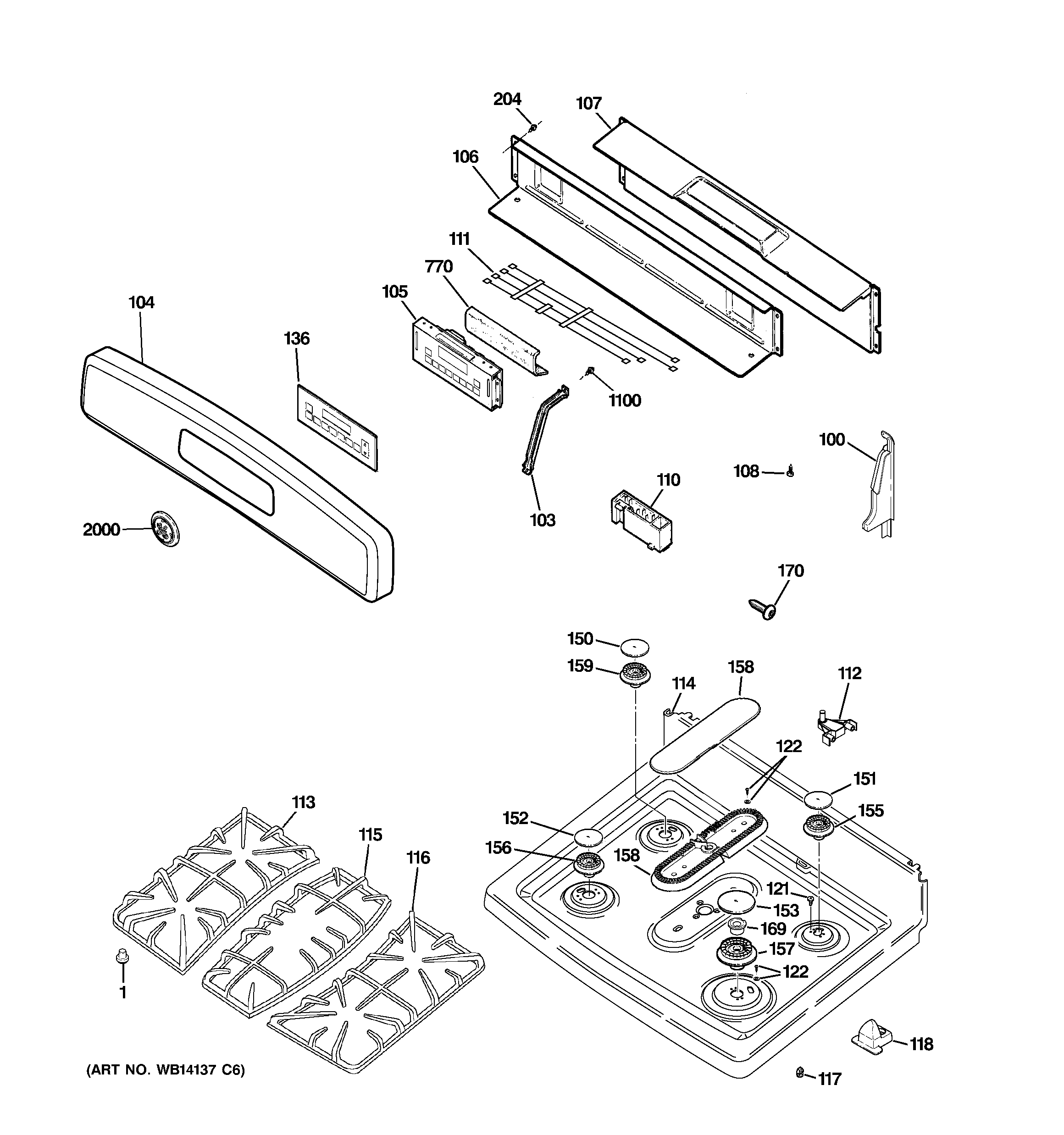

JGB600DET2BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB28K10824
1GEN 31-14991-1
1GEN 31-10804-1
1GEN 49-85183-1
1GEN WB02K0101
100GEN WB07K10252
100GEN WB07K10251
100GEN WB07K10246
100GEN WB07K10247
103GEN WB02K10155
104GEN WB36K10957
104GEN WB36K10956
105WB27K10319 GE Oven Control Board
106WB34K10123 GE Oven Back Cover Assembly
107WB34K10129 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
110WB13X26360 GE Oven Spark Module
111IGNIT HARNESS HV
112WB14K10003 GE Range Top Hinge
113WB31K10187 GE Oven Cast Grate Left
114GEN WB62K10151
114GEN WB62K10152
115GEN WB31K10189
116GEN WB31K10188
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
118WB02K10104 GE Base Spacer
121GEN WB01K0078
122WB01K10106 GE Oven Circuit Screw
122WB1K5119 GE Oven Screw
136WB27K10407 GE Oven Overlay
136GEN WB27K10408
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158GEN WB16K10053
159WB16K10055 GE Oven Burner Base
169GEN WB16K10045
170GEN WB01X5716
170GEN WB01X5874
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
1100WB01T10016 GE Oven Screw 8-18 AB Hex
2000WB02T10359 GE Oven Badge
