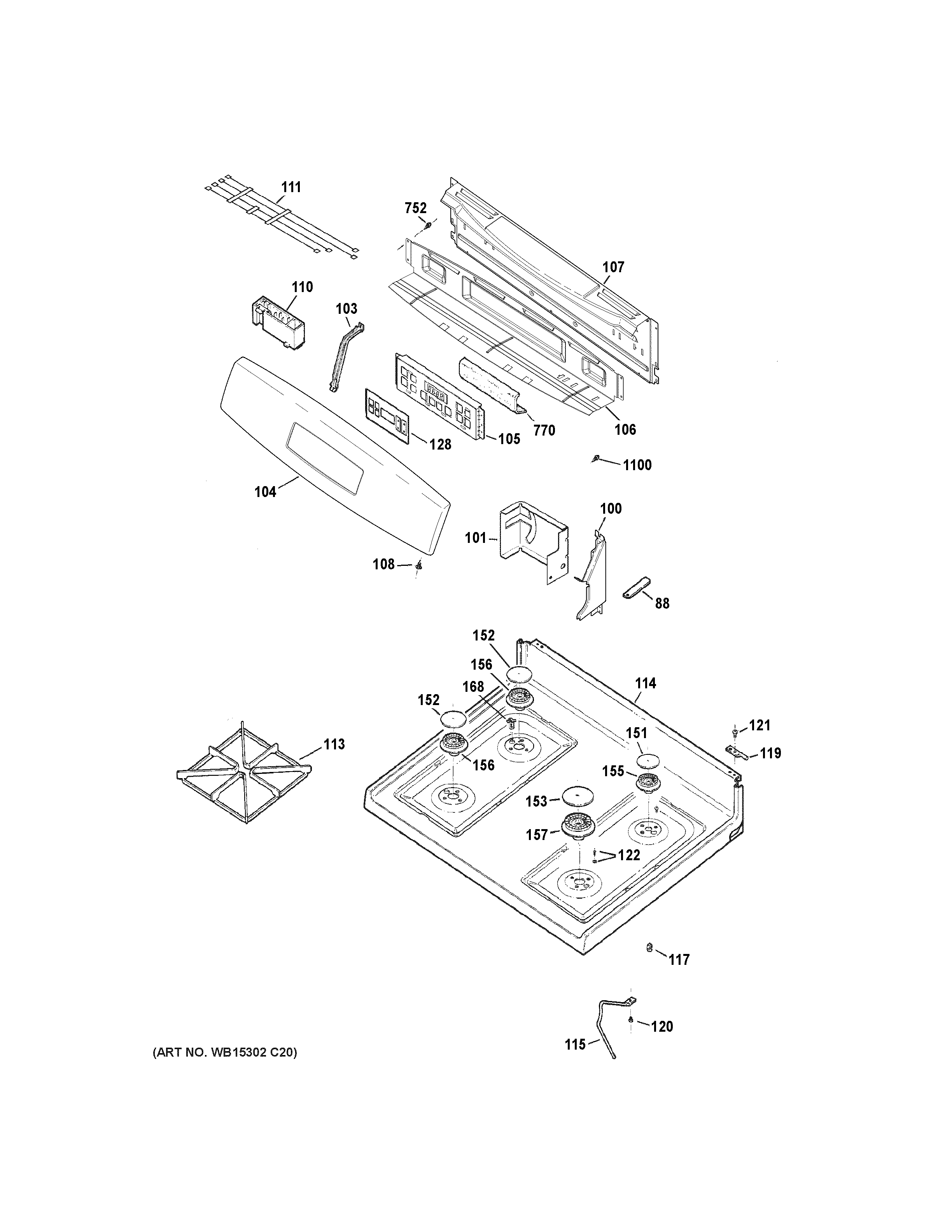

JGB620DEF2BB CONTROL PANEL & COOKTOP

JGB620DEF2BB CONTROL PANEL & COOKTOP

Written by

in

JGB620DEF2BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
100WB07X20197 GE Range Left End Support
100WB07X20194 GE Range Right End Support
101WB37X20196 GE Cooktop Bracket
101WB37X20193 GE Cooktop Bracket
103WB02K10150 GE Oven Control Bracket
104WB36X20227 GE Oven Control Trim
105WB27X44729 GE Gas Oven Control
106WB34X26858 GE Oven Upper Back Cover
107WB34K10129 GE Lower Back Cover
110WB13K10029 GE Oven Spark Module
111WB18K10098 GE Oven Igniter Switch and Harness Assembly
113WB31X20643 GE Oven Burner Grate
114WB62X20225 GE Range Top Surface Burner
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122WB01X24460 GE Oven Screw
128OVERLAY T09
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10023 GE Oven Burner Cap Assembly
153WB29K10024 GE Burner Cap Oven
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
752WZ4X345D GE Screw Package 12 C92
770WB35K10040 GE Oven Insulation Control
1100WB1K5062 GE Oven Screw
