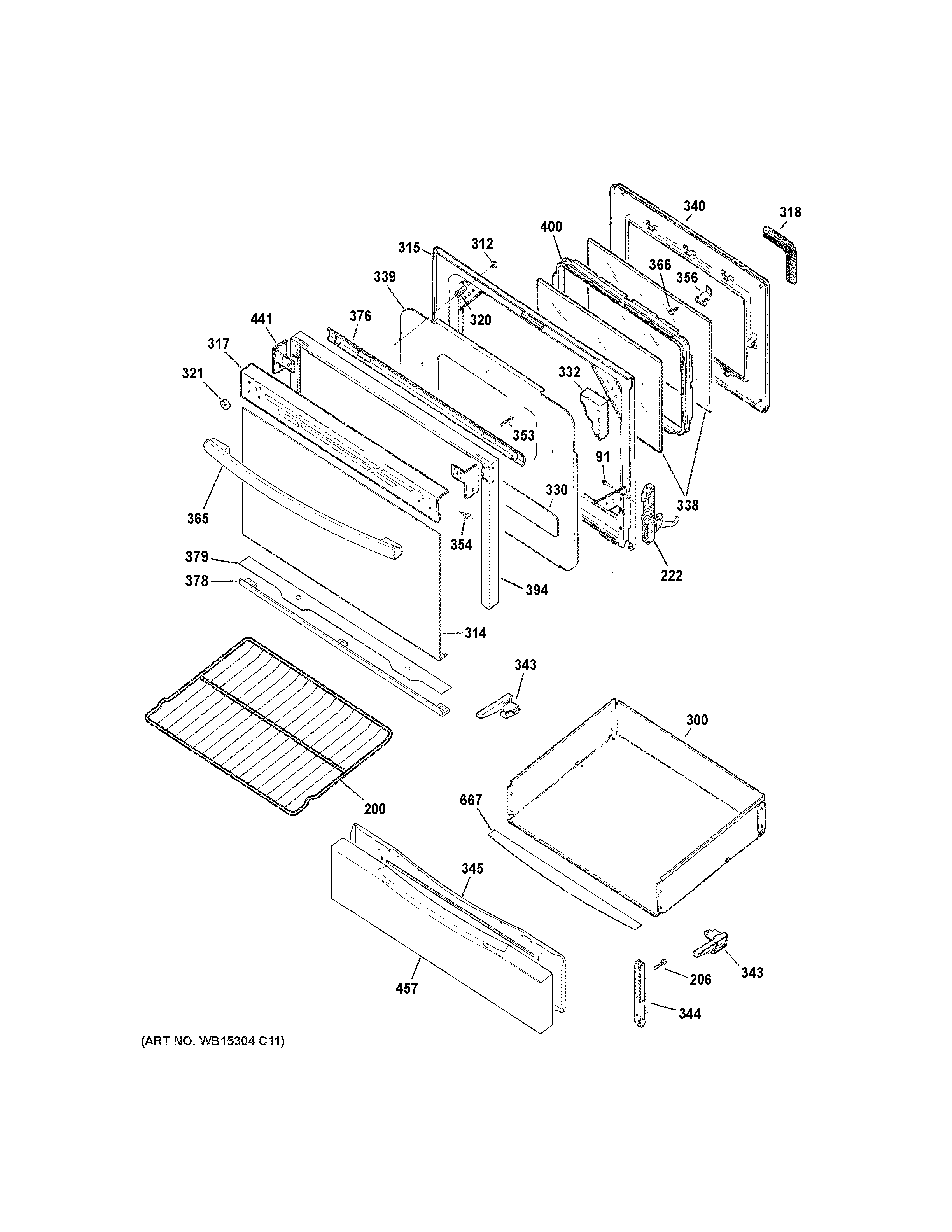

JGB620DEF2BB DOOR & DRAWER PARTS

JGB620DEF2BB DOOR & DRAWER PARTS

Written by

in

JGB620DEF2BB DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
206WB01K10091 GE Oven Screw
222HINGE DOOR
300WB58K10015 GE Oven Drawer Body
312WB1X119D GE Oven Range Washer
314WB57X21391 GE Oven Outer Door Panel
315WB56X20537 GE Oven Door Weld Liner
317WB7K403 GE Oven Top Door Trim
318WB35X29668 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
321WB1K10 GE Oven Grommet Handle
330GEN WB35K0022
332WB35K10149 GE Oven Side Door Insulation
332WB35K10150 GE Bottom Door Oven Insulation
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10068 GE Oven Drawer Liner
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
365WB15T10213 GE Oven Handle LE-BK
366WB1X536 GE Oven Screw
376WB35K23 GE Heater Deflector
378WB56X21576 GE Oven Deflector Door
379DEFLECTOR BOTTOM DOOR
394WB07X20355 GE Door Trim
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07X7182
441GEN WB07X7181
457WB56X20396 GE Oven Drawer Panel
667WB35X21686 GE Door Insulation
