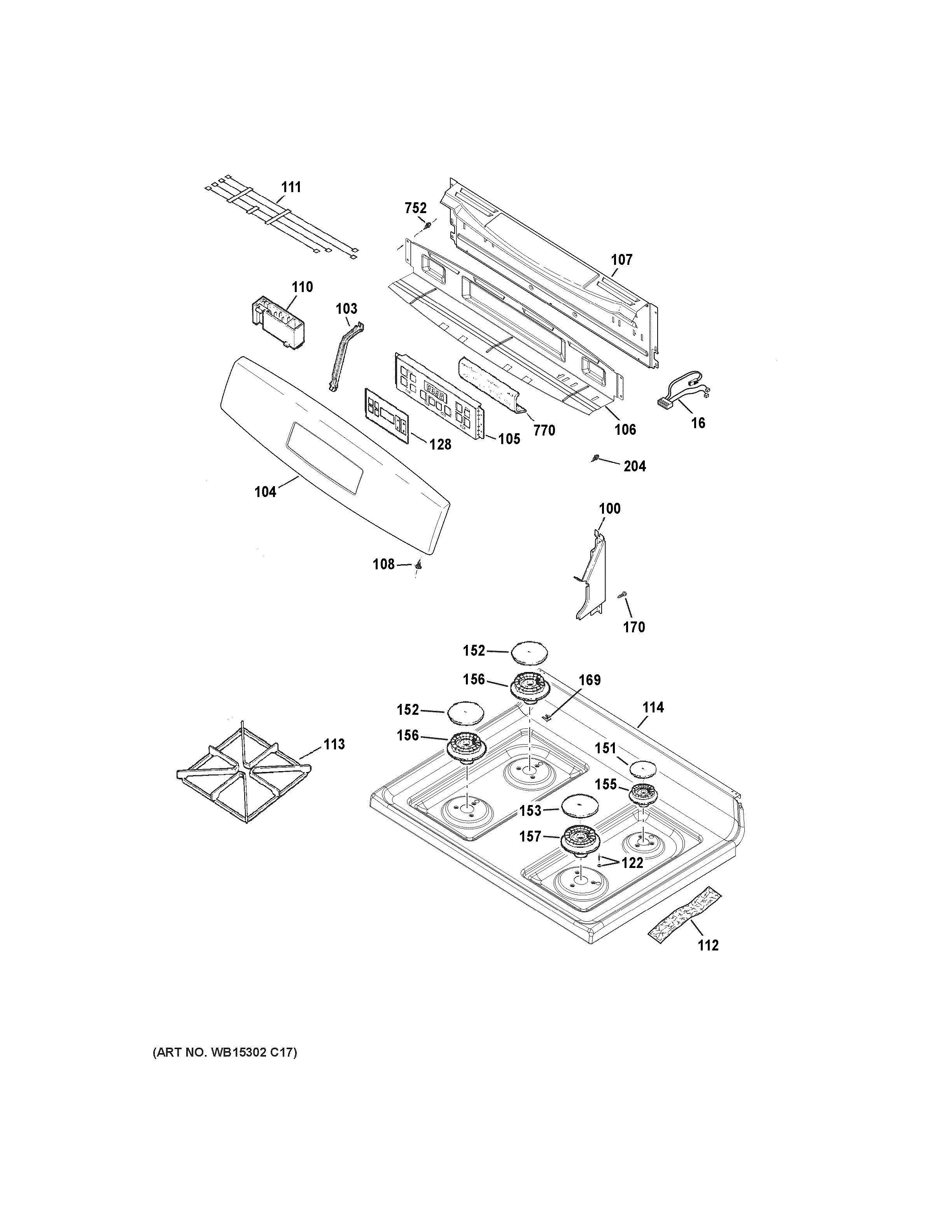

JGB635DEK3BB CONTROL PANEL & COOKTOP

Products

Position	Product
16	WB18X32416 GE Control Harness
100	WB07X20194 GE Range Right End Support
100	WB07X20197 GE Range Left End Support
103	WB02K10150 GE Oven Control Bracket
104	WB36X20227 GE Oven Control Trim
105	WB27X44729 GE Gas Oven Control
106	WB34X26858 GE Oven Upper Back Cover
107	WB34K10129 GE Lower Back Cover
108	GEN WB01X5716
110	WB13X24323 GE Oven Ignition Module
111	WB18X26607 GE Oven Spark Electrode
112	FOIL COOKTOP
113	WB31X20643 GE Oven Burner Grate
114	WB62X31581 GE Range Top Black
122	WB01X24735 GE Oven CKT Screw
128	RANGE CONTROL PANEL – BLACK
151	WB16X28654 GE Oven Burner Cap Cover
152	WB29K10023 GE Oven Burner Cap Assembly
153	WB29K10024 GE Burner Cap Oven
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	WB16X24724 GE Oven Medium Burner
157	BURNER LARGE V2
169	WB02X24976 GE Oven Igniter Clip V2
170	WB01T10016 GE Oven Screw 8-18 AB Hex
204	WB1K5062 GE Oven Screw
752	WZ4X345D GE Screw Package 12 C92
770	WB35K10040 GE Oven Insulation Control
