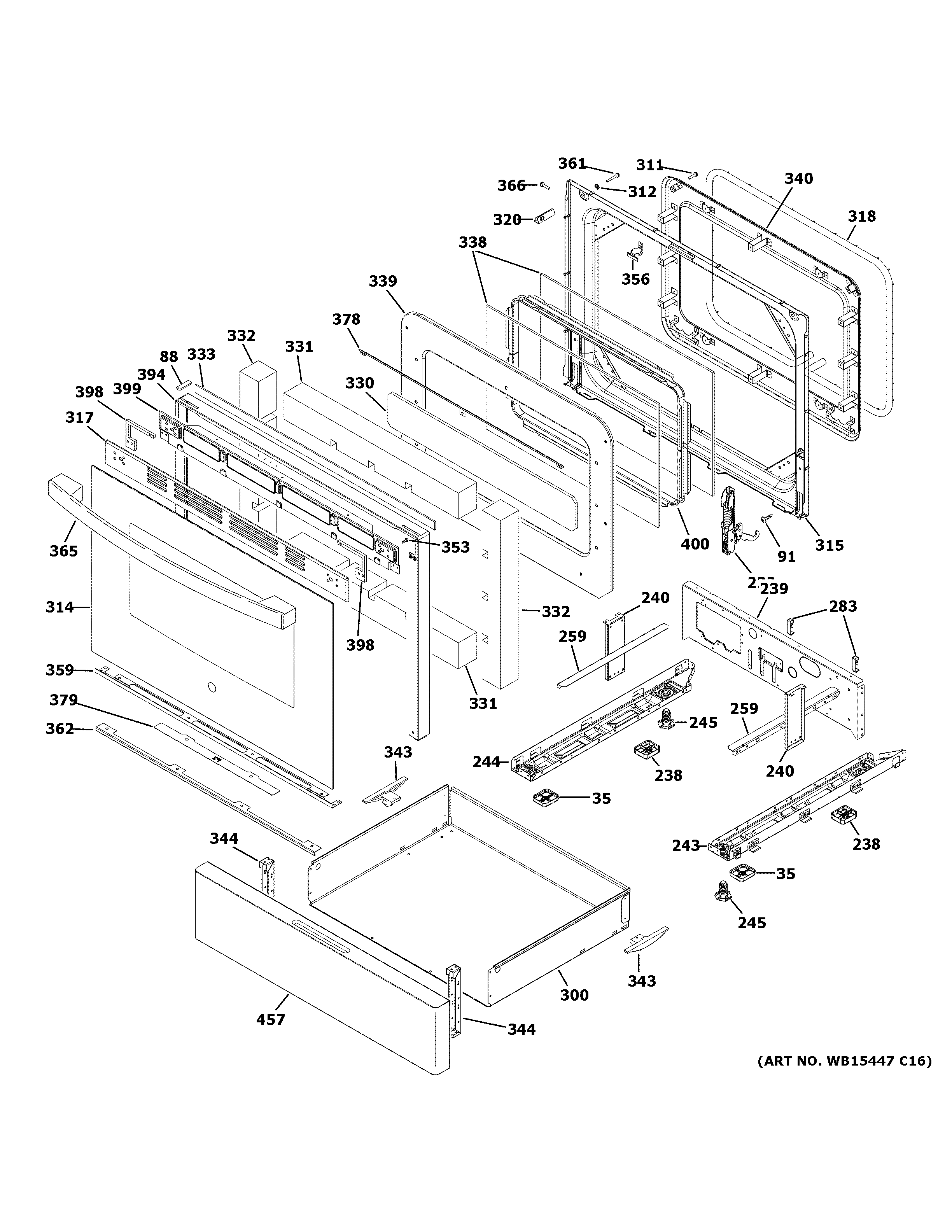

JGB660DEJ5BB DOOR & DRAWER PARTS

JGB660DEJ5BB DOOR & DRAWER PARTS

Written by

in

JGB660DEJ5BB DOOR & DRAWER PARTS

Products

PositionProduct
35WB16X20448 GE Oven Spacer Base
88GEN WB02K0062
91WB01T10008 GE Oven Screw 10-32
222HINGE DOOR
238WB16X20449 GE Oven Base Spacer
239WB63K10203 GE Oven Rear Broil Panel
240WB63X24859 GE Oven Cavity Bracket
243WB63X20215 GE Oven Support Base
244WB63X20216 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
259WB39K16 GE Oven Drawer Rail
283WB02X21679 GE Oven Wire Clip
300WB58K10015 GE Oven Drawer Body
311BUMPER
312WB1X119D GE Oven Range Washer
314WB56X25503 GE Oven Glass Door
315WB56X24855 GE Oven Door Liner Weld
317WB07X24847 GE Oven Vent Trim
318WB35X29668 GE Oven Door Gasket Assembly
320WB02K10156 GE Oven Spacer
330GEN WB35K0022
331WB35K10150 GE Bottom Door Oven Insulation
332WB35K10149 GE Oven Side Door Insulation
333WB35X21579 GE Front Door Insulation
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K12 GE Oven Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB2K68 GE Oven Drawer Glide
344WB02X24742 GE Oven Drawer Bracket
353WB01K10012 GE Oven Screw 8-22 PL 1HX
356GEN WB02K0056
359WB07K10232 GE Oven Bottom Trim Assembly
361WB01X37565 GE Screw 10-32
362WB07X20288 GE Oven Barrier Door
365WB15X35072 GE Black Handle and Endcap
366WB1X536 GE Oven Screw
378WB56X21576 GE Oven Deflector Door
379WB56X25504 GE Bottom Door Deflector
394WB07X25502 GE Door Oven Trim
398WB35X28971 GE Washer Side Door Insulation
399WB56X20809 GE Oven Backer Panel
400WB34K10087 GE Oven Window Spacer Assembly
457WB56X24731 GE Drawer Panel
