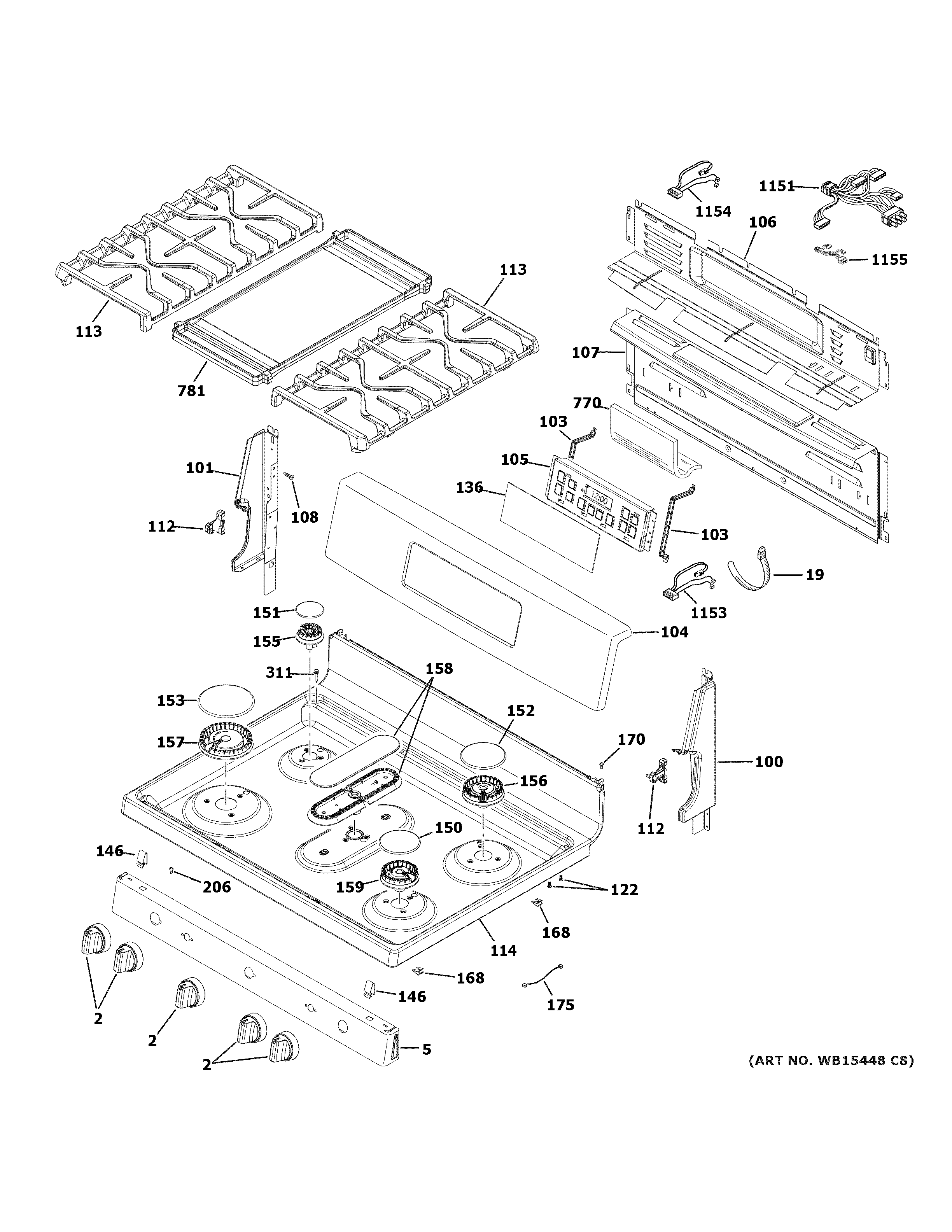

JGB660DP1BB CONTROL PANEL & COOKTOP

JGB660DP1BB CONTROL PANEL & COOKTOP

Written by

in

JGB660DP1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
2WB03X24759 GE Assembly Oven Knob
5WB36X24739 GE Oven Manifold Panel
19BLACK CABLE TIE 5 1/2 LO
100WB07X24733 GE Range Right End Support
101WB07X24732 GE Range Left End Support Black
103WB34X38000 GE Control Bracket
104WB36X37977 GE Black Backguard Assembly
105WB27X48036 GE Control for RC19 (Flashed)
106WB34X24745 GE Oven Upper Back Cover
107WB34X24746 GE Oven Back Cover Lower
108WB1X5364 GE Oven Mounting Screw
112WB14K10003 GE Range Top Hinge
113GRATE ASM
114WB62X24778 GE Range Top and Bracket Assembly
122WB01X24735 GE Oven CKT Screw
136WB07X38058 GE Black Overlay
146WB02X26569 GE Range Top Clip
150WB29K10023 GE Oven Burner Cap Assembly
151WB16X28654 GE Oven Burner Cap Cover
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
155WB16X24721 GE Oven Range Small Cooktop Burner V2
156BURNER LARGE V2
157WB16X24722 GE Oven Gas Range XL Surface Burner
158WB16K10076 GE Oven Oval Burner Assembly
159WB16X24724 GE Oven Medium Burner
168WB02X24976 GE Oven Igniter Clip V2
170GEN WB01X5716
175WB18X24748 GE Oven Ground Harness
206WB01K10091 GE Oven Screw
311BUMPER
770WB35K10040 GE Oven Insulation Control
781GRIDDLE
1151WB18X38057 GE Harness Master
1153WB18X38049 GE Harness Interface
1154WB18X38061 GE Control Harness
1155WB18X38060 GE Power Line Harness
