JGB700SEJ5SS CONTROL PANEL & COOKTOP

JGB700SEJ5SS CONTROL PANEL & COOKTOP

Written by

in

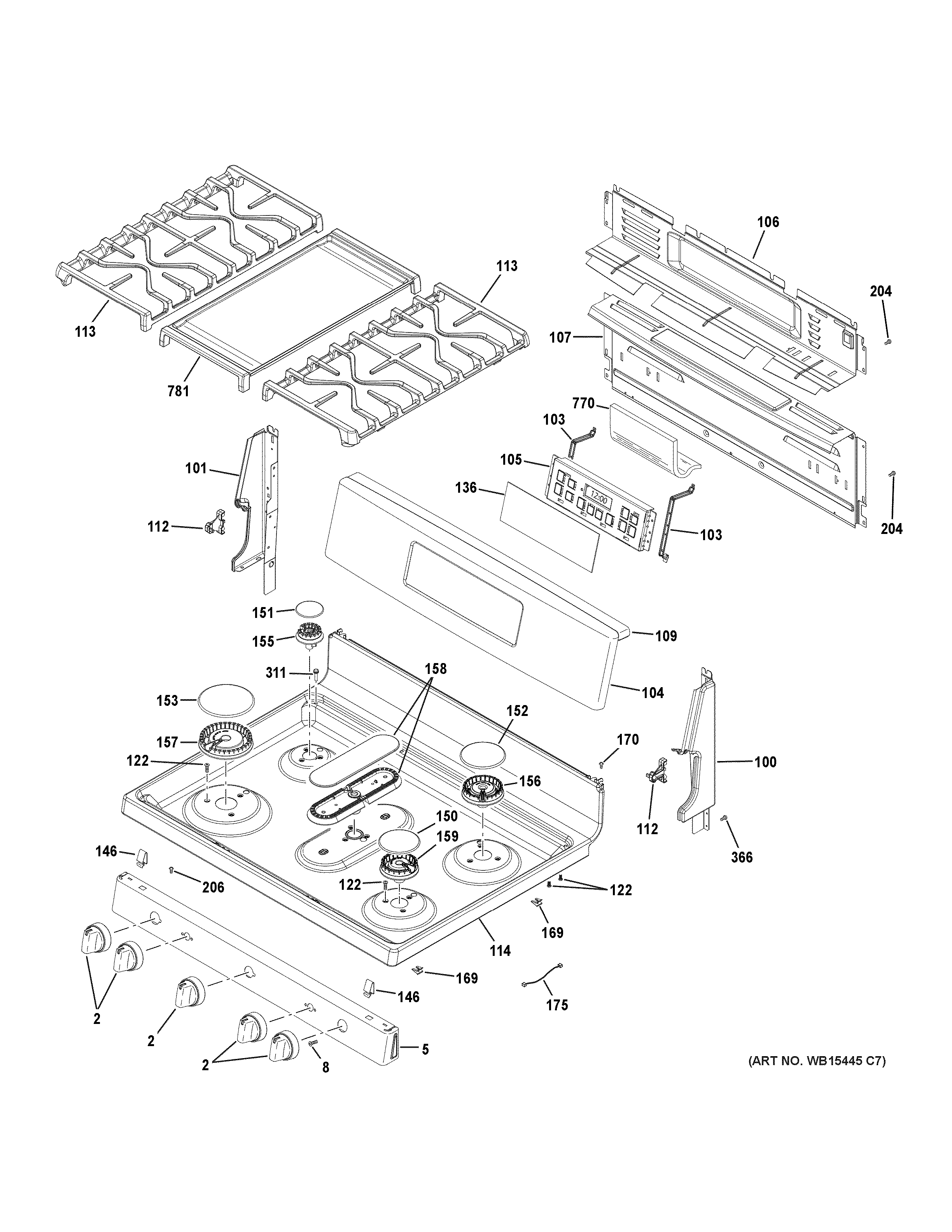

JGB700SEJ5SS CONTROL PANEL & COOKTOP

Products

PositionProduct
2KNOB
5WB36X32657 GE Stainless Steel Manifold Pan
8WB01X26995 GE Oven Screw 8-18 AB X 5/16
100WB07X29143 GE Oven End Support
101WB07X29144 GE Oven End Support
103WB02X24845 GE Range Control Bracket
104WB36X24896 GE Range Backguard
105WB27X29135 GE Oven Control TO9
106WB34X24851 GE Upper Back Oven Cover
107WB34X24746 GE Oven Back Cover Lower
109WB34X29145 GE Backguard Top Complement
112WB14K10003 GE Range Top Hinge
113GRATE ASM
114WB62X24822 GE Range Top Bracket Assembly
122WB01X24735 GE Oven CKT Screw
136WB07X27884 GE Oven Large Overlay T09
146WB02X26569 GE Range Top Clip
150WB29K10023 GE Oven Burner Cap Assembly
151WB16X28654 GE Oven Burner Cap Cover
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
155WB16X24721 GE Oven Range Small Cooktop Burner V2
156BURNER LARGE V2
157WB16X24722 GE Oven Gas Range XL Surface Burner
158WB16K10076 GE Oven Oval Burner Assembly
159WB16X24724 GE Oven Medium Burner
169WB02X24976 GE Oven Igniter Clip V2
170SCREW MTG END CAP
175WB18X24748 GE Oven Ground Harness
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
311BUMPER
366WB1X536 GE Oven Screw
770WB35X25588 GE Oven Control Insulation
781GRIDDLE
