JGB720EEJ5ES CONTROL PANEL & COOKTOP

JGB720EEJ5ES CONTROL PANEL & COOKTOP

Written by

in

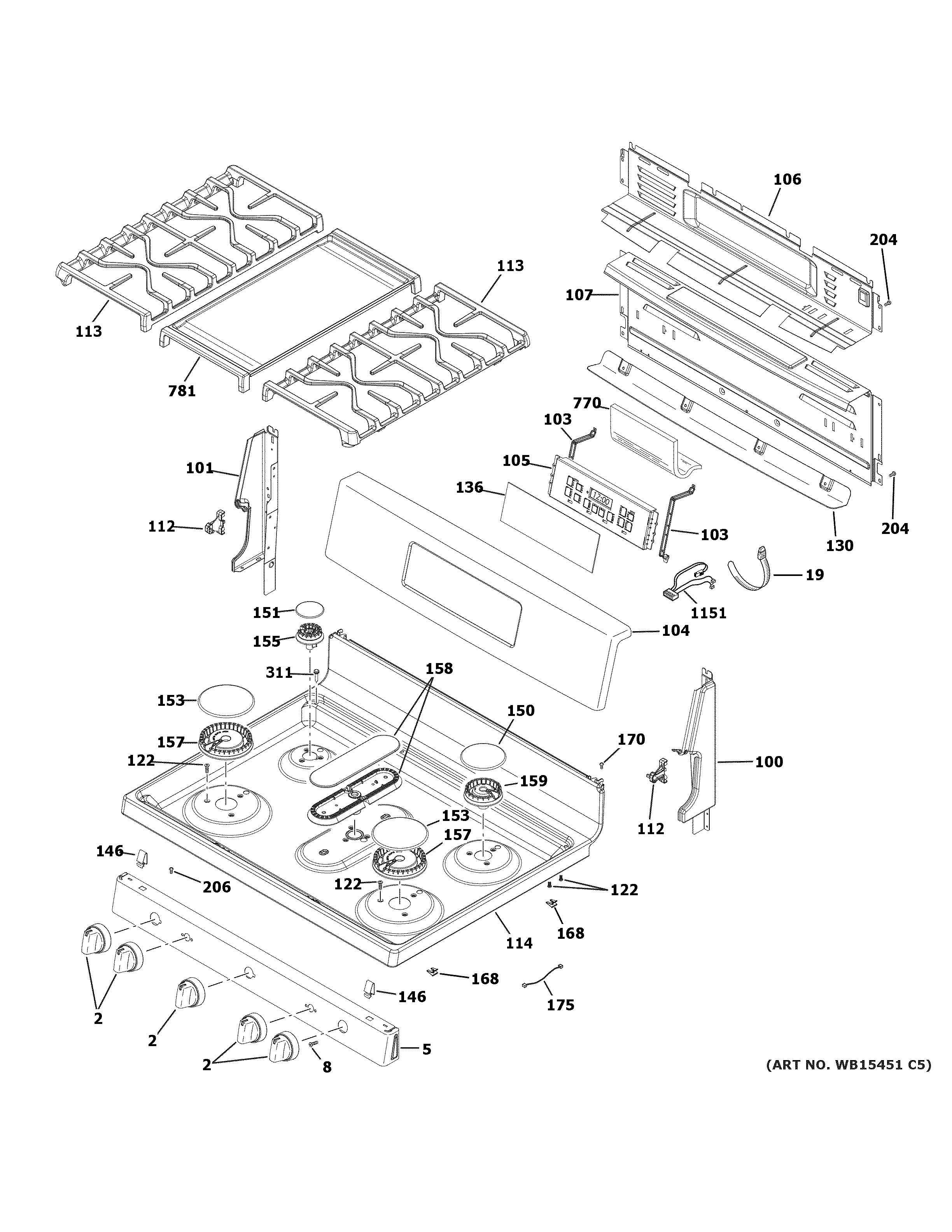

JGB720EEJ5ES CONTROL PANEL & COOKTOP

Products

PositionProduct
2KNOB
5WB36X25029 GE Oven Panel and Cover Assembly
8WB01X26995 GE Oven Screw 8-18 AB X 5/16
19BLACK CABLE TIE 5 1/2 LO
100WB07X29143 GE Oven End Support
101WB07X29144 GE Oven End Support
103WB02X24845 GE Range Control Bracket
104WB36X27743 GE Range Backguard
105WB27X29135 GE Oven Control TO9
106WB34X24851 GE Upper Back Oven Cover
107WB34X24746 GE Oven Back Cover Lower
112WB14K10003 GE Range Top Hinge
113GRATE ASM
114WB62X24887 GE Range Bracket and Top Assembly
122WB01X24735 GE Oven CKT Screw
130WB34X25717 GE Oven Backguard Eyebrow
136WB07X27884 GE Oven Large Overlay T09
146WB02X26569 GE Range Top Clip
150WB29K10023 GE Oven Burner Cap Assembly
151WB16X28654 GE Oven Burner Cap Cover
153CAP BURNER ASM (15K)
155WB16X24721 GE Oven Range Small Cooktop Burner V2
157WB16X24722 GE Oven Gas Range XL Surface Burner
158WB16K10076 GE Oven Oval Burner Assembly
159WB16X24724 GE Oven Medium Burner
168WB02X24976 GE Oven Igniter Clip V2
170GEN WB01X5716
175WB18X24748 GE Oven Ground Harness
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
311BUMPER
770WB35X25588 GE Oven Control Insulation
781GRIDDLE
1151WB18X32416 GE Control Harness
