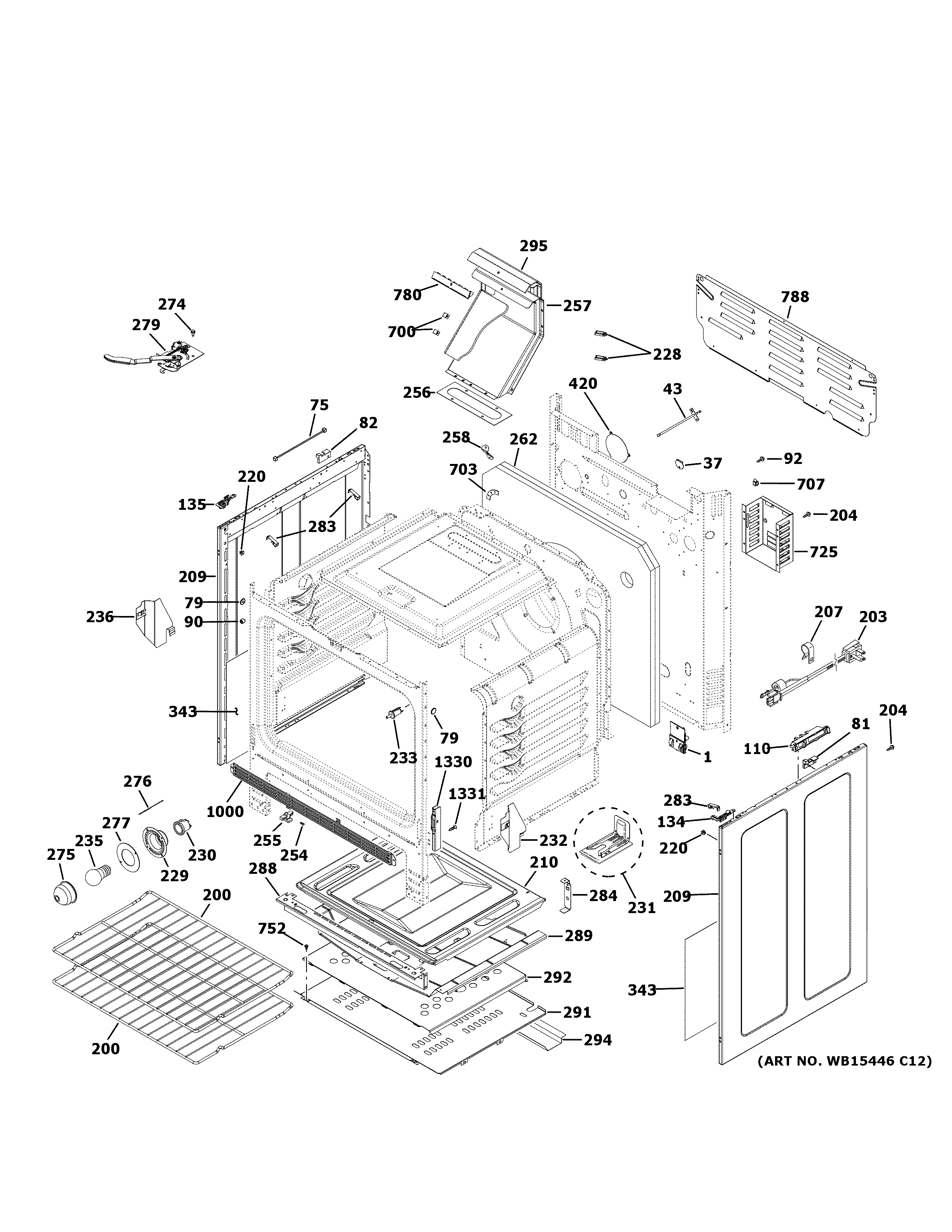

JGB735DP1WW BODY PARTS

JGB735DP1WW BODY PARTS

Written by

in

JGB735DP1WW BODY PARTS

Products

PositionProduct
1WB28X39132 GE Conversion Kit
1WB28X29255 GE Range LP High Altitude Kit
1WB28X29254 GE Range Natural Gas High Altitude Kit
37WB34X24753 GE Igniter Cover
43TEMPERATURE SENSOR
75WB18X25597 GE Ground Harness
79SPACER SIDE
81HOLDER RANGETOP
82WB02X24942 GE Rantop Holder
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
110WB13X24741 GE Oven Spark Module
134BRACKET MANIFOLD SIDE RIGHT
135BRACKET MANIFOLD SIDE LEFT
200OVEN RACK
203WB18X28855 GE Oven Power Cord
204WB1K5062 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
209WB56X29122 GE Oven Side Panel
210WB35X37970 GE Bottom Oven and Deflector Assembly
220GEN WB02K0008
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
232GEN WB34K0003
233WB24X27550 GE Oven Plunger Switch
235RANGE ONLY 40W 120V APPL BULB
236GEN WB34K0004
254WB01X37587 GE Screw 10-32 HSW 1/2
255WB02K10163 GE Oven Drawer Support
256GEN WB32K0001
257WB38K10008 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
262INSULATION ASSEMBLY
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
279WB10X24780 GE Oven Automatic Latch
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
291WB63K16 GE Oven Bottom Guard
292WB63K10187 GE Bottom Inner Guard
294GEN WB63K10040
295WB35X24852 GE Vent Insulation
343WB02X26847 GE Range Drawer Glider
343WB35X26892 GE Oven Side Panel Foil
420GEN WB34K0016
700WB02K10380 GE Insulation Clip
703BRACKET OVEN
707WB02K10267 GE Wire Clip
725WB34X25587 GE Motor Cover
752WZ4X345D GE Screw Package 12 C92
780WB38K10022 GE Oven Diffuser Vent
788WB34X21575 GE Oven Back Cover
1000WB34X24779 GE Front Frame Trim
1330WB10X20220 GE Oven Receiver Hinge
1331GEN WB01K0053
