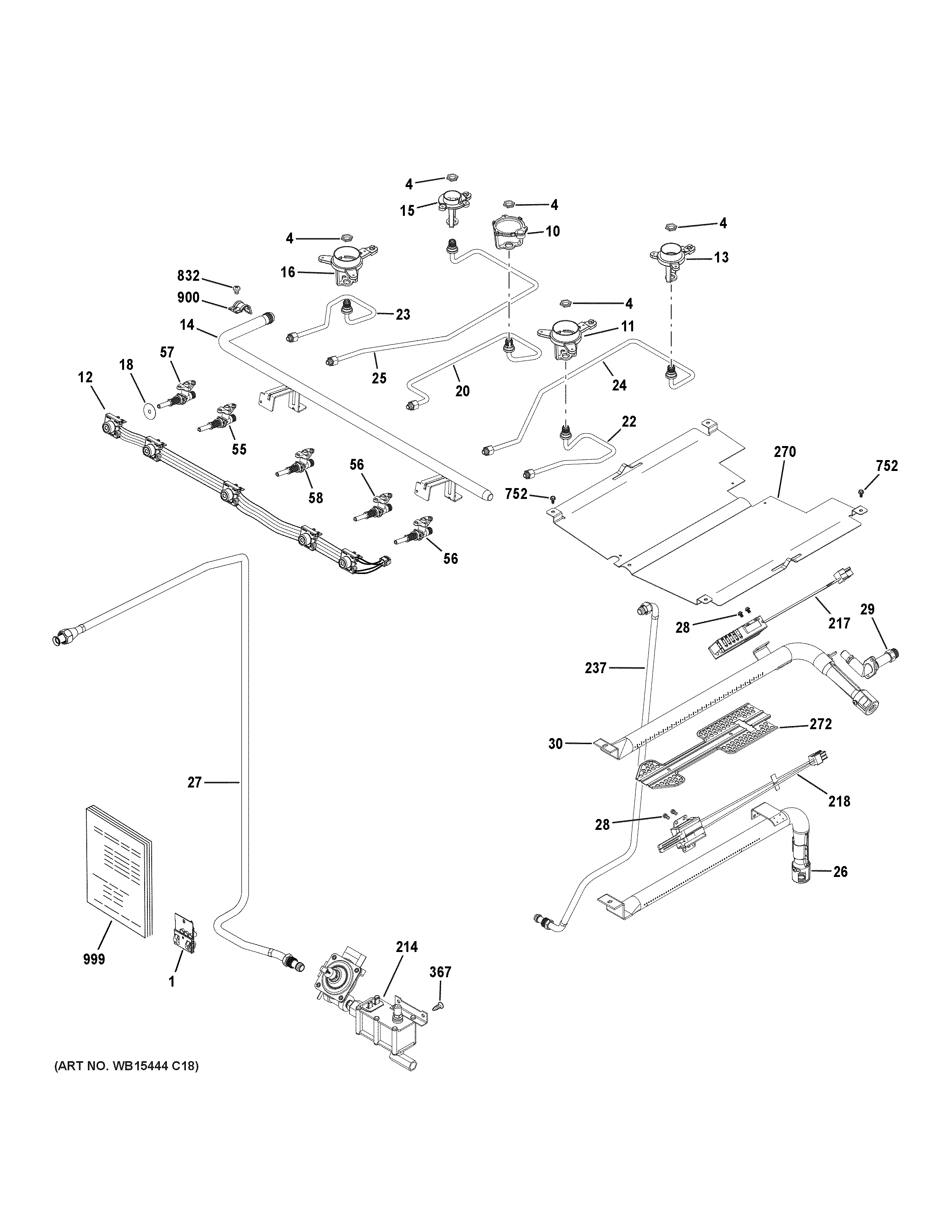

JGB735EP1ES GAS & BURNER PARTS

JGB735EP1ES GAS & BURNER PARTS

Written by

in

JGB735EP1ES GAS & BURNER PARTS

Products

PositionProduct
1WB28X29255 GE Range LP High Altitude Kit
1WB28X39132 GE Conversion Kit
1WB28X29254 GE Range Natural Gas High Altitude Kit
4WB01K10037 GE Oven Economic Nut
10WB02K10360 GE Oven Circuit Bracket Small
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12WB18X27596 GE Oven Switch Harness
13WB02X24726 GE Range Injector Large
14WB28X24765 GE Oven Manifold Pipe
15WB02X24728 GE Range Small Injector
16WB02X24725 GE Oven Inlet XLV2
18WB2K24 GE Oven Valve Cover
20WB28X24762 GE Oven Surface Burner Orifice Holder
22WB28X24766 GE Oven Office Holder
23WB28X24761 GE Oven Surface Burner Orifice Holder
24WB28X24764 GE Oven Surface Burner Orifice Holder
25WB28X24763 GE Oven Right Rear Orifice Holder
26WB16X20463 GE Oven Bake Burner
27WB28X24772 GE Oven Gas Tube Connector
28WB1X1293 GE Oven Screw
29WB28X20389 GE Oven 90-Degree Elbow Assembly
30WB16K10086 GE Range Broil Burner
55WB21X20261 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21X20262 GE Oven Burner Valve 270
58WB21X20394 GE Oven Burner Valve 270
214VALVE CONTROL ASM
217WB13X24755 GE Broil Igniter Glow Bar
218IGNITER GLOWBAR
237WB28X24773 GE Oven Burner Supply Tube
270WB49K10025 GE Range Deflector
272WB34X20303 GE Range Broil Shield
367WB1X536 GE Oven Screw
752WZ4X345D GE Screw Package 12 C92
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
999PM QUICK OWNERS MANUAL
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
