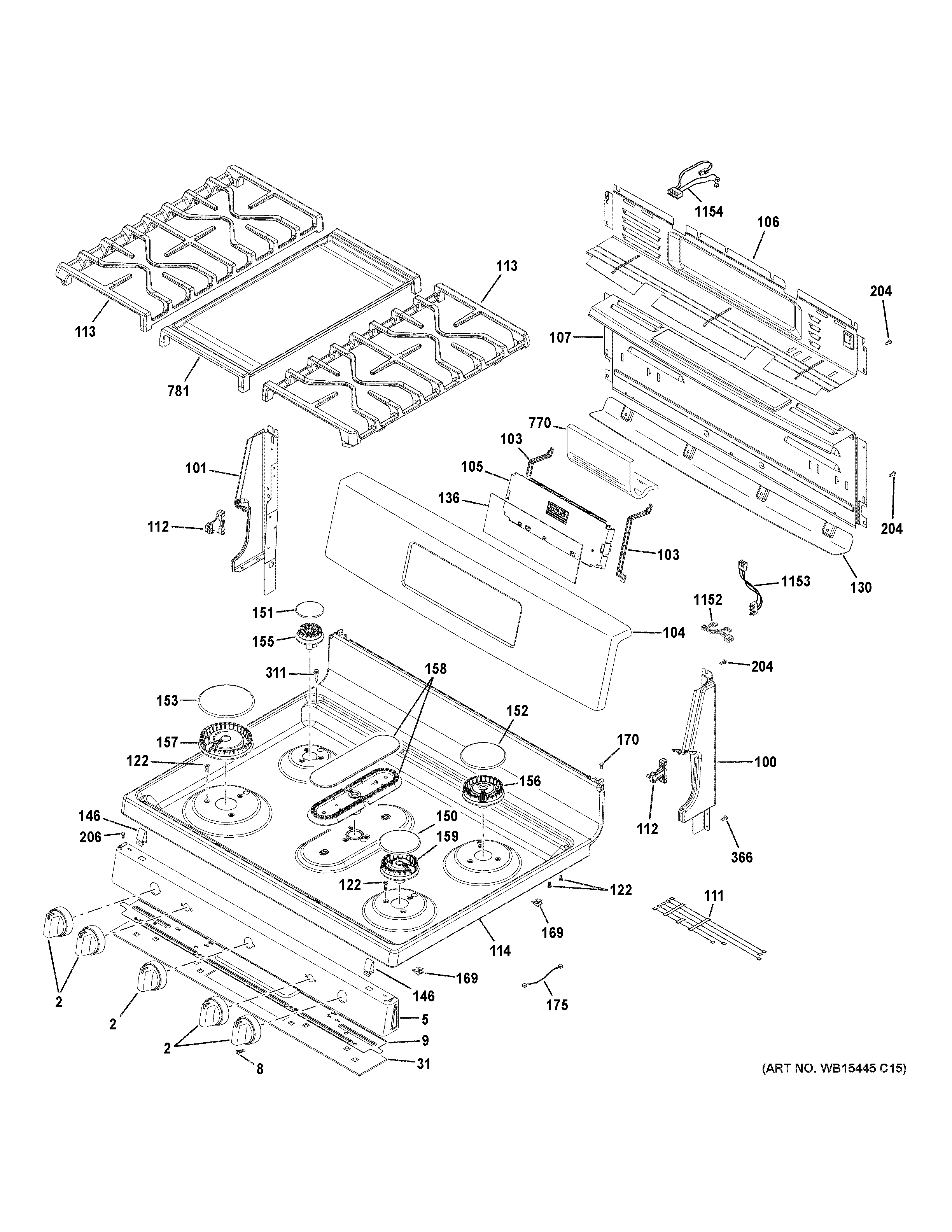

JGB735FP1DS CONTROL PANEL & COOKTOP

JGB735FP1DS CONTROL PANEL & COOKTOP

Written by

in

JGB735FP1DS CONTROL PANEL & COOKTOP

Products

PositionProduct
2WB03X29781 GE Oven Knob Assembly
5WB36X30204 GE Cover and Panel Assembly
8WB01X26995 GE Oven Screw 8-18 AB X 5/16
9WB34X20680 GE Support Manifold
31WB35X24985 GE Burner Box Insulation
100WB07X29143 GE Oven End Support
101WB07X29144 GE Oven End Support
103WB34X38000 GE Control Bracket
104WB36X37981 GE Dark Slate Backguard
105RC19 CONTROL (FLASHED)
106WB34X24745 GE Oven Upper Back Cover
107WB34X24746 GE Oven Back Cover Lower
111WB18X26980 GE Oven Range Electrode and Harness
112WB14K10003 GE Range Top Hinge
113GRATE ASM
114WB62X24822 GE Range Top Bracket Assembly
122WB01X24735 GE Oven CKT Screw
130WB34X25717 GE Oven Backguard Eyebrow
136WB07X38059 GE Dark Dorian Gray Overlay RC1
146WB02X26569 GE Range Top Clip
150WB29K10023 GE Oven Burner Cap Assembly
151WB16X28654 GE Oven Burner Cap Cover
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
155WB16X24721 GE Oven Range Small Cooktop Burner V2
156BURNER LARGE V2
157WB16X24722 GE Oven Gas Range XL Surface Burner
158WB16K10076 GE Oven Oval Burner Assembly
159WB16X24724 GE Oven Medium Burner
169WB02X24976 GE Oven Igniter Clip V2
170SCREW MTG END CAP
175WB18X24748 GE Oven Ground Harness
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
311BUMPER
366SCR 8-18 B HXW 1/4S UH
770WB35X25588 GE Oven Control Insulation
781GRIDDLE
1152WB18X38046 GE Backguard Harness
1153WB18X38049 GE Harness Interface
1154WB18X38061 GE Control Harness
