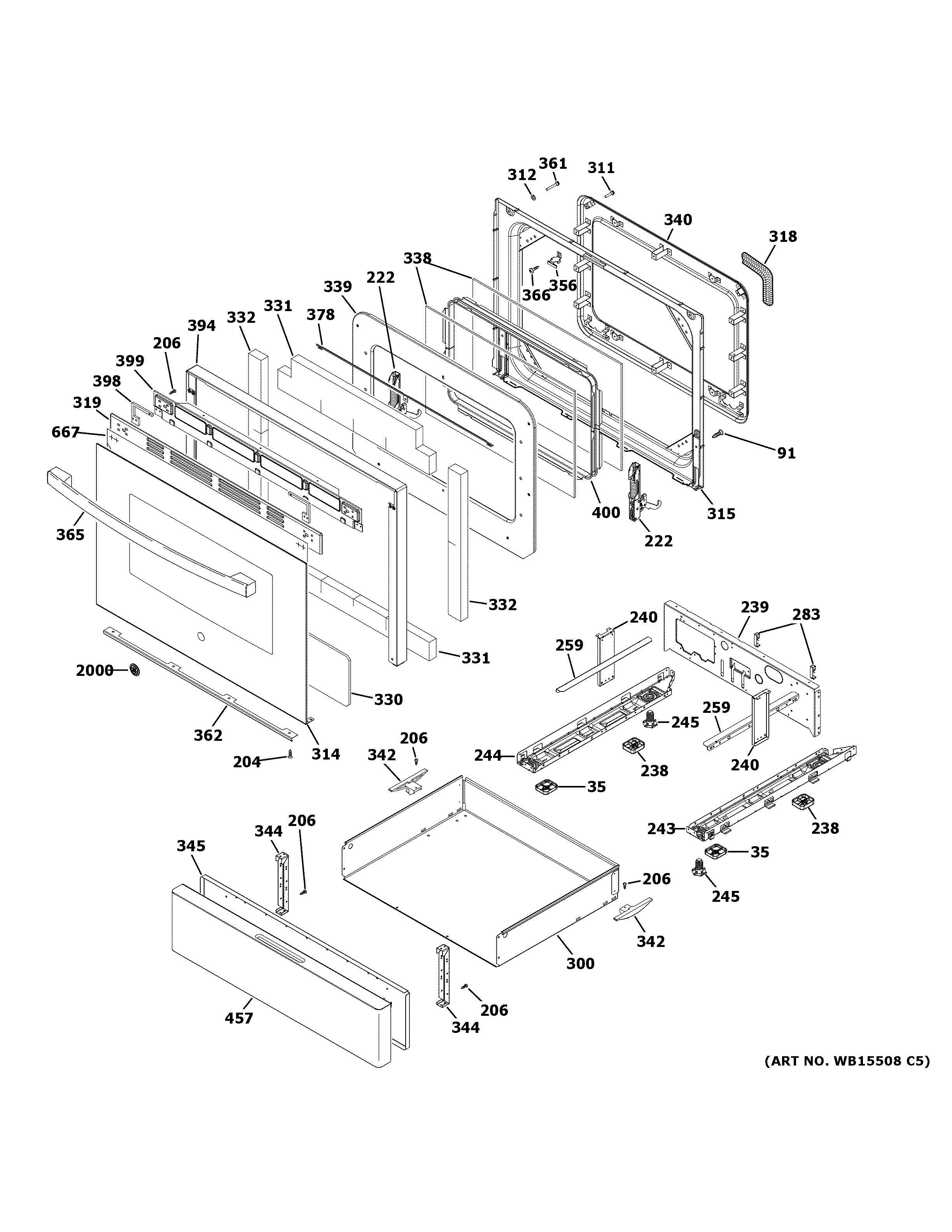

JGB735SP1SS DOOR & DRAWER PARTS

JGB735SP1SS DOOR & DRAWER PARTS

Written by

in

JGB735SP1SS DOOR & DRAWER PARTS

Products

PositionProduct
35WB16X20448 GE Oven Spacer Base
91WB01T10008 GE Oven Screw 10-32
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
222HINGE DOOR
238WB16X20449 GE Oven Base Spacer
239WB63K10203 GE Oven Rear Broil Panel
240WB63X24859 GE Oven Cavity Bracket
243WB63X20215 GE Oven Support Base
244WB63X20216 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
259WB39K16 GE Oven Drawer Rail
283WB02X21679 GE Oven Wire Clip
300WB58K10015 GE Oven Drawer Body
311BUMPER
312WB02X32440 GE Washer Contoured
314WB56X30064 GE Oven Glass Door Assembly
315WB56X24855 GE Oven Door Liner Weld
318WB35X29841 GE Door Gasket Assembly
319WB07X26937 GE Oven Vent Trim
330WB35X38787 GE Reflector Aluminum
331WB35K10150 GE Bottom Door Oven Insulation
332WB35K10149 GE Oven Side Door Insulation
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K12 GE Oven Insulation Guard
340WB55K10033 GE Oven Welded Panel
342WB02X26847 GE Range Drawer Glider
344WB02X24742 GE Oven Drawer Bracket
345WB56X25101 GE Drawer Liner
356GEN WB02K0056
361WB01X37565 GE Screw 10-32
362WB07X20288 GE Oven Barrier Door
365WB15X35073 GE Stainless Steel Handle
366SCR 8-18 B HXW 1/4S UH
378WB56X21576 GE Oven Deflector Door
394WB07X29147 GE Oven Door Trim DD
398WB35X28971 GE Washer Side Door Insulation
399WB56X20809 GE Oven Backer Panel
400WB34K10087 GE Oven Window Spacer Assembly
457WB56X24829 GE Oven Drawer Panel
667VENT ALUMINUM FOIL
2000WB02X29637 GE Oven Badge Assembly
