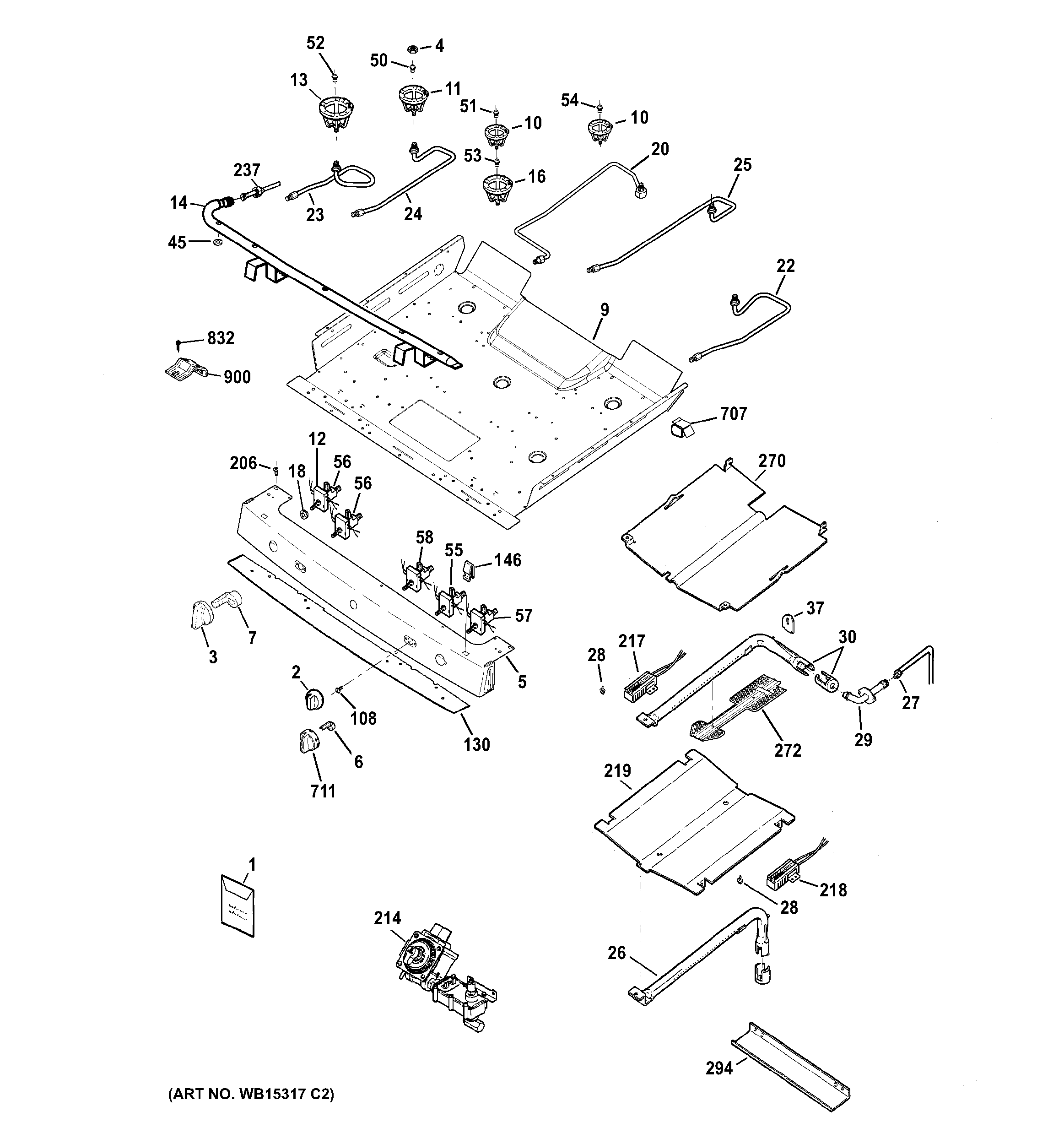

JGB770DEF1BB GAS & BURNER PARTS

JGB770DEF1BB GAS & BURNER PARTS

Written by

in

JGB770DEF1BB GAS & BURNER PARTS

Products

PositionProduct
1KIT HIGH ALTITUDE ASM
1KIT LP CONVERSION ASM
1GEN 31-10888
1GEN 49-85211-1
1GEN 31-10920
1GEN 31-17087
2WB28K10742 GE Orifice Spud
2KNOB GE PROFILE ASM
3KNOB GE PROFILE GRIDDLE
4WB01K10037 GE Oven Economic Nut
5MANIFOLD PANEL
6KNOB LOCATOR
7KNOB LOCATOR
9BURNER BOX SP
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12SWITCHES & HARNESS
13WB02K10362 GE Oven CKT Bracket MDM & L
14ROUND MANIFOLD PIPE
16WB02K10363 GE Oven Cooktop Bracket XL
18WB2K24 GE Oven Valve Cover
20ORIFICE HOLDER ASM
22GEN WB28K10812
23ORIFICE HOLDER LF
24GEN WB28X20614
25GEN WB28X20613
26WB16X20463 GE Oven Bake Burner
27WB28X24773 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29WB28X20389 GE Oven 90-Degree Elbow Assembly
30WB16X20418 GE Oven Broil Burner
37WB34K14 GE Igniter Cover
45GEN WB01X1378
50WB28K10023 GE Oven Orifice
51WB28K10215 GE Oven Orifice
52WB28K10214 GE Oven Orifice
53WB28K10861 GE Oven Orifice Spud
54WB28K10834 GE Oven Orifice Assembly
55WB21X20261 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21X20262 GE Oven Burner Valve 270
58WB21X20394 GE Oven Burner Valve 270
108WB1X5364 GE Oven Mounting Screw
130MANIFOLD EYEBROW
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB21X21506 GE Oven Valve Control Assembly
217WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
270WB49K10025 GE Range Deflector
272WB34X20303 GE Range Broil Shield
294WB63K10054 GE Terminal Cover
707WB02K10267 GE Wire Clip
711KNOB GE PROFILE POWER BO
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
