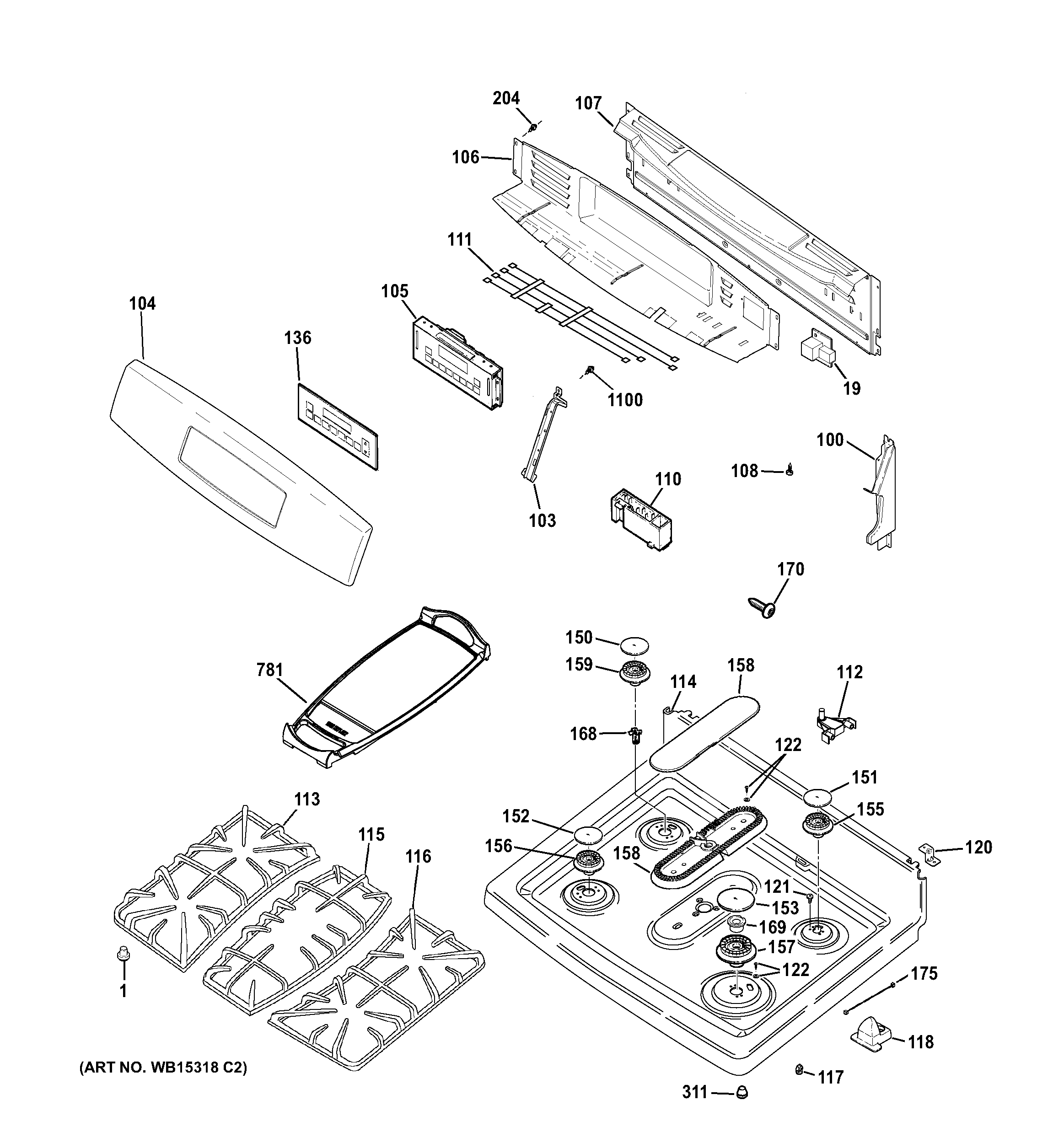

JGB770DEF1WW CONTROL PANEL & COOKTOP

JGB770DEF1WW CONTROL PANEL & COOKTOP

Written by

in

JGB770DEF1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN 31-17087
1GEN 31-10920
1GEN 31-10888
1KIT LP CONVERSION ASM
1KIT HIGH ALTITUDE ASM
1GEN 49-85211-1
19WB27X20933 GE Oven RJ45 Housing Assembly
100END SUPPORT LF WH
100END SUPPORT RT WH
103BRACKET CONTROL LEFT
103BRACKET CONTROL RIGHT
104TRIM CONTROL
105WB27X25327 GE Oven Control Board
106COVER BACK UPPER
107WB34K10129 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
110WB13X26360 GE Oven Spark Module
111ELECTRODES & HARNESS HV
112WB14K10003 GE Range Top Hinge
113GRATE CAST LF BK
114GEN WB62K10155
115WB31K10235 GE Cast Grate Black
116GRATE CAST RT BK
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
120WB02X20735 GE Top Rear Support
121WB1K5119 GE Oven Screw
122WB01K10106 GE Oven Circuit Screw
136OVERLAY T012
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158WB16K10076 GE Oven Oval Burner Assembly
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169WB16K10085 GE Range Surface Burner 15K
170GEN WB01X5874
175HARNESS GROUND
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
204WB1K84 GE Oven Screw and
311WB2K15 GE Oven Grate Bumper
781WB31X23201 GE Oven Reversible Griddle
1100WB01T10016 GE Oven Screw 8-18 AB Hex
