JGB800DEP1CC BODY PARTS

JGB800DEP1CC BODY PARTS

Written by

in

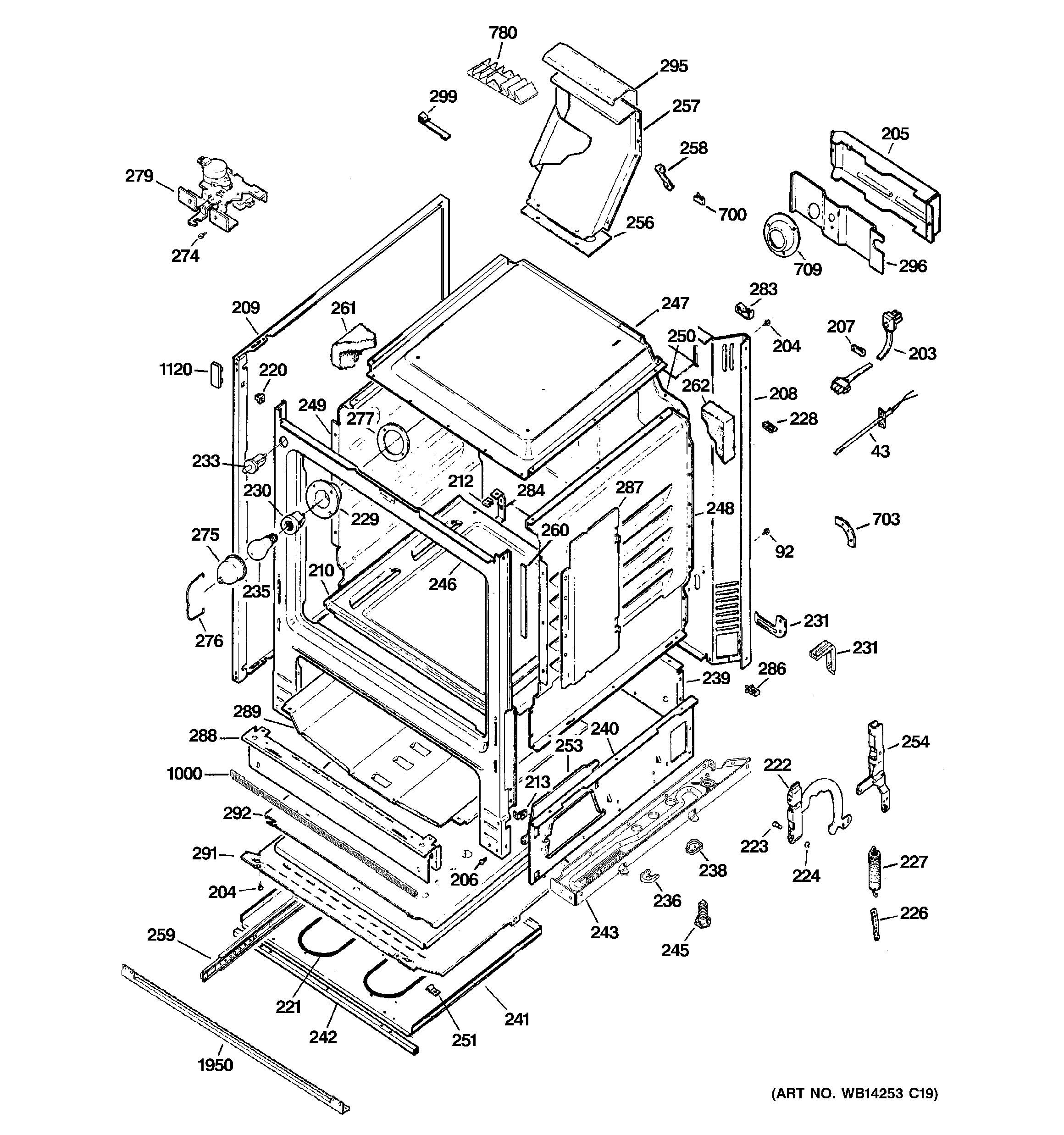

JGB800DEP1CC BODY PARTS

Products

PositionProduct
43TEMPERATURE SENSOR
92WB1X1261 GE Oven Screw
203WB18K10036 GE Oven Line Cord
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
205GEN WB34K10124
206WB01K10091 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
208GEN WB63K10188
209WB63K10122 GE Oven Side Panel
209WB63K10119 GE Oven Side Panel, Black
209GEN WB63K10124
210WB35X37973 GE Oven Bottom and Deflector Assembly
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB44K10011 GE Oven Heating Element
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB02K0011
227GEN WB09K0005
228GEN WB02X7066
229GEN WB08K10015
230WB08T10026 GE Range Push-In Receptacle
231GEN WB02K0012
231WB2K20 GE Oven Bracket Assembly
233GEN WB24K10067
235RANGE ONLY 40W 120V APPL BULB
236WB02K10104 GE Base Spacer
238GEN WB02K10154
238GEN WB02K10153
239WB63K10203 GE Oven Rear Broil Panel
240WB63K3 GE Oven Panel Side Broil
240GEN WB63K0002
241GEN WB63K10041
242GEN WB63K0005
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10191
247WB53K10015 GE Oven Top
248WB53K10034 GE Oven Right Side
249WB53K10035 GE Oven Left Side
250GEN WB53K10024
251WB02K10023 GE Oven Heating Element Clamp
253WB2K4 GE Cover Accessory Spring
254SUPPORT ASM RIVET LF
254SUPPORT ASM RIVET RT
254GEN WB01K0053
256GEN WB32K0001
257WB38K10008 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259WB39K10020 GE Oven Right Drawer Slide Assembly
259WB39K10021 GE Oven Left Drawer Slide Assembly
260WB32K2 GE Oven Gasket Seal
261GEN WB35K10158
262GEN WB35K10161
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
279WB02K10136 GE Oven Motor Switch Assembly
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
286WB02K10068 GE Wire Clip
287GEN WB34K0031
287WB34K30 GE Radiation Guard
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
291WB63K16 GE Oven Bottom Guard
292WB63K10187 GE Bottom Inner Guard
295GEN WB35K10036
296WB34K13 GE Oven B Panel Cover
299GEN WB02K0038
700RETAINER-INSULATION
703BRACKET OVEN
709GEN WB08K0004
780WB38K10022 GE Oven Diffuser Vent
1000WB04K10021 GE Oven Front Frame Gasket
1120WB02K10179 GE Range Bumper
1120WB02K10180 GE Oven Bumper
1120WB02K10178 GE Oven Bumper
1950WB01K10072 GE Oven Front Bottom Trim
