JGB800DEP1WW CONTROL PANEL & COOKTOP

JGB800DEP1WW CONTROL PANEL & COOKTOP

Written by

in

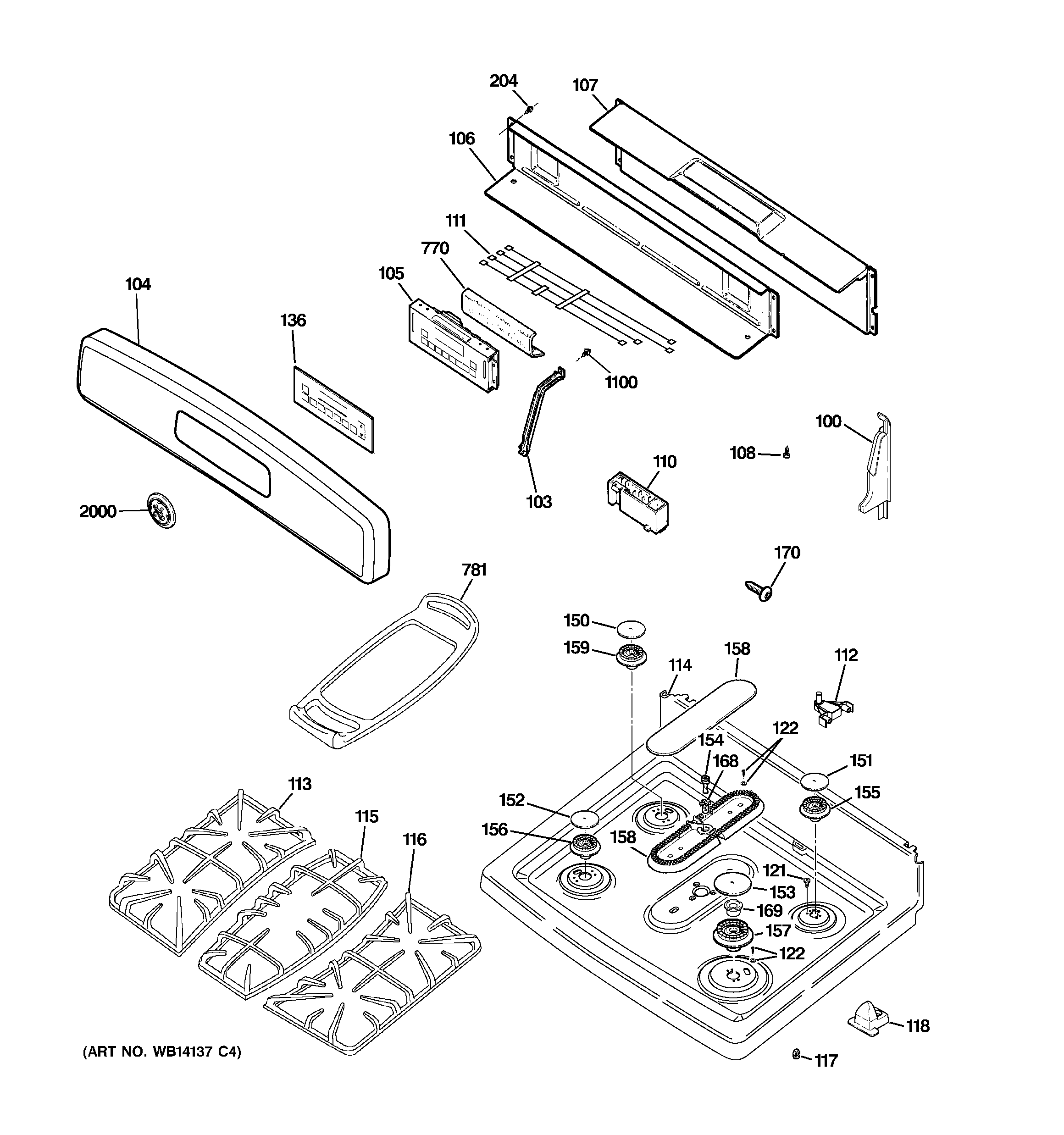

JGB800DEP1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
100GEN WB07K10247
100GEN WB07K10246
100GEN WB07K10252
100GEN WB07K10251
100GEN WB07K10282
100GEN WB07K10283
103GEN WB02K10155
104GEN WB36K10732
104GEN WB36K10731
104GEN WB36K10664
105WB27K10245 GE Oven Control T011
106GEN WB34K10092
107GEN WB34K10122
110WB13X26360 GE Oven Spark Module
111GEN WB18K10041
112WB14K10003 GE Range Top Hinge
113GRATE CAST LF BK
114GEN WB62K10126
114GEN WB62K10128
114GEN WB62K10127
115WB31K10235 GE Cast Grate Black
116GRATE CAST RT BK
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
121GEN WB01K10008
122WB1K5119 GE Oven Screw
136GEN WB27K10332
136GEN WB27K10330
136GEN WB27K10331
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158WB16K10076 GE Oven Oval Burner Assembly
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
170GEN WB01X5716
170GEN WB01X5874
170WB1X5364 GE Oven Mounting Screw
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
781WB31X23201 GE Oven Reversible Griddle
1100WB01T10016 GE Oven Screw 8-18 AB Hex
2000WB02T10359 GE Oven Badge
