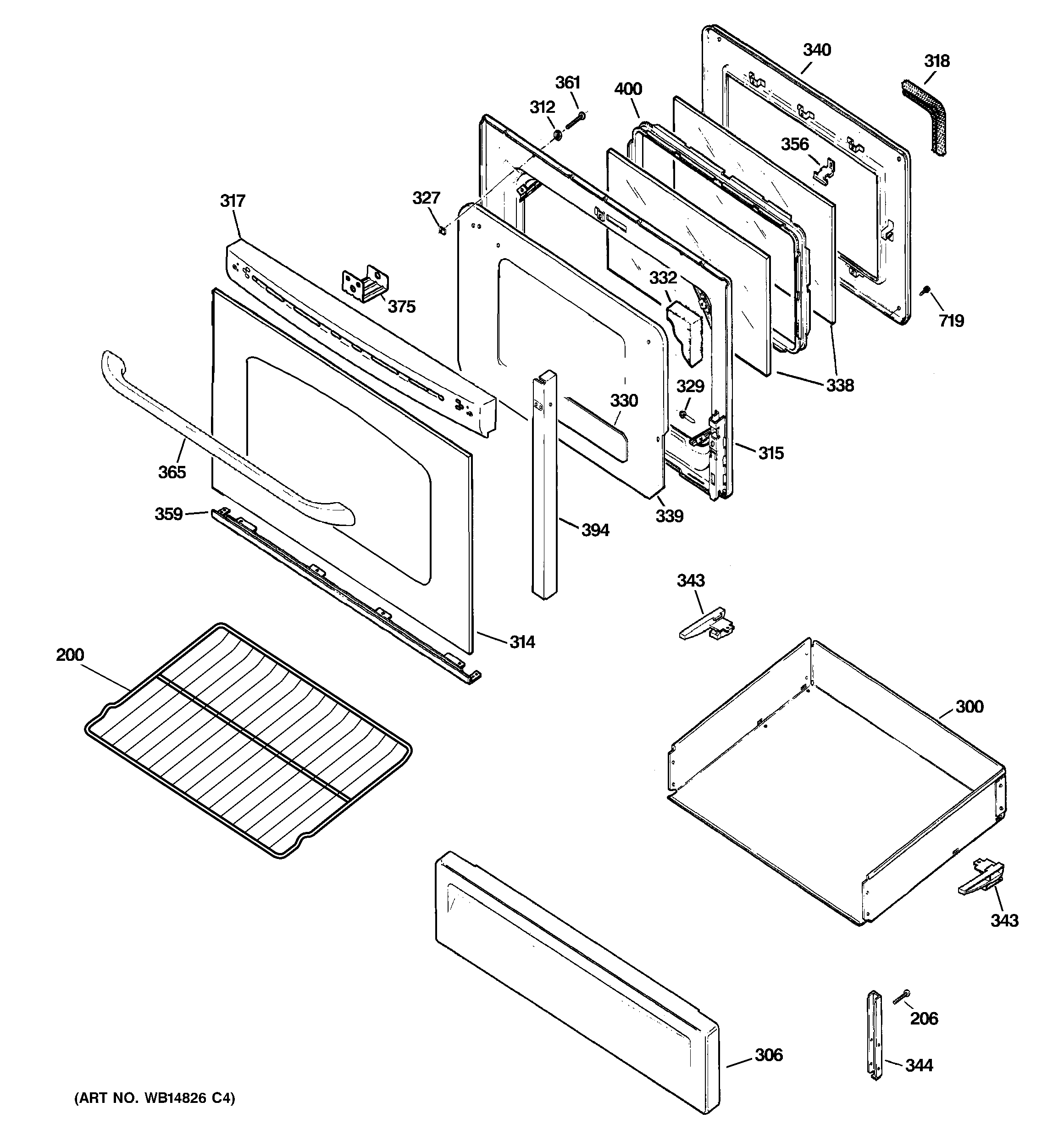

JGB800DEP2WW DOOR & DRAWER PARTS

JGB800DEP2WW DOOR & DRAWER PARTS

Written by

in

JGB800DEP2WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB02T10359 GE Oven Badge
200WB48T10095 GE Oven Rack
206WB01K10091 GE Oven Screw
300GEN WB58K10008
306WB55K10001 GE Oven Drawer Panel (Black)
312WB1X119D GE Oven Range Washer
314GEN WB57K10112
314WB57K10110 GE Oven Glass Door
314WB57K10109 GE Oven Glass Door
315GEN WB55K10042
317GEN WB07K10346
317GEN WB07K10347
317GEN WB07K10348
317WB35K10041 GE Oven Reflector
318GEN WB04K10029
327WB01K10093 GE Oven Speednut
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332WB35K10149 GE Oven Side Door Insulation
332WB35K10150 GE Bottom Door Oven Insulation
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343GUIDE- SLIDE DRAWER
344WB39K20 GE Oven Mounting Bracket Drawer
356GEN WB02K0056
359WB07K10269 GE Oven Bottom Trim Assembly
359TRIM BOTTOM ASM
359WB07K10232 GE Oven Bottom Trim Assembly
361GEN WB01K0065
361WB1K63 GE Oven Screw
365WB15K10103 GE Oven Handle Black
365GEN WB15K10104
365GEN WB15K10106
375GEN WB02K10268
394GEN WB07K10278
394GEN WB07K10279
394GEN WB07K10259
394GEN WB07K10258
394GEN WB07K10237
394GEN WB07K10236
400WB34K10087 GE Oven Window Spacer Assembly
