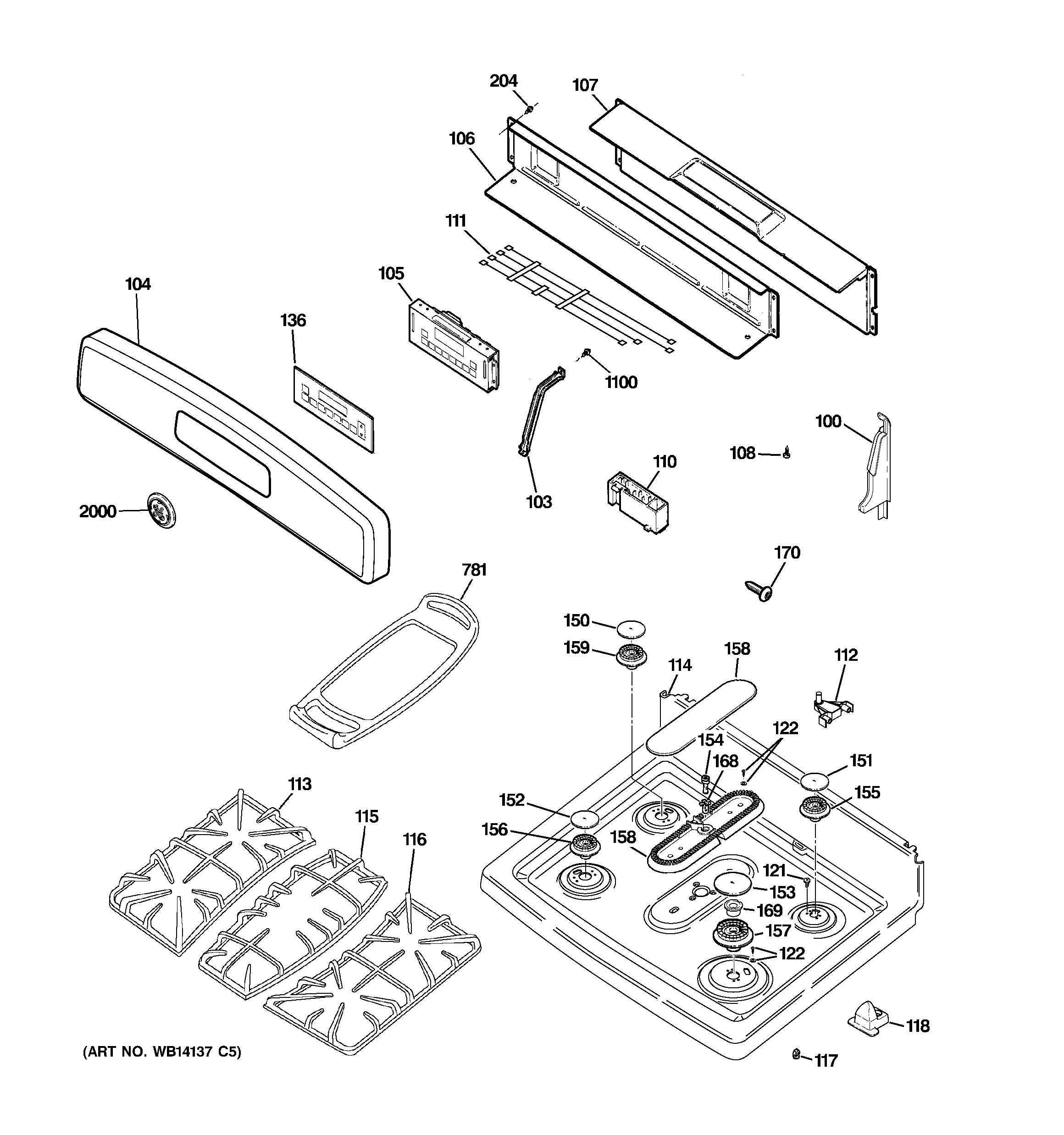

JGB805DEP3BB CONTROL PANEL & COOKTOPadmin2025-04-26T08:46:17+00:00JGB805DEP3BB CONTROL PANEL & COOKTOP ProductsPositionProduct100GEN WB07K10246100GEN WB07K10247103GEN WB02K10155104GEN WB36K10729106GEN WB34K10092107WB34K10129 GE Lower Back Cover108WB1X5364 GE Oven Mounting Screw110WB13X26360 GE Oven Spark Module111GEN WB18K10041112WB14K10003 GE Range Top Hinge113GRATE CAST LF BK114GEN WB62K10126115WB31K10235 GE Cast Grate Black116GRATE CAST RT BK117WB14K10004 GE Oven Pin Locator118GEN WB14K10005121GEN WB01K10008121GEN WB01K0078122WB1K5119 GE Oven Screw136WB27K10264 GE Oven T09-B Overlay150WB29K10023 GE Oven Burner Cap Assembly151WB29K10022 GE Oven Burner Cap Assembly152WB29K10024 GE Burner Cap Oven153CAP BURNER ASM (15K)154GEN WB13K10014155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range156BURNER 12K157WB16K10062 GE Oven Surface Burner Base158WB16K10076 GE Oven Oval Burner Assembly159WB16K10055 GE Oven Burner Base168WB01K10112 GE Range Oven Electrode Clip169GEN WB16K10045170GEN WB01X5716204WZ4X345D GE Screw Package 12 C92204WB1K5062 GE Oven Screw781WB31X23201 GE Oven Reversible Griddle1100WB01T10016 GE Oven Screw 8-18 AB Hex2000WB02T10359 GE Oven Badge
