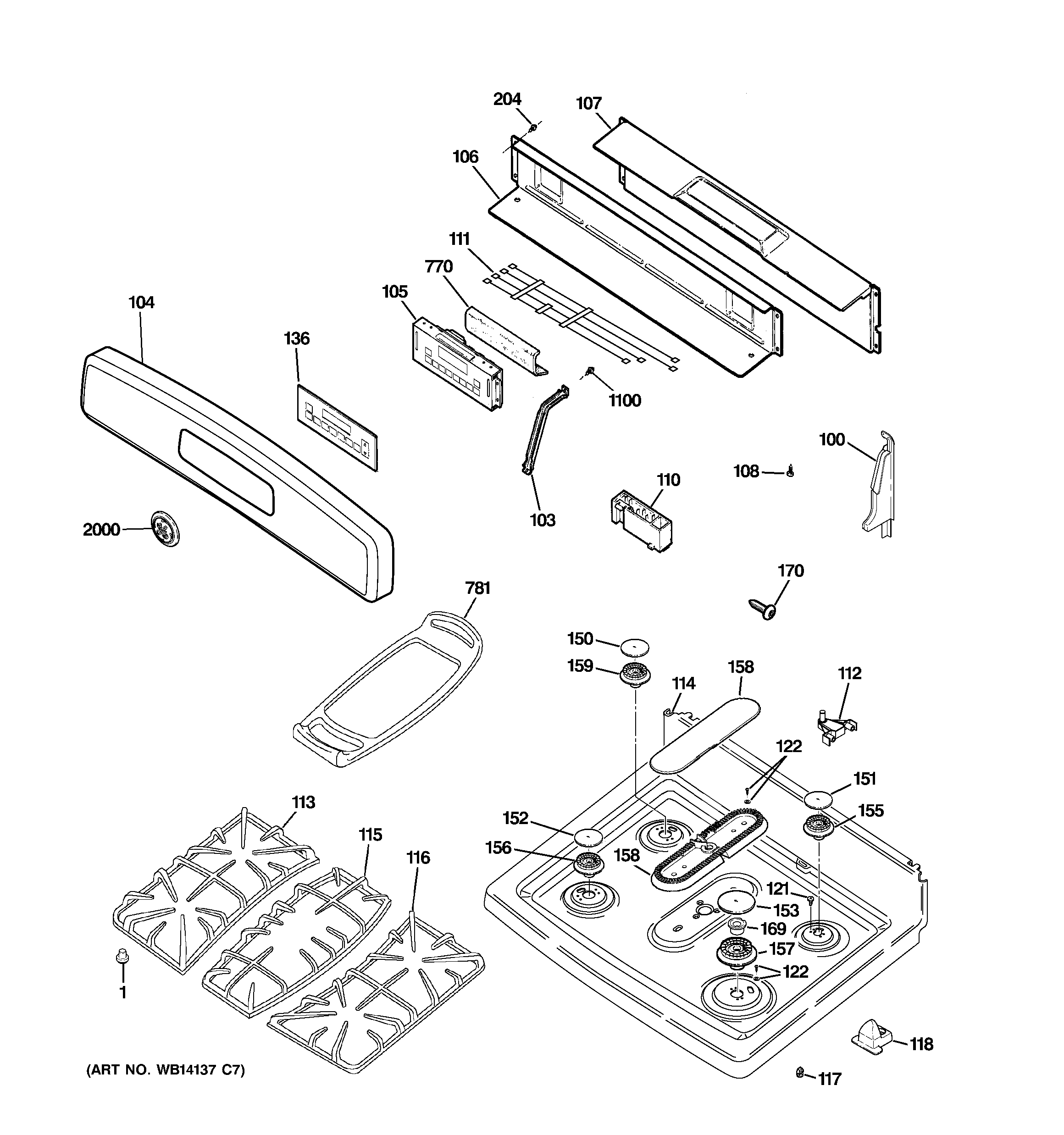

JGB810DET2CC CONTROL PANEL & COOKTOP

JGB810DET2CC CONTROL PANEL & COOKTOP

Written by

in

JGB810DET2CC CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB28K10825
1GEN WB02K0101
1GEN 49-85183-1
1GEN 31-14992-1
1GEN 31-10805-1
1GEN WB64X10005
100GEN WB07K10282
100GEN WB07K10252
100GEN WB07K10246
100GEN WB07K10247
100GEN WB07K10283
100GEN WB07K10251
103GEN WB02K10155
104GEN WB36K10963
104GEN WB36K10957
104GEN WB36K10956
105WB27K10319 GE Oven Control Board
106WB34K10123 GE Oven Back Cover Assembly
107WB34K10129 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
110WB13X26360 GE Oven Spark Module
111IGNIT HARNESS HV
112WB14K10003 GE Range Top Hinge
113GRATE CAST LF BK
114RANGETOP & BRKT ASM
114GEN WB62K10155
114GEN WB62K10154
115WB31K10235 GE Cast Grate Black
116GRATE CAST RT BK
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
121GEN WB01K0078
121WB1K5119 GE Oven Screw
122WB01K10106 GE Oven Circuit Screw
136WB27K10407 GE Oven Overlay
136GEN WB27K10418
136GEN WB27K10408
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158WB16K10076 GE Oven Oval Burner Assembly
159WB16K10055 GE Oven Burner Base
169GEN WB16K10045
170GEN WB01X5874
170GEN WB01X5716
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
770WB35K10040 GE Oven Insulation Control
781WB31X23201 GE Oven Reversible Griddle
1100WB01T10016 GE Oven Screw 8-18 AB Hex
2000WB02T10359 GE Oven Badge
