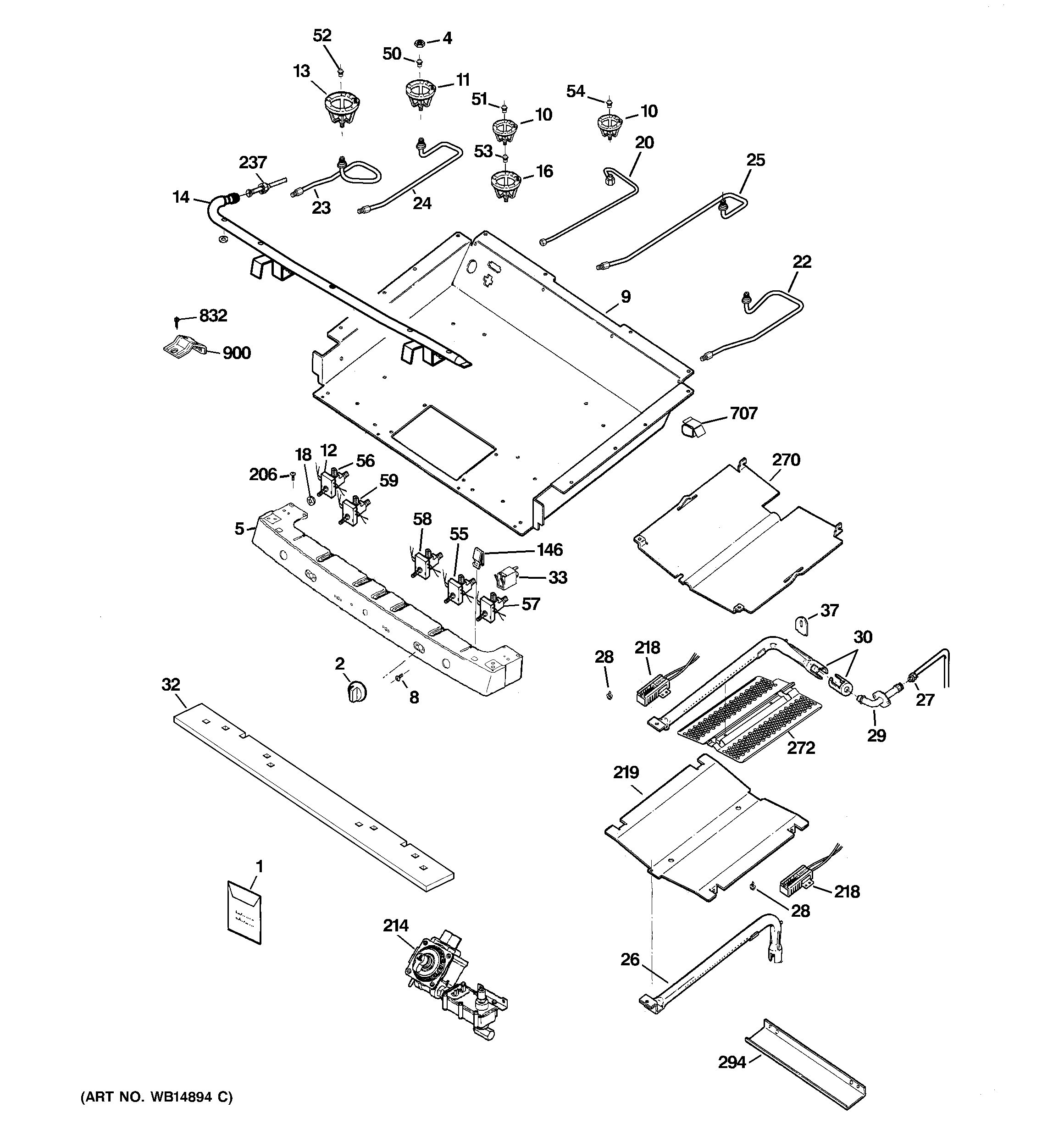

JGB810SEP2SS GAS & BURNER PARTS

JGB810SEP2SS GAS & BURNER PARTS

Written by

in

JGB810SEP2SS GAS & BURNER PARTS

Products

PositionProduct
1GEN 49-85170
1GEN 31-21462
1GEN WB28K10617
1WB02T10111 GE Cleaner Stainless Steel
1GEN 31-21476
2WB03X43926 GE Burner Knob Kit
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10869
8WB01K10002 GE Oven Screw 8-32
9WB63K10190 GE Burner Box Assembly
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10023
12GEN WB24K10024
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10583
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
20NG ORIFICE & TUBE CNTRAL
22GEN WB28K10424
23GEN WB28K10590
24GEN WB28K10592
25ORIFICE HOLDER RR NG
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10067
32INSULATION BURNER BOX
37WB34K14 GE Igniter Cover
50WB28K10023 GE Oven Orifice
51WB28K10031 GE Oven Orifice
52WB28K10214 GE Oven Orifice
53GEN WB28K10216
54WB28K10215 GE Oven Orifice
55WB21K10113 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21K10117 GE Oven Burner Valve
58GEN WB21K10114
59GEN WB21K10112
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10043 GE Oven Gas Valve and Regulator Assembly
218WB13K21 GE Oven Igniter with 7 Leads
218WB13X25261 GE Oven Igniter Glowbar
219OVEN DEFLECTOR
237GEN WB28K10587
237WB28X24772 GE Oven Gas Tube Connector
270WB49K10025 GE Range Deflector
272WB49K10045 GE Broil Shield
294WB63K10054 GE Terminal Cover
707WB02K10267 GE Wire Clip
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
