JGB840SET2SS GAS & BURNER PARTS

JGB840SET2SS GAS & BURNER PARTS

Written by

in

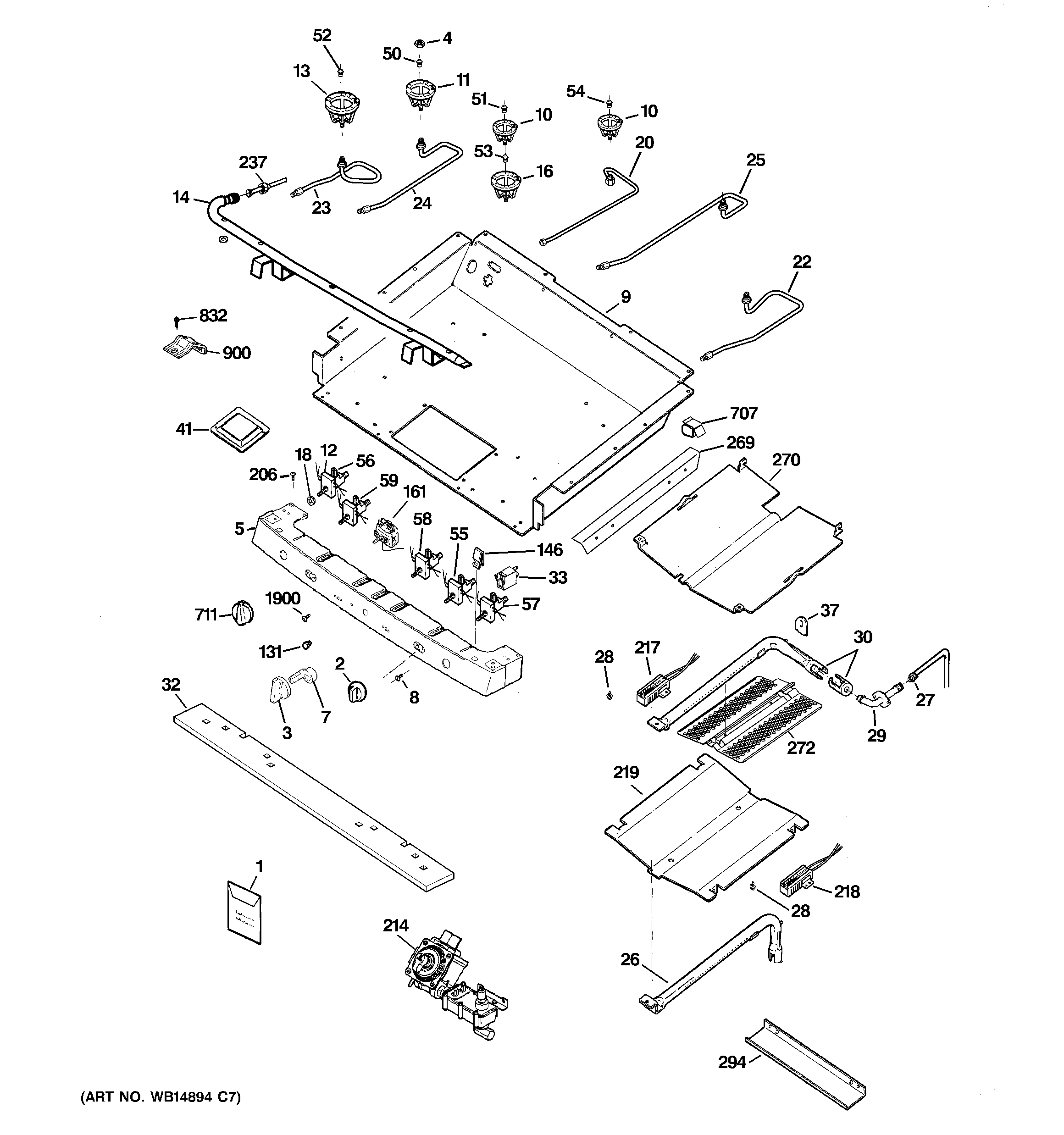

JGB840SET2SS GAS & BURNER PARTS

Products

PositionProduct
1WB02T10111 GE Cleaner Stainless Steel
1GEN 31-10805-1
1GEN 31-14993-1
1GEN WB28K10825
1GEN 49-85183-1
1GEN WB02K0101
2GEN WB03K10317
3GEN WB03K10318
4WB01K10037 GE Oven Economic Nut
5GEN WB36K11003
7GEN WB03K10320
8WB01K10002 GE Oven Screw 8-32
9BOX BURNER SP
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12SWITCHES & HARNESS
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB01X1378
14GEN WB28K10584
16WB02K10363 GE Oven Cooktop Bracket XL
18WB2K24 GE Oven Valve Cover
18WB37K10012 GE Thermostat Cover
20GEN WB28K10596
22GEN WB28K10812
23GEN WB28K10814
24GEN WB28K10816
25WB28K10817 GE Oven Orifice Holder Right Rear
26GEN WB16K10054
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10067
32INSULATION BURNER BOX
33WB25K10010 GE Oven Light Indicator Pilot
37WB34K14 GE Igniter Cover
41WB63K10063 GE Burner Box Cover
50WB28K10215 GE Oven Orifice
51WB28K10031 GE Oven Orifice
52WB28K10214 GE Oven Orifice
53GEN WB28K10839
54WB28K10023 GE Oven Orifice
55WB21K10113 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21K10117 GE Oven Burner Valve
58GEN WB21K10114
59GEN WB21K10112
131WB25K10009 GE Oven Lens
146GEN WB02K0052
161WB20K10017 GE Oven Thermostat
206WB01K10091 GE Oven Screw
214WB19K10078 GE Oven Control Valve Assembly
217WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237GEN WB28K10597
237GEN WB28K10587
269GEN WB35K10048
270WB49K10025 GE Range Deflector
272WB49K10045 GE Broil Shield
294WB63K10054 GE Terminal Cover
707WB02K10267 GE Wire Clip
711GEN WB02K10368
832WB01K10043 GE Oven Screw
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
1900WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
