JGB840SET3SS CONTROL PANEL & COOKTOP

JGB840SET3SS CONTROL PANEL & COOKTOP

Written by

in

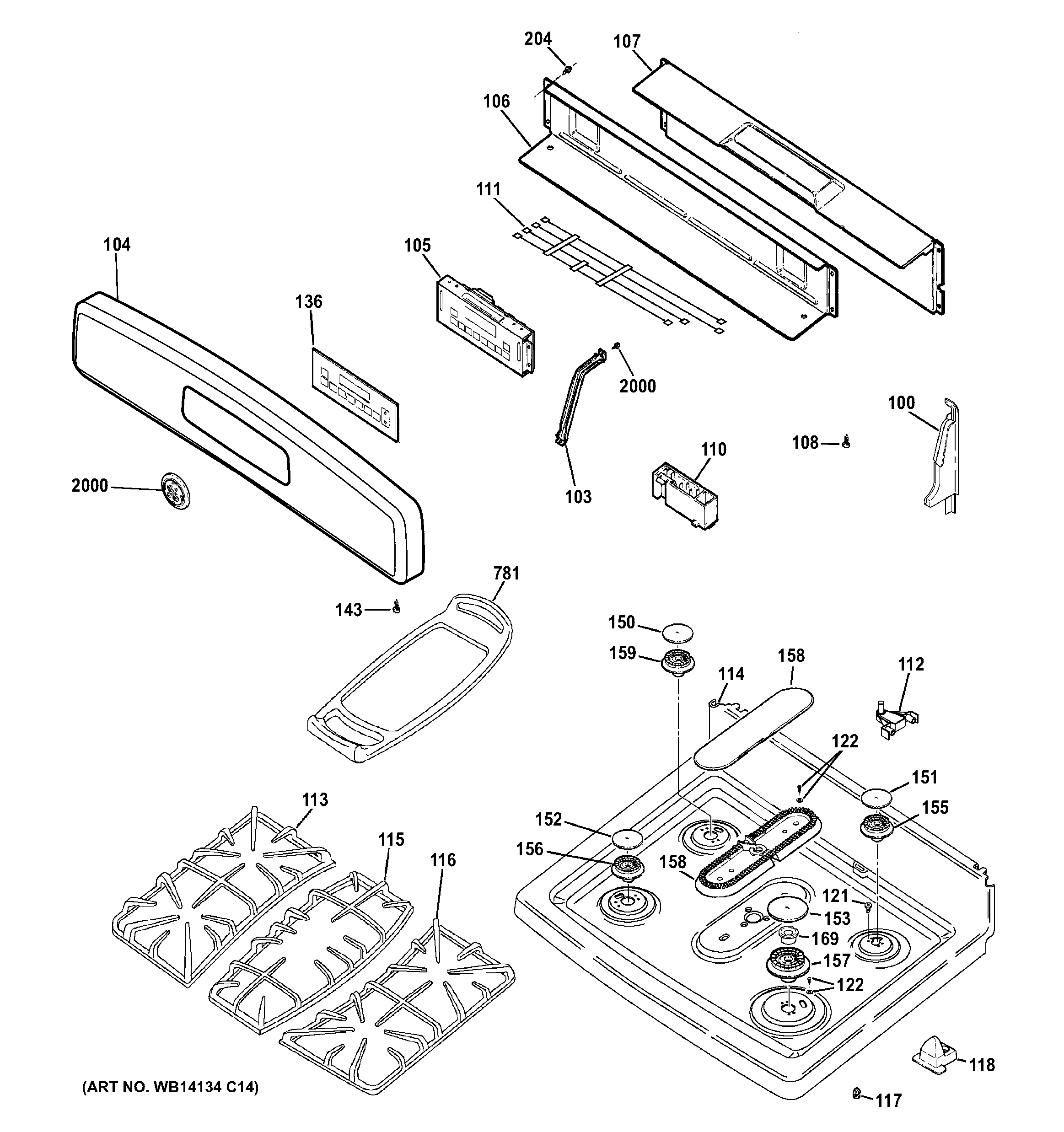

JGB840SET3SS CONTROL PANEL & COOKTOP

Products

PositionProduct
100GEN WB07K10246
100GEN WB07K10247
103GEN WB02K10155
104GEN WB36K10786
105WB27K10319 GE Oven Control Board
106WB34K10123 GE Oven Back Cover Assembly
107WB34K10129 GE Lower Back Cover
110WB13X26360 GE Oven Spark Module
111IGNIT HARNESS HV
112WB14K10003 GE Range Top Hinge
113GEN WB31K10237
114GEN WB62K10156
115GEN WB31K10239
116GEN WB31K10238
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
121GEN WB01K0078
122WB01K10106 GE Oven Circuit Screw
122WB1K5119 GE Oven Screw
136GEN WB27K10409
143SCREW MTG END CAP
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158WB16K10076 GE Oven Oval Burner Assembly
159WB16K10055 GE Oven Burner Base
169WB16K10083 GE Oven Venturi 15K LP
204GEN WB01K10111
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
781WB31X23201 GE Oven Reversible Griddle
2000WB02T10359 GE Oven Badge
