JGB860BEJ2TS UPPER OVEN

JGB860BEJ2TS UPPER OVEN

Written by

in

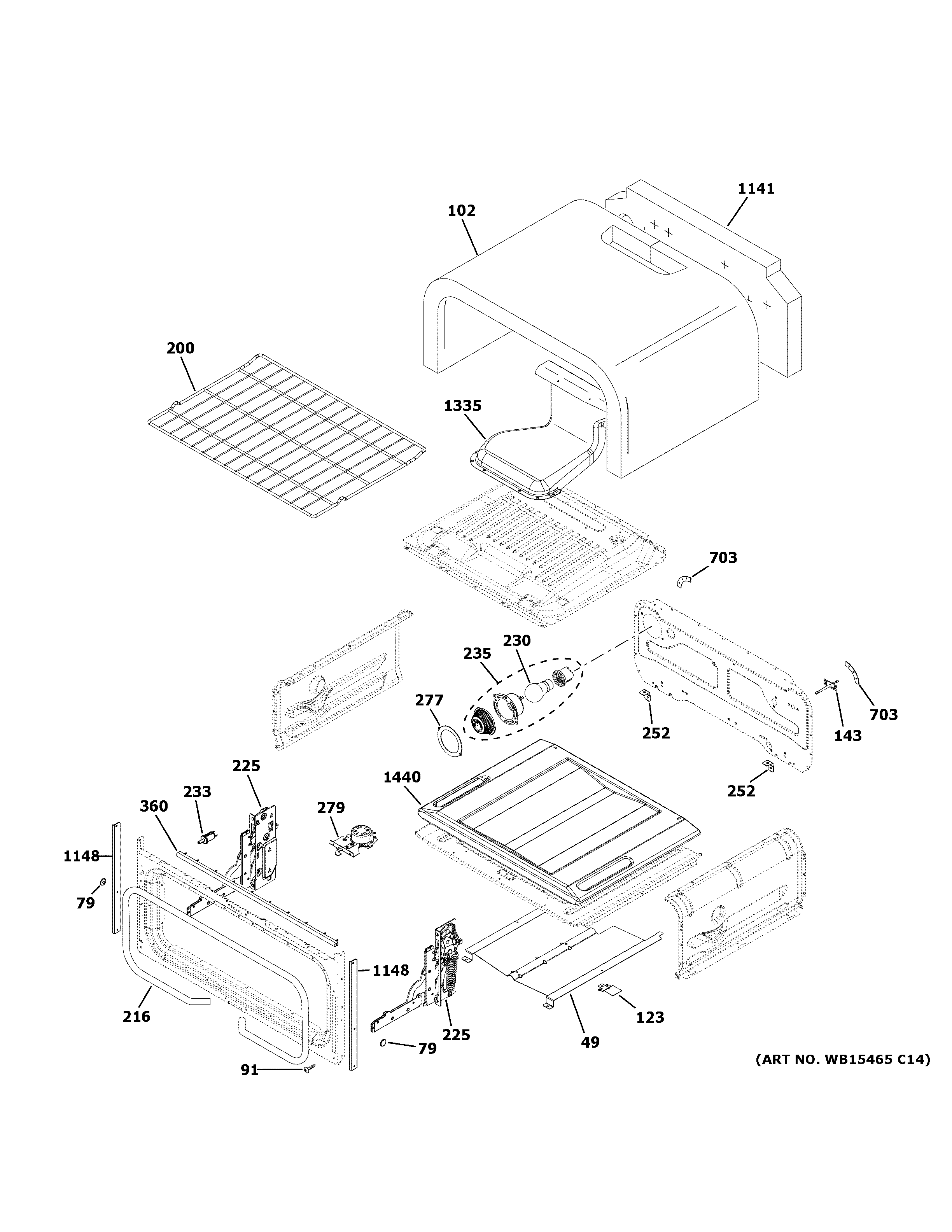

JGB860BEJ2TS UPPER OVEN

Products

PositionProduct
49WB49K10029 GE Oven Bake Deflector Upper Center
79SPACER SIDE
91WB01T10008 GE Oven Screw 10-32
102INSULATION OVEN WRAP
123WB49K10036 GE Bake Deflector Component
143WB24X25056 GE Oven Sensor Assembly
200OVEN RACK
216WB32K10047 GE Oven Gasket
225WB10X28782 GE Oven Right-Hand Hinge Assembly
230RANGE ONLY 40W 120V APPL BULB
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
252WB2K3 GE Angle Support
277WB32K10044 GE Oven Light Gasket
279WB10X24930 GE Oven Automatic Latch
360WB35X25645 GE Drawer Gasket Assembly
703BRACKET OVEN
1141INSULATION OVEN BACK
1148WB34X24995 GE Side Post
1335WB34X20597 GE Upper Vent Assembly
1440WB63X24934 GE Oven Bottom
