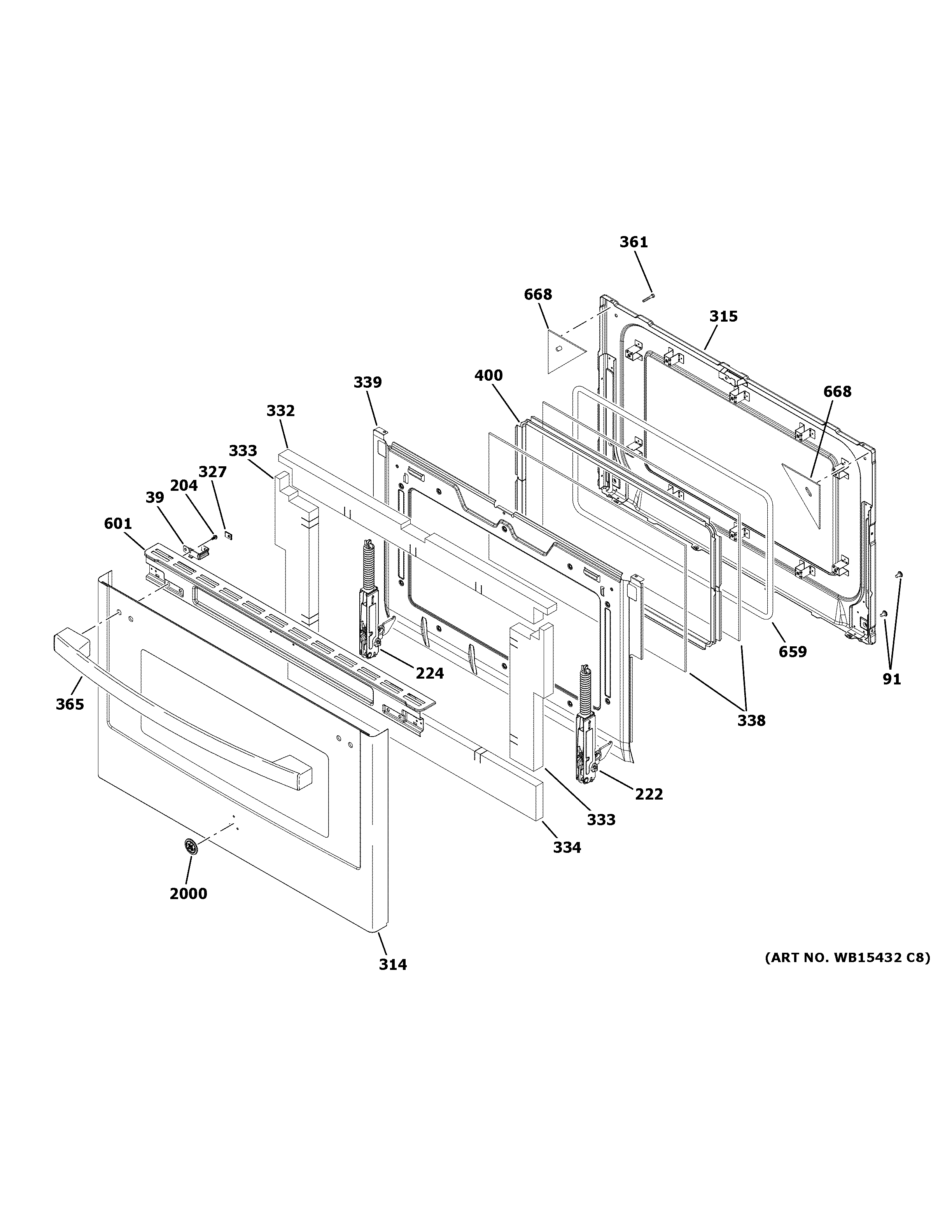

JGB860DEJ7BB LOWER DOOR

JGB860DEJ7BB LOWER DOOR

Written by

in

JGB860DEJ7BB LOWER DOOR

Products

PositionProduct
39BRACKET HANDLE
91WB01T10008 GE Oven Screw 10-32
204WB1K5062 GE Oven Screw
222WB10X24916 GE Oven Door Hinge
224WB10X24917 GE Door Hinge
314WB56X24921 GE Oven Glass Door Panel Assembly
315WB56X24931 GE Oven Liner Door Weld Assembly
327WB1K2 GE Oven Speednut
332WB34X21727 GE Oven Door Insulation
333WB34X21726 GE Oven Door Insulation
334WB34X21728 GE Oven Door Insulation
338WB57K10155 GE Oven Crystal Window
339WB56K10079 GE Oven Insulation Guard
361WB01X32512 GE Screw 10-24
365WB15X35053 GE Black Handle
400WB34X28741 GE Oven Frame Window Assembly
601WB56X25944 GE Top Cover Assembly
659WB35X21685 GE Oven Cord Fiberglass
668WB35X21691 GE Oven Door Insulation
2000GE BADGE GRAY
