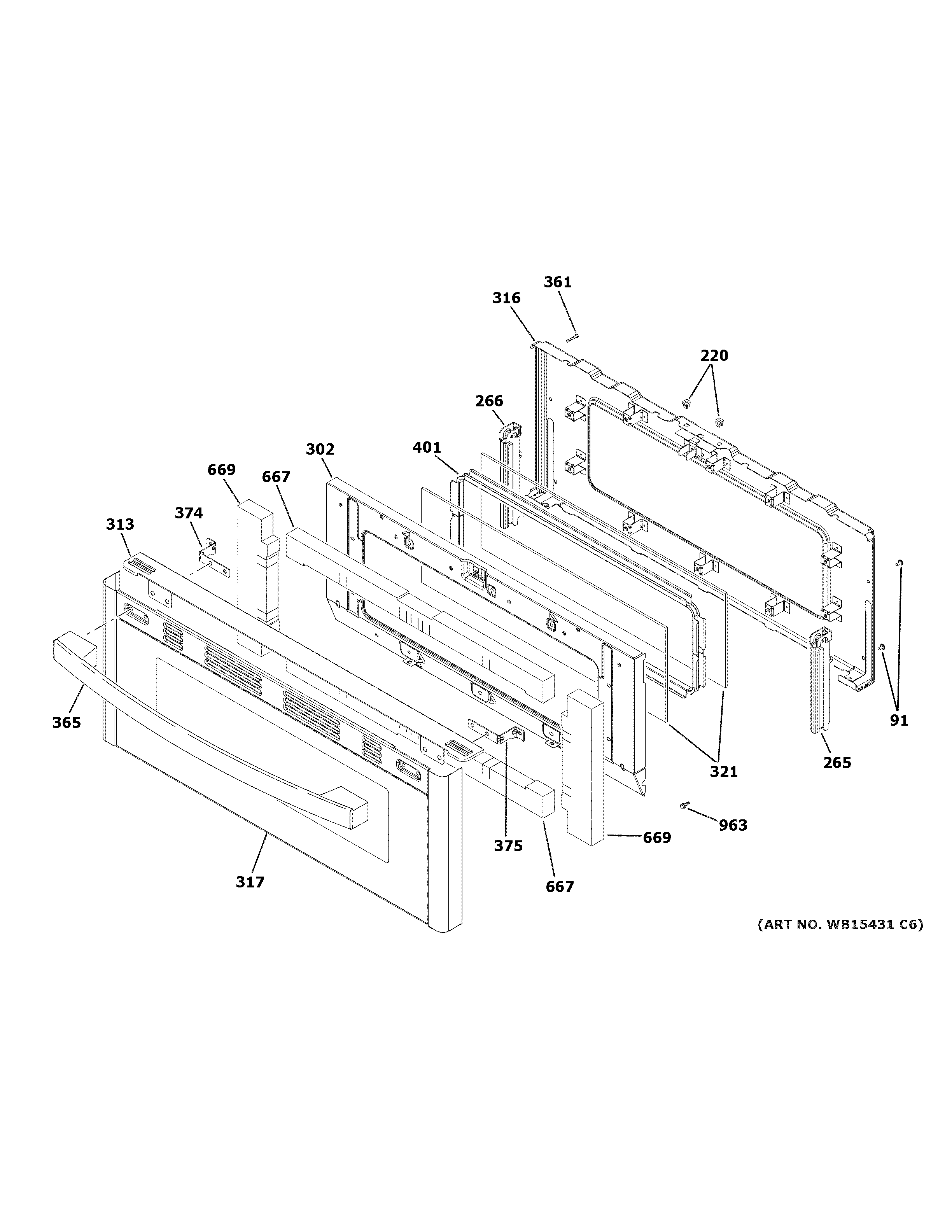

JGB860EEJ7ES UPPER DOOR

JGB860EEJ7ES UPPER DOOR

Written by

in

JGB860EEJ7ES UPPER DOOR

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
220GEN WB02K0008
265WB10X29635 GE Oven Right Hand Receiver Hinge
266WB10X29636 GE Oven Left Hand Hinge Receiver
302WB35X21704 GE Insulation Guard
313WB07X29140 GE Vent Trim Cover
316WB34X28839 GE Oven Door Liner Assembly
317WB56X24954 GE Oven Glass Door Assembly
321WB57K10156 GE Oven Crystal Window
361WB01X32512 GE Screw 10-24
365WB15X35050 GE Stainless Steel Handle
374WB02X24913 GE Handle Bracket
375WB02X24914 GE Handle Bracket
401WB34X28740 GE Window Frame Assembly
667WB34X21730 GE Door Insulation
669WB34X21729 GE Insulation Door
963WB01K10116 GE Oven Screw 10-16
