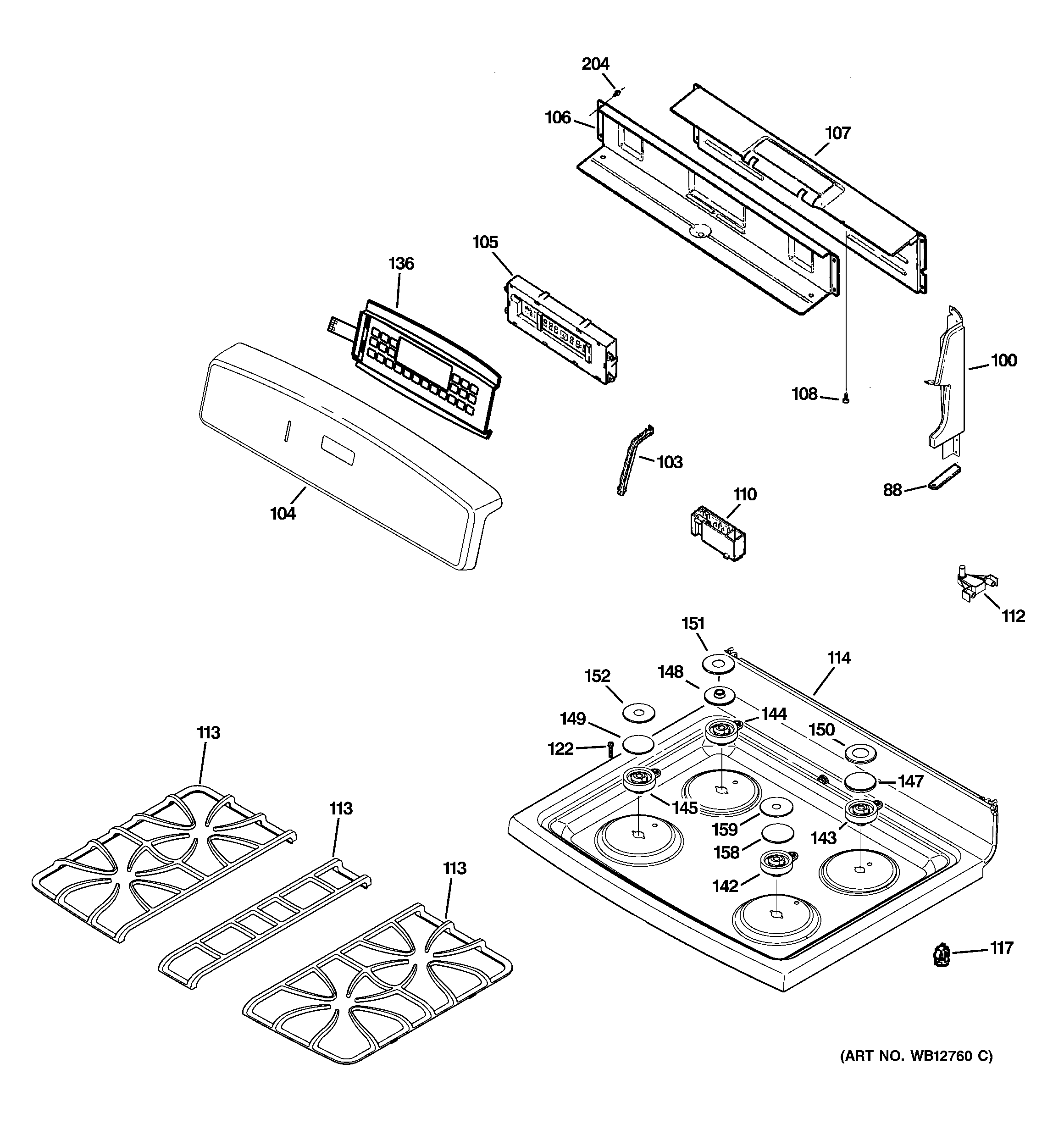

JGB900BEF2BB CONTROL PANEL & COOKTOP

JGB900BEF2BB CONTROL PANEL & COOKTOP

Written by

in

JGB900BEF2BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88WB2K64 GE Oven Felt Pad Black
100GEN WB07K10184
100GEN WB07K10183
103GEN WB02K10065
104GEN WB36K10296
105GEN WB27K10149
105GEN WB27K10092
106GEN WB34K10063
107GEN WB34K10062
108WB01T10016 GE Oven Screw 8-18 AB Hex
108WB01K10030 GE Screw Assembly
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5716
110GEN WB13K0025
110GEN WB18K10023
112WB14K10003 GE Range Top Hinge
113GEN WB31K10071
113GEN WB31K10072
113GEN WB31K10073
114GEN WB62K10075
117WB14K10004 GE Oven Pin Locator
122GEN WB01K10021
136GEN WB57K10081
142WB16T10032 GE Oven Front Base Burner
143WB16T10031 GE Oven Small Burner Base
144WB16T10030 GE Oven Medium Base Burner
145WB16T10033 GE Oven Large Base Burner
147WB16K10036 GE Oven Small Burner Head
148WB16T10029 GE Burner Head
149GEN WB16K10033
150GEN WB13T10024
151GEN WB13T10023
152GEN WB13T10029
158GEN WB16K10034
159GEN WB13T10028
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
