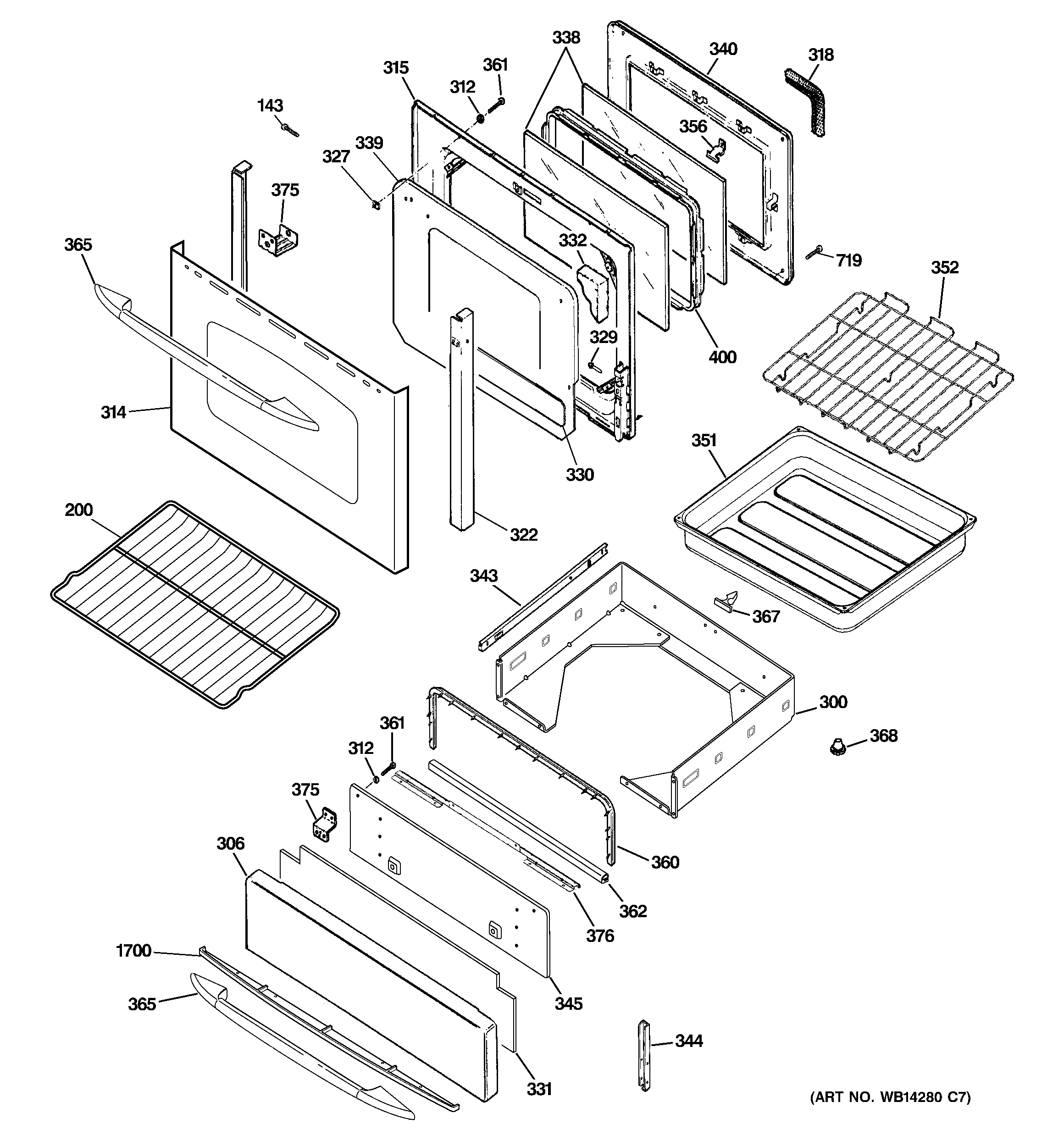

JGB900SEP1SS DOOR & DRAWER PARTS

JGB900SEP1SS DOOR & DRAWER PARTS

Written by

in

JGB900SEP1SS DOOR & DRAWER PARTS

Products

PositionProduct
143SCREW MTG END CAP
200WB48T10095 GE Oven Rack
300WB58K10010 GE Oven Frame Drawer & Slide Assembly
306GEN WB55K10053
312WB1X119D GE Oven Range Washer
314GEN WB57K10144
315GEN WB55K10034
318WB35X29668 GE Oven Door Gasket Assembly
322GEN WB07K10016
322GEN WB07K10019
327WB01K10093 GE Oven Speednut
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
331GEN WB35K10053
332WB35K10149 GE Oven Side Door Insulation
332WB35K10150 GE Bottom Door Oven Insulation
332GEN WB35K10190
338CRYSTAL WINDOW
339WB56K10037 GE Door Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB39K10027 GE Range Internal Slide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10024 GE Oven Drawer Liner
351GEN WB48K10009
352WB48K10010 GE Oven Baking Drawer Rack
356GEN WB02K0056
360WB04K10017 GE Oven Drawer Gasket Assembly
361WB01K10047 GE Drawer Screw 10-32 HXW 9/16
361GEN WB01K0065
362WB04K10018 GE Oven Lower Gasket
365WB15T10163 GE Oven Stainless Steel Handle
365GEN WB15K10105
367WB02K10111 GE Oven Strike
368WB2K15 GE Oven Grate Bumper
368WB02K10112 GE Oven Bumper Blue
375CLIP WINDOW
375GEN WB02K10268
376WB63K10062 GE Oven Drawer Bracket
400WB34K10087 GE Oven Window Spacer Assembly
719WB1X536 GE Oven Screw
1700GEN WB07K10245
