JGB900SEP1SS GAS & BURNER PARTS

JGB900SEP1SS GAS & BURNER PARTS

Written by

in

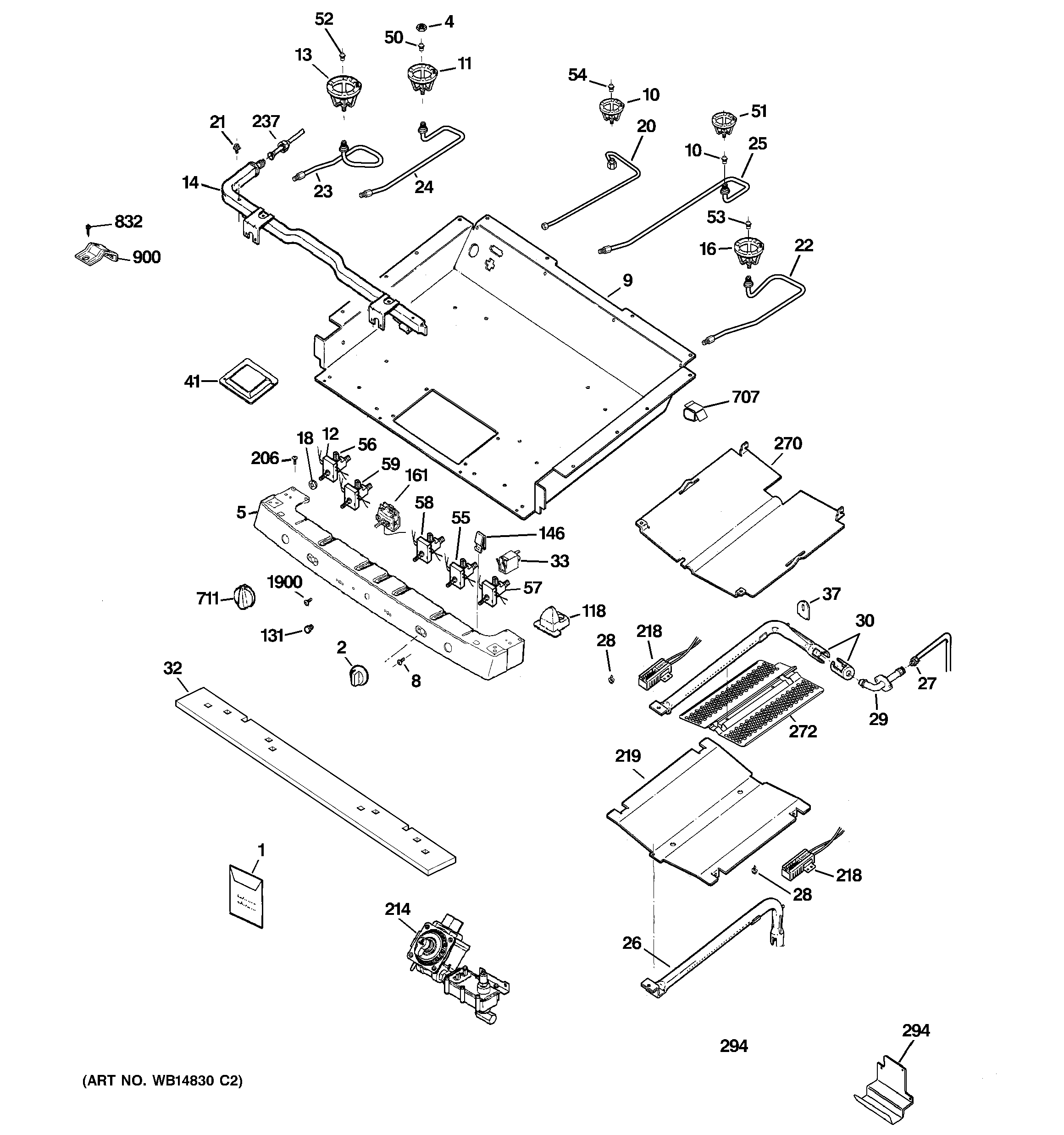

JGB900SEP1SS GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21476
1GEN 31-21457
1WB02T10111 GE Cleaner Stainless Steel
1GEN 49-85170
1GEN WB28K10617
2WB03X43926 GE Burner Knob Kit
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10871
8WB01K10002 GE Oven Screw 8-32
9BOX BURNER SP
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10023
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10384
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
18WB37K10012 GE Thermostat Cover
20GEN WB28K10596
20GEN WB07K10378
21WB01K10066 GE Oven Screw 8 HD 10-32
22GEN WB28K10424
23GEN WB28K10590
24GEN WB28K10592
25ORIFICE HOLDER RR NG
26GEN WB16K10054
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10067
32INSULATION BURNER BOX
33WB25K10010 GE Oven Light Indicator Pilot
37WB34K14 GE Igniter Cover
41WB63K10063 GE Burner Box Cover
50WB28K10023 GE Oven Orifice
51WB28K10031 GE Oven Orifice
52WB28K10214 GE Oven Orifice
53GEN WB28K10216
54WB28K10215 GE Oven Orifice
55WB21K10096 GE Oven Burner Valve 270
57WB21K10080 GE Oven Burner Valve 270 Hi-Cap
58WB21K10097 GE Oven Burner Valve
59WB21K10119 GE Oven Burner Valve 270
118GEN WB14K10005
131WB25K10009 GE Oven Lens
146GEN WB02K0052
161GEN WB20K10024
206WB01K10091 GE Oven Screw
214WB19K10043 GE Oven Gas Valve and Regulator Assembly
218WB13K21 GE Oven Igniter with 7 Leads
218WB13X25261 GE Oven Igniter Glowbar
219OVEN DEFLECTOR
237GEN WB28K10597
237GEN WB28K10587
270WB49K10025 GE Range Deflector
272WB49K10045 GE Broil Shield
294WB63K10054 GE Terminal Cover
707WB02K10267 GE Wire Clip
711GEN WB03K10298
