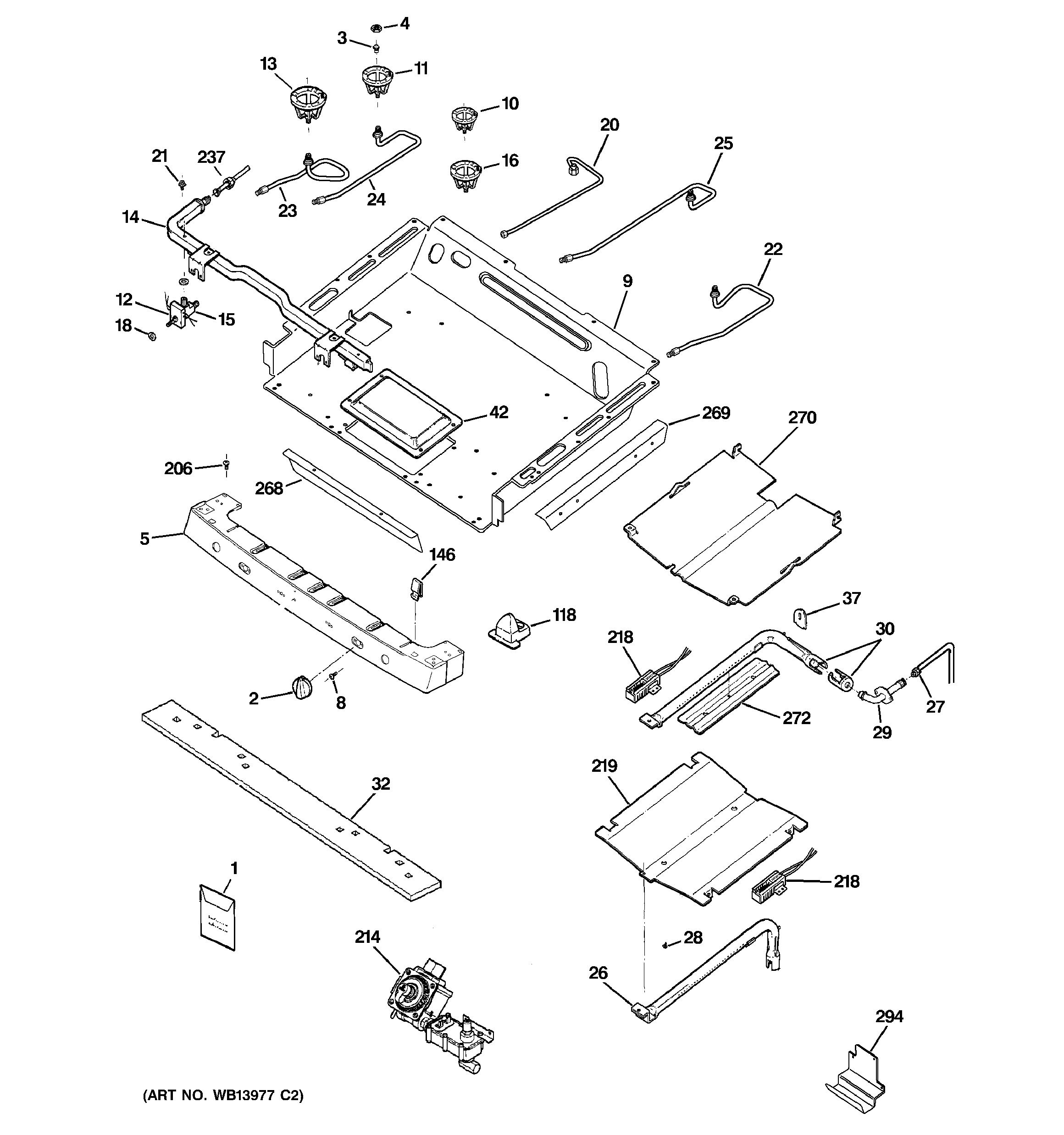

JGB908SEL3SS GAS & BURNER PARTS

Written by

Products

Position	Product
1	GEN 49-85127
1	GEN 31-21310
1	GEN WB28K10364
1	GEN WB02K0101
2	WB03X43926 GE Burner Knob Kit
3	WB28K10031 GE Oven Orifice
3	WB28K10288 GE Oven Orifice Spud
3	GEN WB28K10287
3	GEN WB28K10216
3	WB28K10214 GE Oven Orifice
3	WB28K10215 GE Oven Orifice
4	WB01K10037 GE Oven Economic Nut
5	GEN WB36K10624
8	WB01K10002 GE Oven Screw 8-32
9	GEN WB63K10037
10	WB02K10360 GE Oven Circuit Bracket Small
11	WB02K10361 GE Oven Orifice Holder
12	GEN WB24K10024
12	GEN WB24K10023
13	WB02K10362 GE Oven CKT Bracket MDM & L
14	GEN WB28K10380
15	WB21K10117 GE Oven Burner Valve
15	WB21K10099 GE Oven Burner Valve
15	WB21K10097 GE Oven Burner Valve
15	WB21K10096 GE Oven Burner Valve 270
15	WB21K10119 GE Oven Burner Valve 270
16	WB02K10082 GE Oven Bracket XL Cooktop
18	WB2K24 GE Oven Valve Cover
20	ORIFICE HOLDER ASM NG
21	WB01K10065 GE Oven Screw 8 HD 12-24
21	WB01K10066 GE Oven Screw 8 HD 10-32
22	GEN WB28K10424
23	WB28K10388 GE Oven Left Orifice Holder
24	ORIFICE HOLDER LR NG
25	ORIFICE HOLDER RR NG
26	WB16K10035 GE Range Oven Burner Bar with Igniter
27	WB28K10168 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	GEN WB28K10310
30	GEN WB16K10004
32	INSULATION BURNER BOX
37	WB34K14 GE Igniter Cover
42	GEN WB63K0022
118	GEN WB14K10005
146	GEN WB02K0052
206	WR01X10065 GE Screw
214	WB19K10043 GE Oven Gas Valve and Regulator Assembly
218	WB13K21 GE Oven Igniter with 7 Leads
218	WB13X25261 GE Oven Igniter Glowbar
219	OVEN DEFLECTOR
237	WB28X24772 GE Oven Gas Tube Connector
268	GEN WB35K10047
269	GEN WB35K10048
270	DEFLECTOR
272	WB34K10 GE Oven Broil Shield
294	GEN WB63K10040
