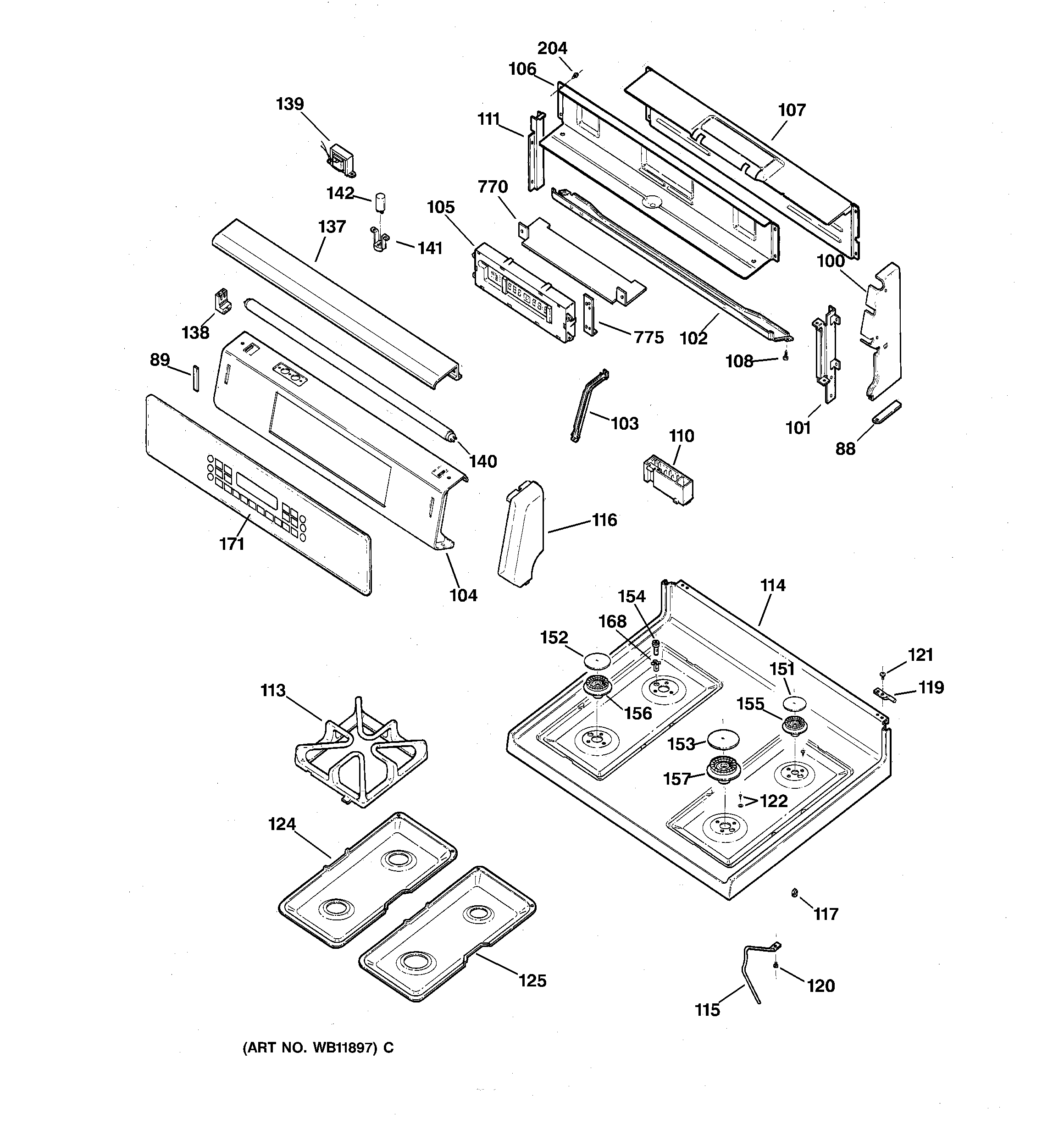

JGB910BEC1BB CONTROL PANEL & COOKTOP

JGB910BEC1BB CONTROL PANEL & COOKTOP

Written by

in

JGB910BEC1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88WB2K64 GE Oven Felt Pad Black
89GEN WB02K0062
100GEN WB07K10052
100GEN WB07K10051
101GEN WB37K0017
101GEN WB37K0018
102GEN WB07K10056
103GEN WB02K10005
104GEN WB36K10196
105GEN WB27K10034
106GEN WB34K10041
107GEN WB34K10036
108WB1X5364 GE Oven Mounting Screw
108WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
110GEN WB13K0025
110WB18K10035 GE Oven Wire Harness
111GEN WB34K0005
113GEN WB31K10037
114GEN WB62K10033
115WB2K91 GE Oven Top Support
116GEN WB07K10054
116GEN WB07K10053
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
124WB34K10017 GE Oven Terminal Block Cover
125WB34K10009 GE Oven Double Burner Drip Pan
137GEN WB34K10005
138GEN WB08K0006
139GEN WB08K0003
140GEN WB08K0008
141GEN WB08K0010
142GEN WB06K0007
151WB29K10009 GE Oven Burner Cap
152WB29K10001 GE Oven Burner Cap
153WB29K10006 GE Oven Burner Cap
154GEN WB13K10003
155GEN WB16K10006
156BURNER
157GEN WB16K10007
168WB01K10112 GE Range Oven Electrode Clip
171GEN WB57K10045
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770GEN WB35K10014
775CLIP WINDOW
