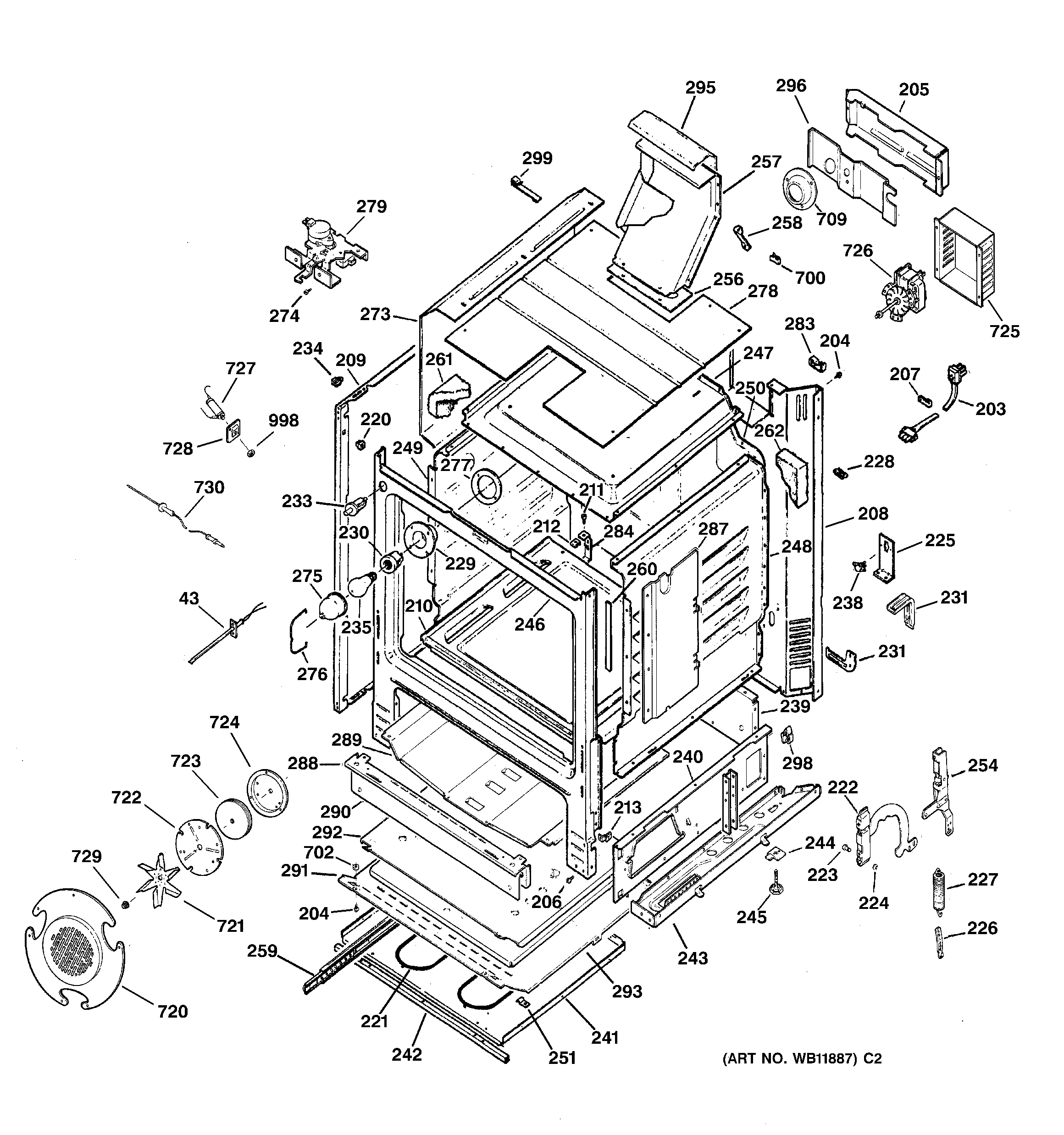

JGB910CEC2CC BODY PARTS

JGB910CEC2CC BODY PARTS

Written by

in

JGB910CEC2CC BODY PARTS

Products

PositionProduct
43WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
203WB18K10036 GE Oven Line Cord
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
205GEN WB34K0006
206WR01X10065 GE Screw
207WB2K36 GE Oven Clamp Cable
208GEN WB63K10020
209GEN WB62K10039
210GEN WB53K0035
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221GEN WB44K10006
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
225GEN WB02K10030
226GEN WB02K0011
227GEN WB09K0005
228GEN WB02X7066
229GEN WB08K0001
230GEN WB08K0002
231WB2K20 GE Oven Bracket Assembly
231GEN WB02K0012
233WB24T10147 GE Oven SPDT Light Switch
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
238GEN WB20K10006
239GEN WB63K0025
240GEN WB63K0002
240WB63K3 GE Oven Panel Side Broil
241RANGE BOTTOM
242GEN WB63K0005
243GEN WB63K0007
243GEN WB63K0006
244GEN WB02K0001
245GEN WB02X7701
246GEN WB63K10018
247WB53K10004 GE Oven Top
248GEN WB53K0002
249GEN WB53K10008
250GEN WB53K10009
251WB02K10023 GE Oven Heating Element Clamp
254GEN WB10K0013
254GEN WB01K0053
254GEN WB10K0014
256GEN WB32K0001
257WB38K10001 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259GEN WB39K10008
259GEN WB39K10009
260WB32K2 GE Oven Gasket Seal
261GEN WB35K0007
262GEN WB35K10012
273GEN WB53K0012
273GEN WB53K0011
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278CLIP WINDOW
279WB02K10136 GE Oven Motor Switch Assembly
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
287WB34K30 GE Radiation Guard
287GEN WB34K0031
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
290GEN WB34K0012
291WB63K16 GE Oven Bottom Guard
292GEN WB63K0017
293GEN WB63K0018
295GEN WB35K10015
296WB34K13 GE Oven B Panel Cover
298GEN WB02K0037
299GEN WB02K0038
700RETAINER-INSULATION
702GEN WB01K0024
709GEN WB08K0004
720WB34K10037 GE Oven Front Fan Cover
721WB2X8351 GE Oven Blade Fan
722WB34K10038 GE Oven Fan Cover Back
723WB35K10013 GE Fan Insulation
724WB02K10034 GE Range Fan Support
725GEN WB34K10039
726GEN WB26K10001
727HARNESS-MEAT PROBE
728GEN WB02X8309
729WB02T10017 GE Oven Nut
730WB20T10024 GE Oven Thermistor Probe
998WB1X5572 GE Oven Nut
