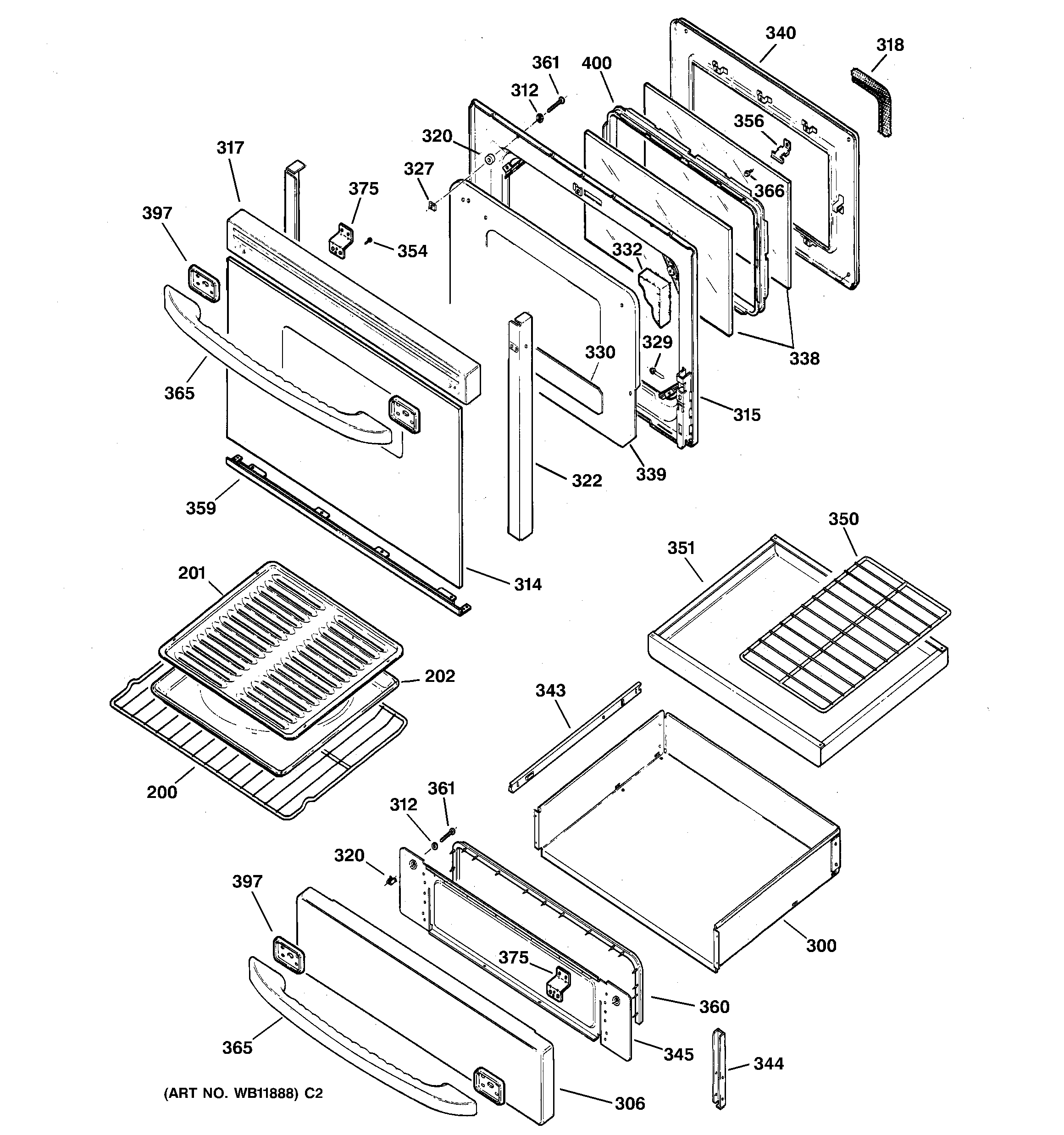

JGB910CEC3CC DOOR & DRAWER PARTS

JGB910CEC3CC DOOR & DRAWER PARTS

Written by

in

JGB910CEC3CC DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
300GEN WB58K10005
306GEN WB55K10007
312WB1X119D GE Oven Range Washer
314GEN WB57K10043
315GEN WB55K0025
317GEN WB07K10111
318WB4K1 GE Oven Gasket Door
320WB2K14 GE Oven Spacer
322GEN WB07K10105
322GEN WB07K10106
327WB01K10093 GE Oven Speednut
329WB1X558D GE Oven Screw Package
330GEN WB35K0033
330GEN WB35K0022
332GEN WB35K0024
332GEN WB35K0025
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
344WB39K20 GE Oven Mounting Bracket Drawer
345COVER DRAWER
350GEN WB48K10002
351GEN WB48K10005
354WB01K10009 GE Oven Handle Mounting Screw 10-32
356GEN WB02K0056
359WB07K10269 GE Oven Bottom Trim Assembly
360GEN WB04K10003
361WB1K63 GE Oven Screw
361WB1X5731D GE Oven Nut Package of 12
365GEN WB15K10017
366WB1X536 GE Oven Screw
375GEN WB02K10009
375CLIP WINDOW
397GEN WB07K10113
400WB34K10087 GE Oven Window Spacer Assembly
