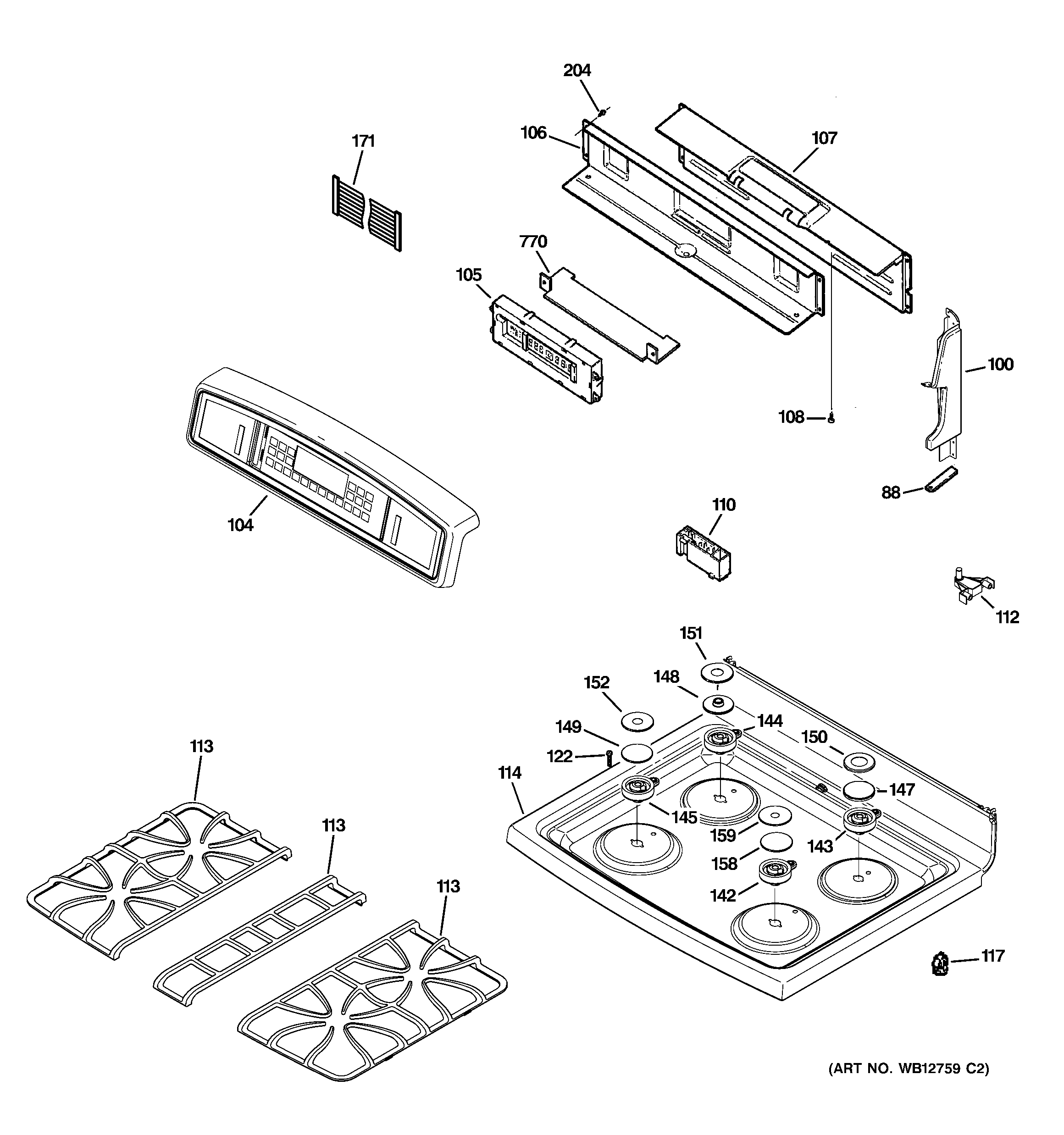

JGB915BEF1BB CONTROL PANEL & COOKTOP

JGB915BEF1BB CONTROL PANEL & COOKTOP

Written by

in

JGB915BEF1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88WB2K64 GE Oven Felt Pad Black
100GEN WB07K10183
100GEN WB07K10184
104GEN WB36K10307
104GEN WB36K10515
105GEN WB27K10144
105GEN WB27K10086
106GEN WB34K10064
107GEN WB34K10062
108WB01T10016 GE Oven Screw 8-18 AB Hex
108WB1X5364 GE Oven Mounting Screw
108WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
108WB01K10030 GE Screw Assembly
108GEN WB01X5716
110GEN WB13K0025
110GEN WB18K10019
112WB14K10003 GE Range Top Hinge
113GEN WB31K10071
113GEN WB31K10073
113GEN WB31K10072
114GEN WB62K10075
117WB14K10004 GE Oven Pin Locator
122GEN WB01K10021
142WB16T10032 GE Oven Front Base Burner
143WB16T10031 GE Oven Small Burner Base
144WB16T10030 GE Oven Medium Base Burner
145WB16T10033 GE Oven Large Base Burner
147WB16K10036 GE Oven Small Burner Head
148WB16T10029 GE Burner Head
149GEN WB16K10033
150GEN WB13T10024
151GEN WB13T10023
152GEN WB13T10029
158GEN WB16K10034
159GEN WB13T10028
171GEN WB18K10020
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770GEN WB35K10037
