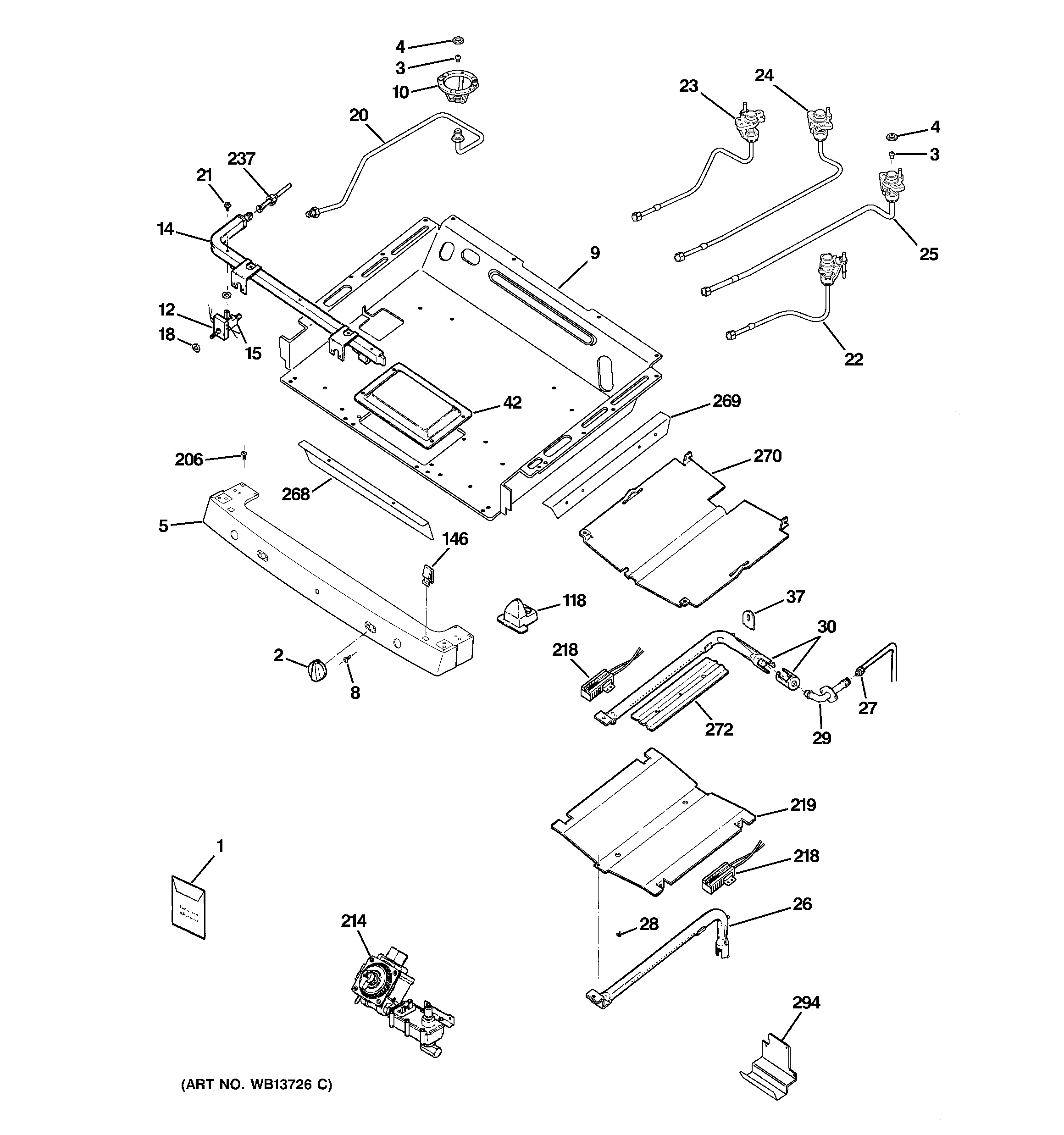

JGB916BEK5BB GAS & BURNER PARTS

JGB916BEK5BB GAS & BURNER PARTS

Written by

in

JGB916BEK5BB GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21185
1GEN 49-85101
1GEN WB28K10297
2GEN WB03K10135
3GEN WB28K10260
3GEN WB28K10287
3GEN WB28K10258
3GEN WB28K10259
3GEN WB28K10261
3GEN WB28K10280
3WB28K10288 GE Oven Orifice Spud
3GEN WB28K10282
3GEN WB28K10283
3GEN WB28K10284
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10523
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
10WB02K10360 GE Oven Circuit Bracket Small
12GEN WB24K10027
12GEN WB24K10002
14GEN WB28K10380
15WB21K10099 GE Oven Burner Valve
15WB21K10117 GE Oven Burner Valve
15WB21K10096 GE Oven Burner Valve 270
15WB21K10097 GE Oven Burner Valve
15GEN WB21K10065
18WB2K24 GE Oven Valve Cover
20ORIFICE HOLDER ASM NG
21GEN WB01K10044
21WB01K10066 GE Oven Screw 8 HD 10-32
21WB1K83 GE Oven Screw
22GEN WB28K10295
23GEN WB28K10291
24GEN WB28K10292
25GEN WB28K10293
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10004
37WB34K14 GE Igniter Cover
42GEN WB63K0022
118GEN WB14K10005
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K10043 GE Oven Gas Valve and Regulator Assembly
218WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
268GEN WB35K10047
269GEN WB35K10048
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294WB63K10054 GE Terminal Cover
