JGB918CEK7CC CONTROL PANEL & COOKTOP

JGB918CEK7CC CONTROL PANEL & COOKTOP

Written by

in

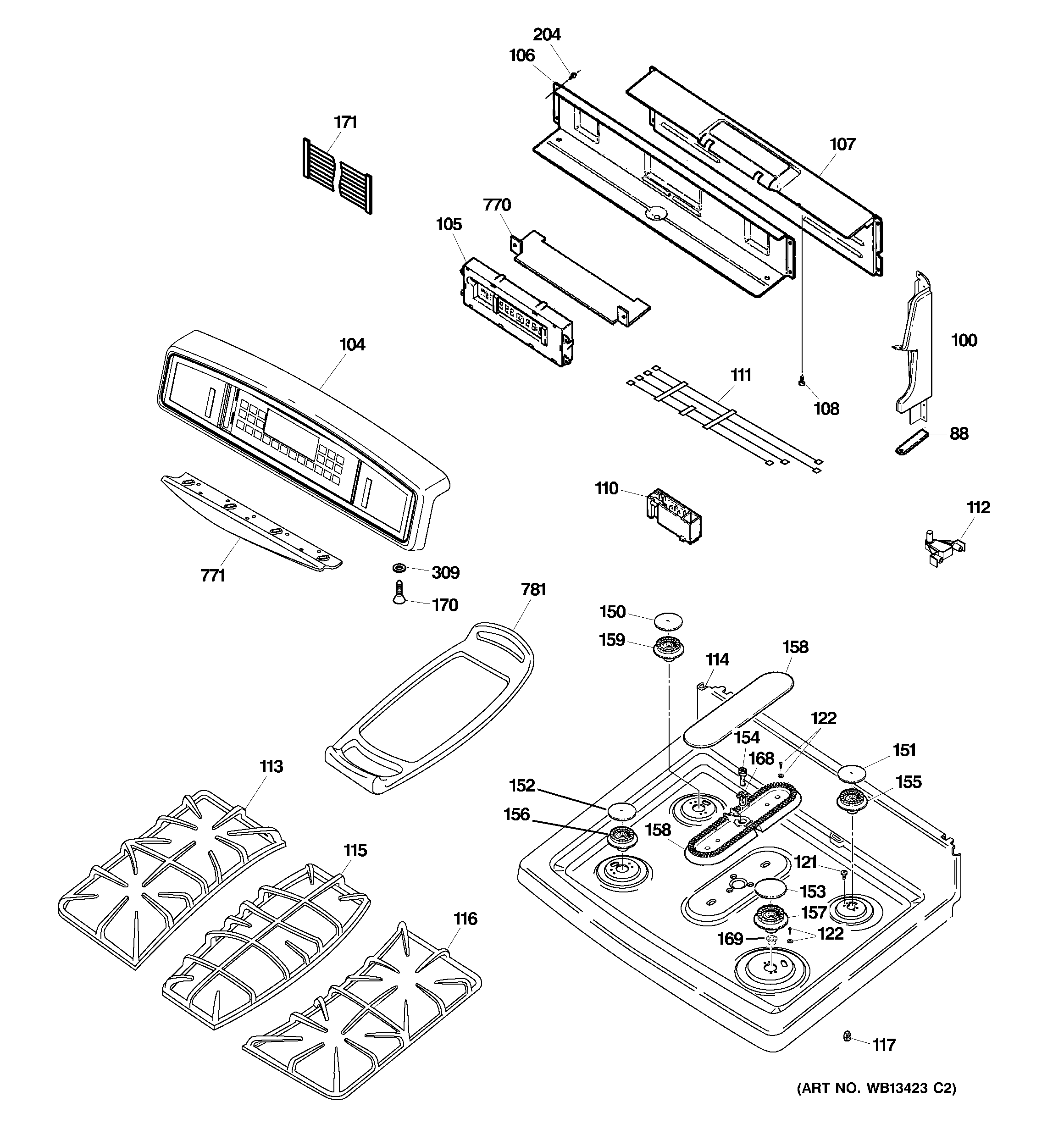

JGB918CEK7CC CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100GEN WB07K10186
100GEN WB07K10185
104GEN WB36K10531
105GEN WB27K10176
106GEN WB34K10064
107GEN WB34K10062
108WB01T10016 GE Oven Screw 8-18 AB Hex
108WB1X5364 GE Oven Mounting Screw
108WR01X10389 GE Refrigerator Screw 8-18 AB PHR 1/2 S
110WB13X26360 GE Oven Spark Module
110WB18K10042 GE Oven Harness Module
111GEN WB18K10041
112WB14K10003 GE Range Top Hinge
113GEN WB31K10210
114GEN WB62K10112
115GEN WB31K10212
116GEN WB31K10211
117WB14K10004 GE Oven Pin Locator
121WB1K5119 GE Oven Screw
122GEN WB01K10008
150CAP-BURNER MED TAUPE
151CAP-BURNER SMALL TAUPE
152WB29X36765 GE Large Cap Burner Taupe Rep
153GEN WB28K10221
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158GEN WB16K10052
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
171GEN WB18K10028
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
204WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
204WB1K5062 GE Oven Screw
309WASHER
770GEN WB35K10037
771GEN WB35K10051
781WB31K10217 GE Oven Griddle Kit
