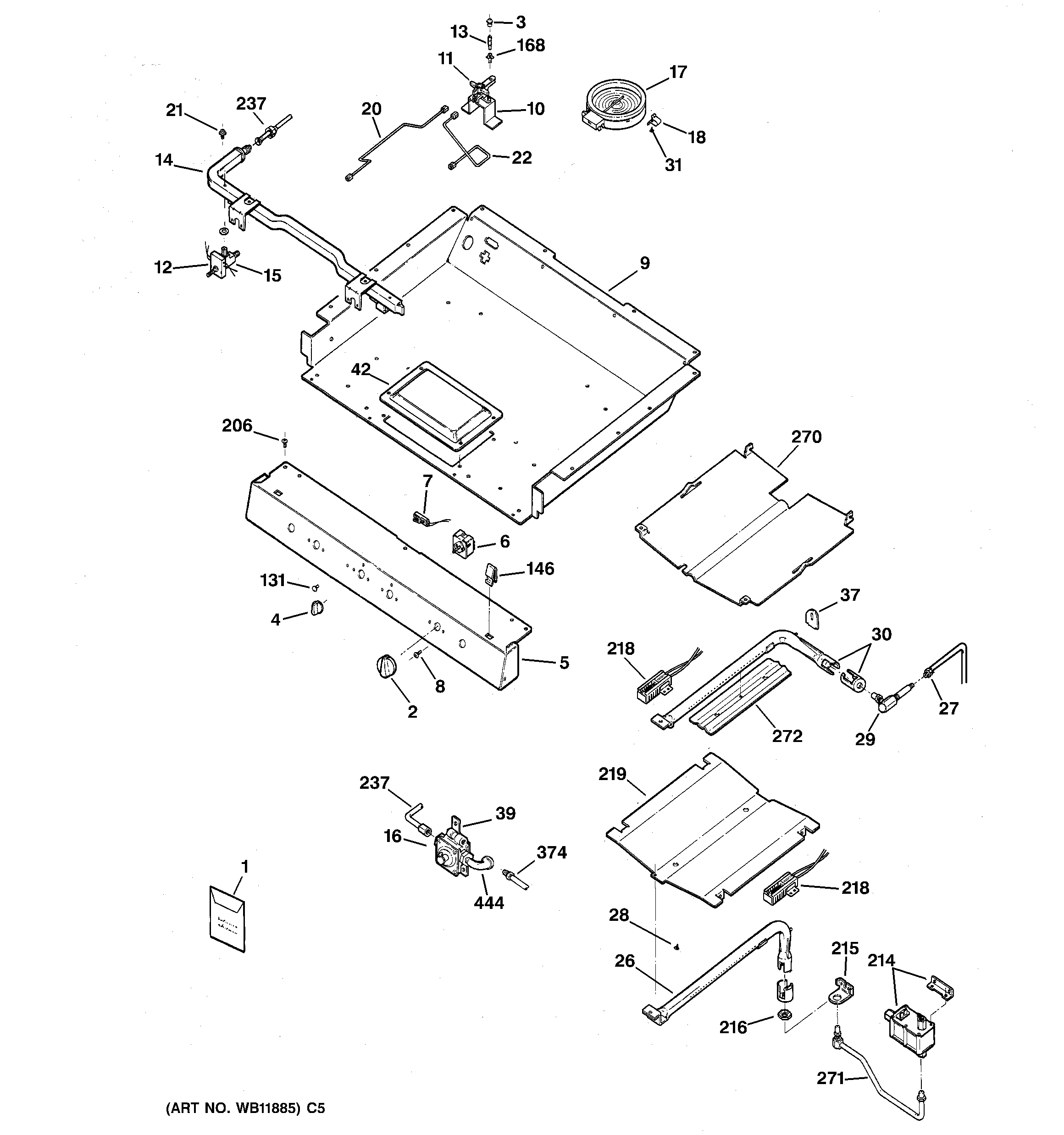

JGB920BEC4BB GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21029
1GEN 49-85035
1WB2K20 GE Oven Bracket Assembly
1PM10X310 GE Cerama Bryte Cooktop Cleaner
1GEN WB28K10117
2WB03X24084 GE Oven Black Knob Kit
3ORIFICE SPUD NG 1.52MM
3GEN WB28K10090
3ORIFICE SPUD NG 1.75MM
3GEN WB28K10086
3WB28K10288 GE Oven Orifice Spud
3GEN WB28K10087
4GEN WB03K10077
5GEN WB36K10205
6INFINITE SWITCH TOP ELEM
6GEN WB24K10006
7GEN WB25K10005
7WB25K10002 GE Stove Oven Cooktop Pilot Lamp
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K0023
10GEN WB02K10035
11GEN WB28K10082
11GEN WB28K10083
11GEN WB28K10084
12GEN WB24K10003
13WB13X27058 GE Igniter
14GEN WB28K10081
15GEN WB28K10098
15GEN WB28K10097
15GEN WB28K10096
16GEN WB19K10001
17GEN WB30K10007
18WB2K24 GE Oven Valve Cover
18COVER THERMOSTAT
18WB09T10002 GE Oven Radiant Spring
20GEN WB28K10095
20TUBE BURNER REAR
21WB1K83 GE Oven Screw
22GEN WB28K10093
22GEN WB28K10092
26WB16K10035 GE Range Oven Burner Bar with Igniter
27GEN WB28K0055
28WB1X1293 GE Oven Screw
29GEN WB28K10019
29GEN WB28K10018
30GEN WB16K10004
31GEN WB01K10028
37WB34K14 GE Igniter Cover
39GEN WB02K0088
42GEN WB63K0022
131WB25T10041 GE Oven Lens
146GEN WB02K0052
168WB01K10112 GE Range Oven Electrode Clip
206WR01X10065 GE Screw
214WB19K36 GE Oven Control Valve
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237GEN WB28K10021
270DEFLECTOR
271GEN WB28K0202
271GEN WB28K0060
272WB34K10 GE Oven Broil Shield
374GEN WB28K0150
444GEN WB28K0061
