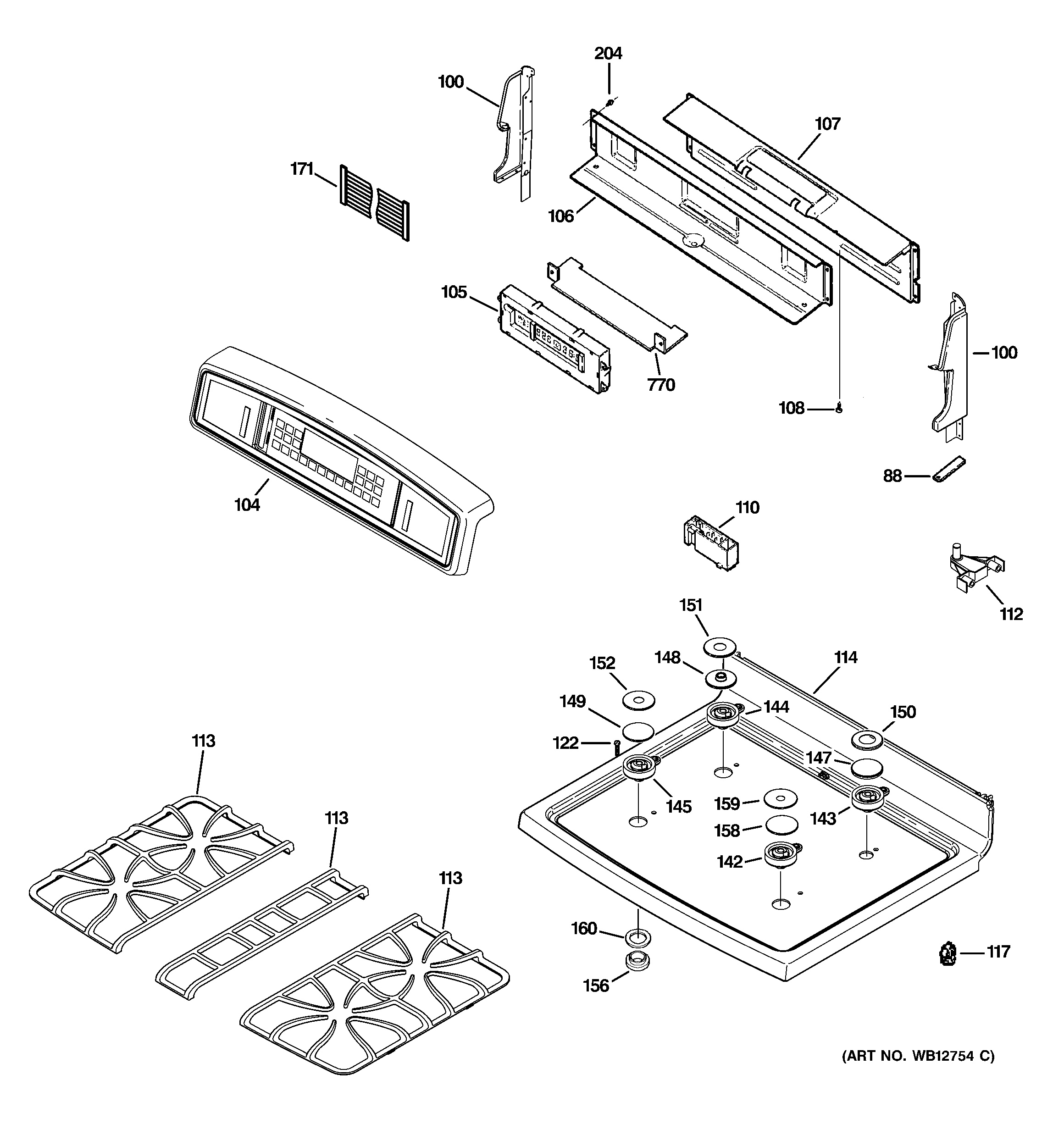

JGB920TEF2WW CONTROL PANEL & COOKTOP

JGB920TEF2WW CONTROL PANEL & COOKTOP

Written by

in

JGB920TEF2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100GEN WB07K10189
100GEN WB07K10188
104GEN WB36K10514
104GEN WB36K10311
105GEN WB27K10086
105GEN WB27K10144
106GEN WB34K10064
107GEN WB34K10062
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5874
108WB01T10016 GE Oven Screw 8-18 AB Hex
108WB01K10030 GE Screw Assembly
110GEN WB18K10023
110GEN WB13K0025
112WB14K10003 GE Range Top Hinge
113GEN WB31K10092
113GEN WB31K10091
113GEN WB31K10093
114GEN WB61K10018
117WB14K10004 GE Oven Pin Locator
122GEN WB01K10021
142WB16T10032 GE Oven Front Base Burner
143WB16T10031 GE Oven Small Burner Base
144WB16T10030 GE Oven Medium Base Burner
145WB16T10033 GE Oven Large Base Burner
147WB16K10036 GE Oven Small Burner Head
148WB16T10029 GE Burner Head
149GEN WB16K10033
150GEN WB13T10027
151GEN WB13T10026
152GEN WB13T10032
156GEN WB04K10011
156GEN WB04K10005
158GEN WB16K10034
159GEN WB13T10031
160GEN WB02K10063
160GEN WB02K10069
171GEN WB18K10020
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770GEN WB35K10037
