JGB928SEL1SS GAS & BURNER PARTS

Products

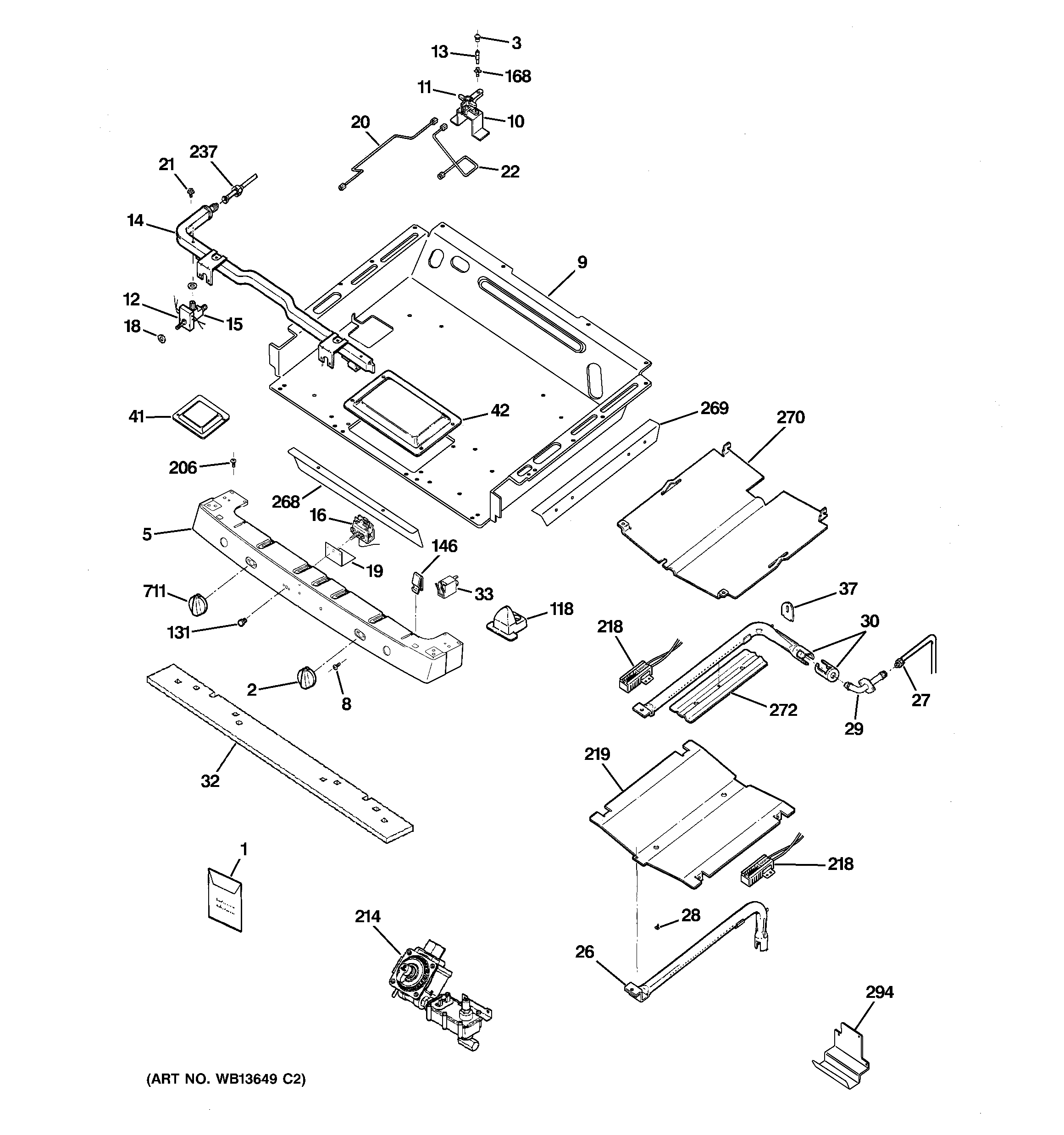

PositionProduct
1PM10X310 GE Cerama Bryte Cooktop Cleaner
1GEN 31-21187
1GEN 49-85097
1GEN WB28K10177
2WB03X43926 GE Burner Knob Kit
3GEN WB28K10151
3GEN WB28K10145
3GEN WB28K10148
3GEN WB28K10150
3GEN WB28K10152
3GEN WB28K10147
3GEN WB28K10146
5GEN WB36K10541
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10057
10GEN WB02K10035
11ORIFICE HOLDER BKT LARGE
11GEN WB28K10149
11GEN WB28K10142
11BURNER HOLDER BKT SMALL
12GEN WB24K10024
12GEN WB24K10023
13GEN WB13K10012
14GEN WB28K10379
15GEN WB21K10071
15GEN WB21K10046
15GEN WB21K10045
15GEN WB21K10044
16WB20K10017 GE Oven Thermostat
18WB2K24 GE Oven Valve Cover
19WB37K10012 GE Thermostat Cover
20GEN WB28K10140
20GEN WB28K10139
21WB1K83 GE Oven Screw
21WB01K10066 GE Oven Screw 8 HD 10-32
22GEN WB28K10137
22GEN WB28K10138
26GEN WB16K10054
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10308
30GEN WB16K10004
32INSULATION BURNER BOX
33WB25K10010 GE Oven Light Indicator Pilot
37WB34K14 GE Igniter Cover
41WB63K10063 GE Burner Box Cover
42GEN WB63K0022
118GEN WB14K10005
131WB25K10009 GE Oven Lens
146GEN WB02K0052
168WB01K10112 GE Range Oven Electrode Clip
206WR01X10065 GE Screw
206WB1X536 GE Oven Screw
214WB19K10041 GE Oven Safety Valve and Regulator Assembly
218WB13K21 GE Oven Igniter with 7 Leads
218WB13X25261 GE Oven Igniter Glowbar
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
268GEN WB35K10047
269GEN WB35K10048
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294WB63K10054 GE Terminal Cover
711GEN WB03K10209
