JGB928TEK3WW GAS & BURNER PARTS

JGB928TEK3WW GAS & BURNER PARTS

Written by

in

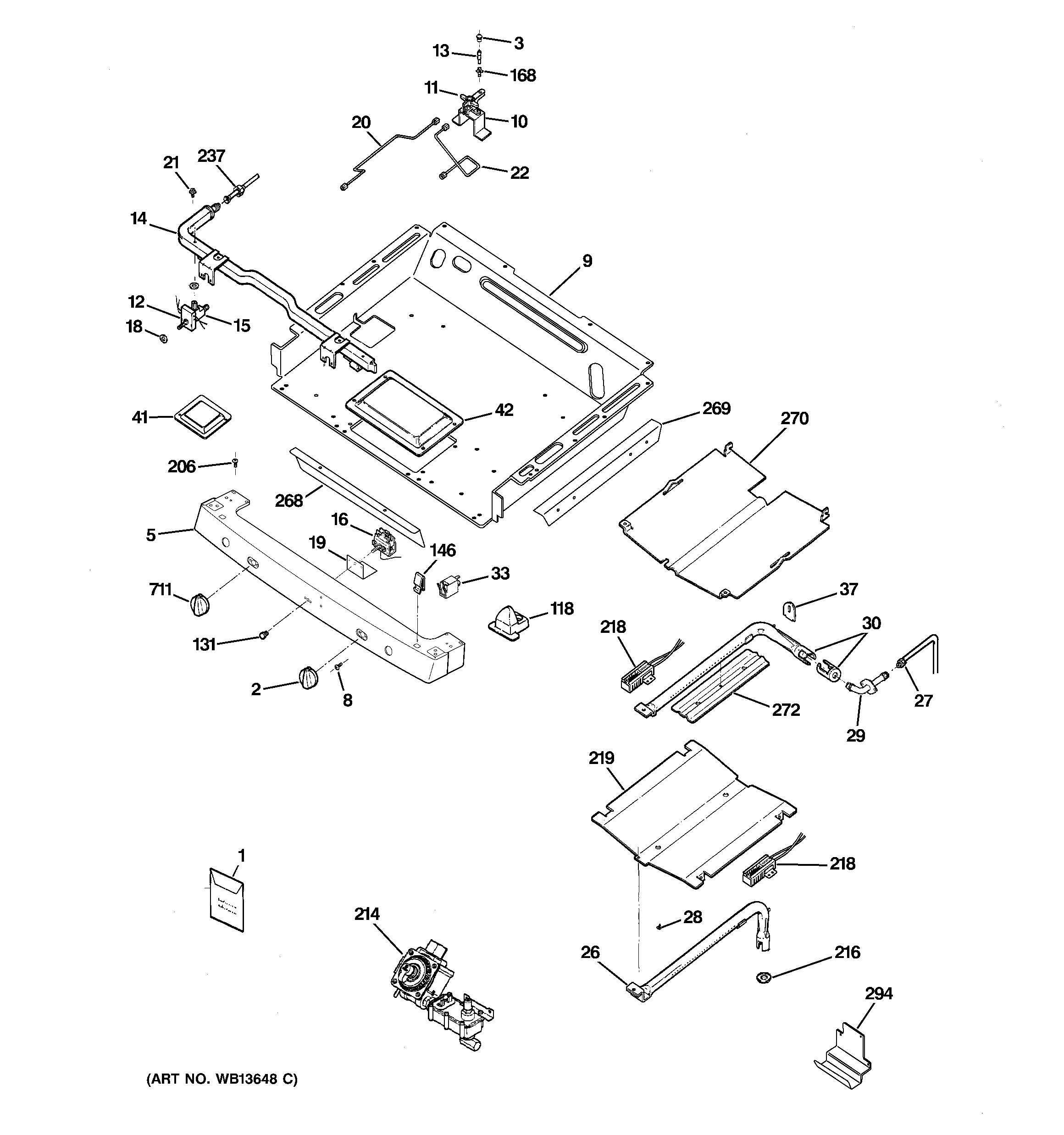

JGB928TEK3WW GAS & BURNER PARTS

Products

PositionProduct
1GEN 49-85078
1GEN 31-21187
1GEN WB28K10177
1PM10X310 GE Cerama Bryte Cooktop Cleaner
2GEN WB03K10137
3GEN WB28K10146
3GEN WB28K10151
3GEN WB28K10150
3GEN WB28K10152
3GEN WB28K10145
3GEN WB28K10147
3GEN WB28K10148
5GEN WB36K10543
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10057
10GEN WB02K10035
11BURNER HOLDER BKT SMALL
11ORIFICE HOLDER BKT LARGE
11GEN WB28K10142
11GEN WB28K10149
12GEN WB24K10027
12GEN WB24K10002
13GEN WB13K10012
14GEN WB28K10294
15GEN WB28K10098
15GEN WB21K10012
15GEN WB28K10096
15GEN WB28K10097
16WB20K10017 GE Oven Thermostat
18WB2K24 GE Oven Valve Cover
19WB37K10012 GE Thermostat Cover
20GEN WB28K10139
20GEN WB28K10140
21WB1K83 GE Oven Screw
22GEN WB28K10138
22GEN WB28K10137
26GEN WB16K10054
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10308
30GEN WB16K10004
33WB25K10010 GE Oven Light Indicator Pilot
37WB34K14 GE Igniter Cover
41WB63K10063 GE Burner Box Cover
42GEN WB63K0022
118GEN WB14K10005
131WB25K10009 GE Oven Lens
146GEN WB02K0052
168WB01K10112 GE Range Oven Electrode Clip
206WR01X10065 GE Screw
214WB19K10041 GE Oven Safety Valve and Regulator Assembly
216GEN WB01K0006
218WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
268GEN WB35K10047
269GEN WB35K10048
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294WB63K10054 GE Terminal Cover
711GEN WB03K10196
