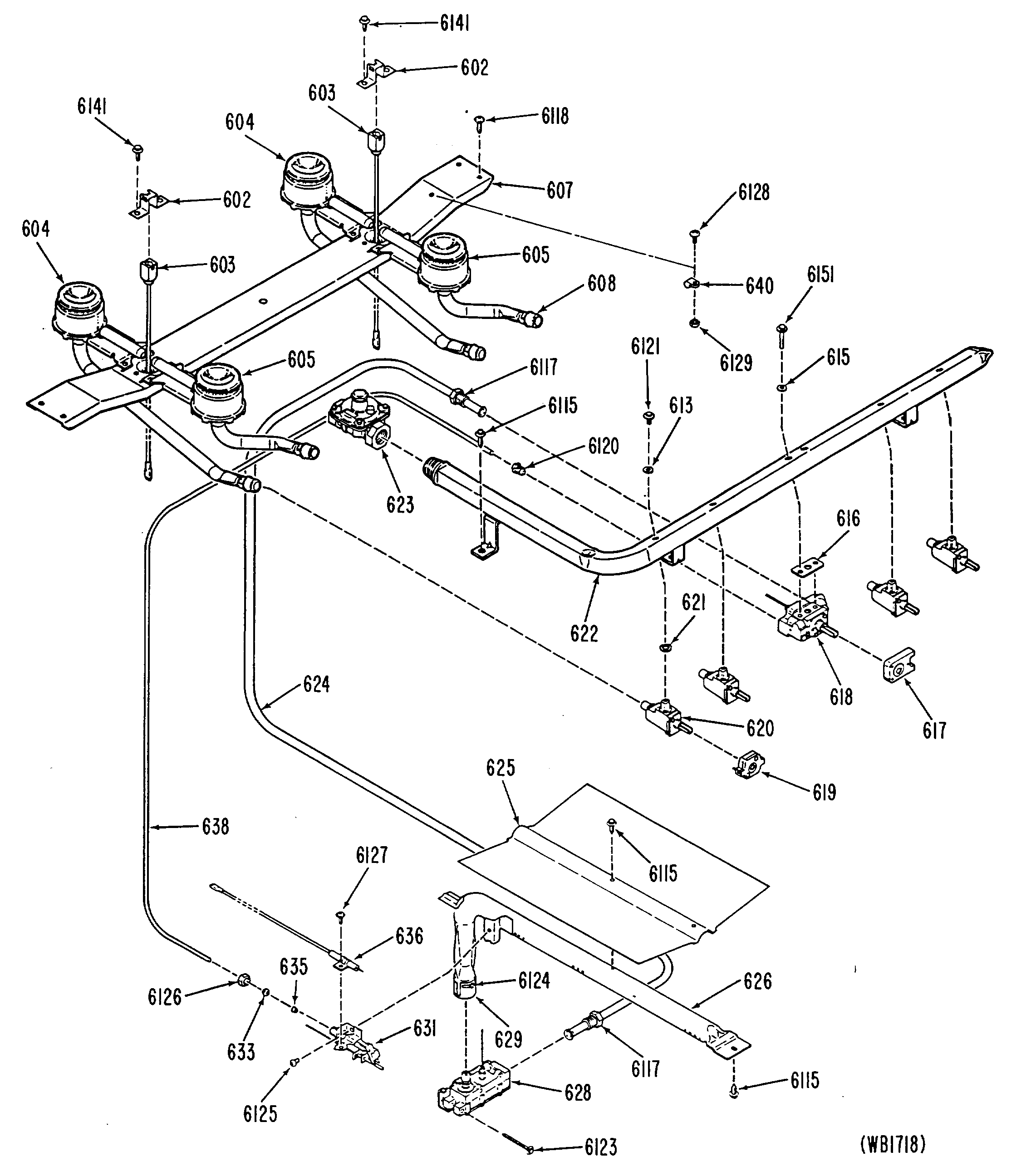

Position	Product
602	IGNITER BRACKET
603	GEN WB02X9004
603	SPARK IGN ELECTRODE RT
604	TOP BURNER ASM-REAR
607	TOP BURNER SUPPORT
608	GEN WB02X9739
613	VALVE SCREW GASKET
615	THERMOSTAT SCREW GASKET
616	THERMOSTAT GASKET
617	THERMOSTAT SWITCH
618	OVEN THERMOSTAT
619	VALVE SWITCH
620	VALVE-TOP BURNER
621	VALVE GASKET
622	MANIFOLD PIPE ASM
623	GEN WB21X0465
624	TUBE 3/8 W/NUT
625	OV BURN BAFFLE
626	GEN WB28X0083
628	GEN WB21X0470
629	AIR SHUTTER-OVEN
631	PILOT W/CUP
633	3/16 TUBING SLEEVE
635	GEN WB02X9017
636	OVEN SPARK IGN ELECTRODE
638	3/16 TUBE
640	GEN WB02X9161
6115	WB1M1 GE Oven Screw
6117	NUT
6118	WB1X1118 GE Oven Screw 6-32T
6120	HEX NUT
6121	GEN WB01X1121
6123	GEN WB01X1123
6124	AIR SHUTTER SCREW-OVEN
6125	GEN WB01X1125
6126	TUBING NUT 3/16
6127	WB1X681 GE Oven Screw
6128	GEN WB01X1128
6129	GEN WB01X1129
6141	WB1X1141 GE Oven Screw 8-32
6151	GEN WB01X1151
